Accessories

Complement your US Digital encoder or inclinometer design with our wide selection of high-quality, fully compatible accessories, including cables, connectors, digital encoder displays, hardware, interfaces, motor drivers, and power supplies.

FILTER BY ACCESSORIES TYPE...

Cables

Standard, latching, locking, micro, modular, unterminated, adapter, CAN, and USB.

Connectors

Standard, latching, micro, modular, round, multiple pin configurations.

Digital Displays

Field-programmable models featuring crisp, half-inch high digits displayed for easy reading against a contrasting blue backlight.

Hardware

Wrenches, drivers, spacers, and centering tools for easy, accurate installations. Also, precision-machined screws for quality fit and stable performance.

Interfaces

Dozens of choices, including ICs, to support your US Digital encoder and inclinometer designs.

Motor Drivers

Programmable stepper motor drivers available in a wide range of resolutions; housed in durable, black-anodized aluminum.

Power Supplies

High-quality regulated switching supplies.

Showing All Accessories

CA-C5-SH-C5 5-Pin Standard Connector / 5-Pin Standard Connector, Shielded Cable

5-pin female standard (friction, not latching) right-angle connectors on both ends of a 5-conductor round shielded 24 AWG cable....

More CA-C5-SH-C5 Details

CA-C5-SH-FC5 5-Pin Standard Connector / 5-Pin Latching Connector, Shielded Cable

A 5-pin female standard (friction, not latching) connector connected to a 5-pin female polarized latching connector via a 5-conductor round shielded 24 AWG cable....

More CA-C5-SH-FC5 Details

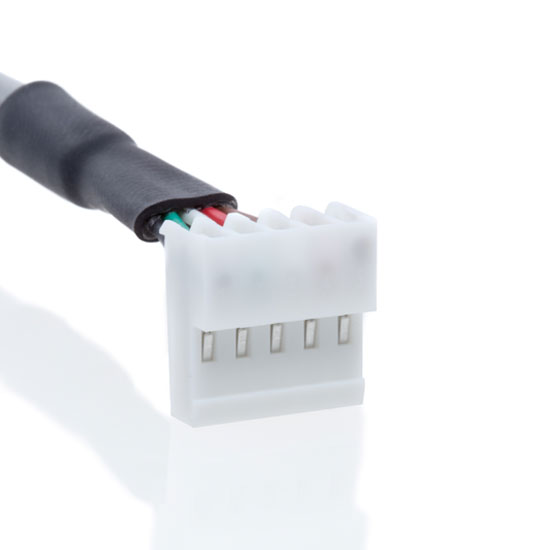

CA-C5-SH-NC 5-Pin Standard Connector / Unterminated, Shielded Cable

5-pin female standard (friction, not latching) right-angle connector on one end of a 5-conductor round shielded 24 AWG cable; the other end is unterminated. This cable is...

More CA-C5-SH-NC Details

CA-C5-W4-NC 5-Pin Standard Connector / Unterminated, 4-Wire Discrete Cable

5-pin female standard (friction, not latching) right-angle connector on one end of four individual discrete 22 AWG wires. Please note: There is no wire at pin 2; this cable is...

More CA-C5-W4-NC Details

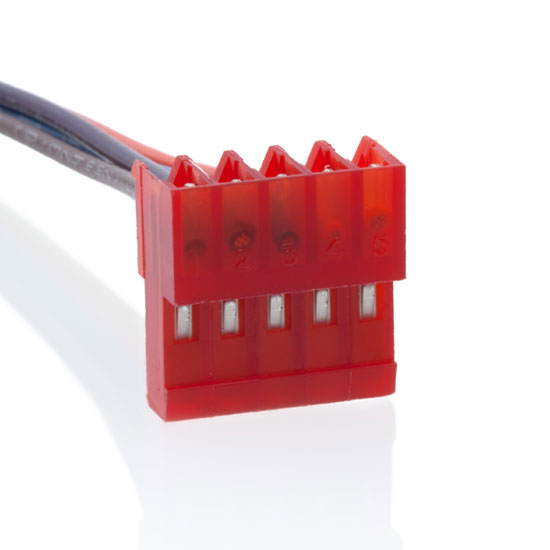

CA-C5-W5-NC 5-Pin Standard Connector / Unterminated, 5-Wire Discrete Cable

A 5-pin female standard (friction, not latching) right-angle connector on one end of five individual discrete 22 AWG wires....

More CA-C5-W5-NC Details

CA-C10-F-C10 10-Pin IDC Connector / 10-Pin IDC Connector, Flat Cable

10-pin insulation displacement female connectors (IDC) on both ends of a 10-wire flat 28 AWG ribbon cable. This cable is primarily used with Avago/Agilent direct...

More CA-C10-F-C10 Details

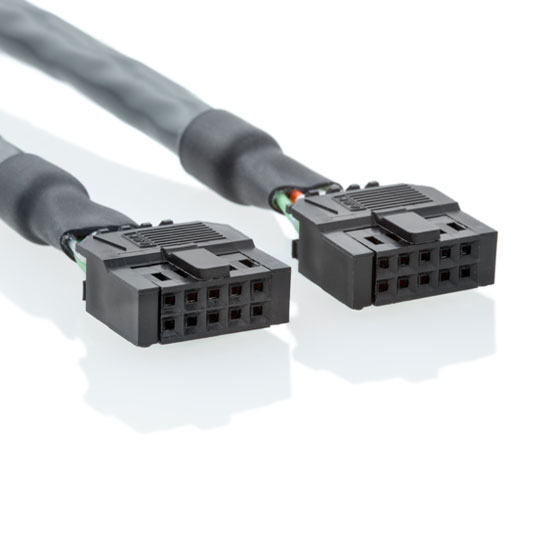

CA-C10-SH-C10 10-Pin Standard Connector / 10-Pin Standard Connector, Shielded Cable

10-pin female standard (friction, not latching) connectors on both ends of an 8-conductor round shielded twisted pair 24 AWG cable....

More CA-C10-SH-C10 Details

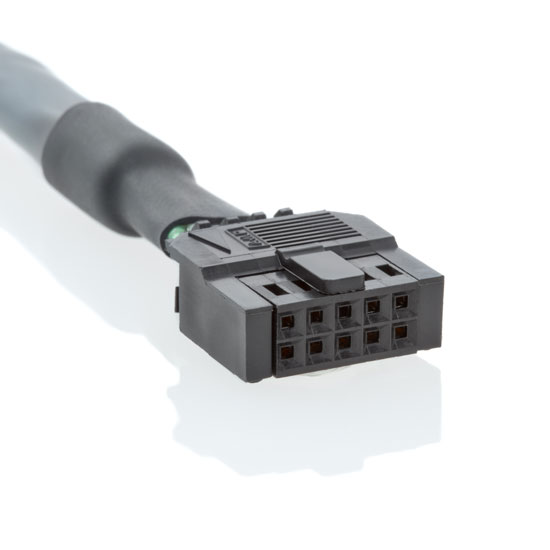

CA-C10-SH-NC 10-Pin Standard Connector / Unterminated, Shielded Cable

The CA-C10-SH-NC cable has a 10-pin female standard (non-latching) connector on one end of an 8-conductor round shielded twisted pair 24 AWG cable; the other end is...

More CA-C10-SH-NC Details

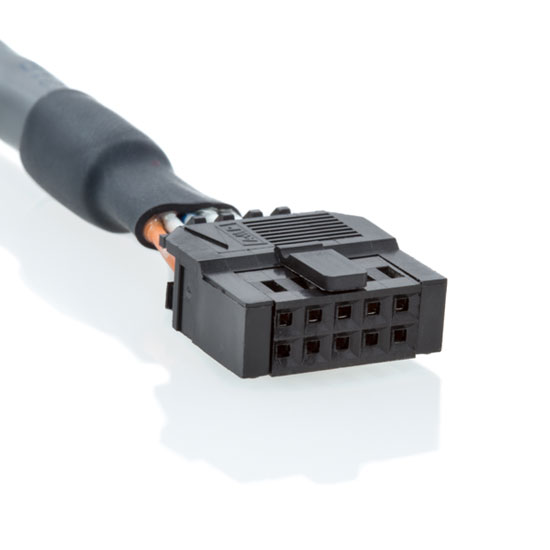

CA-C10L-SH-NC 10-Pin Standard Connector / Unterminated, Shielded Cable (Avago Pin-Out)

A 10-pin female standard connector on one end of an 8-conductor round shielded twisted pair 24 AWG cable. This cable is primarily used with Avago/Agilent direct replacements...

More CA-C10L-SH-NC Details

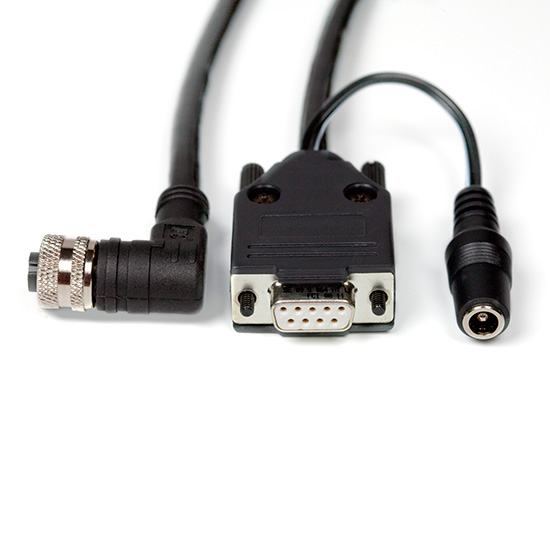

CA-CFR-PS-DB9P T7-232 Power and Serial Communication Cable

This cable connects the 5-pin J1 connector of a T7 Networked Absolute Inclinometer (RS232 interface) to a standard PC's DB9 RS-232 serial COM port. The power connector is used...

More CA-CFR-PS-DB9P Details

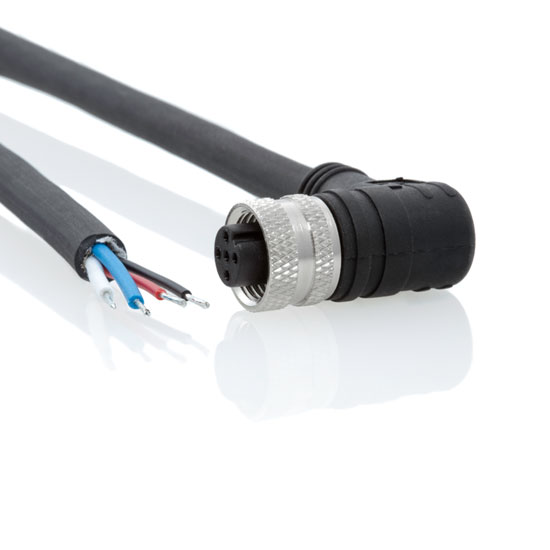

CA-CFR-PS-NC T7 PUR Shielded Cable with Leads

This PUR (polyurethane) shielded cable has a T7 right angle connector at one end and unterminated wires at the other end. This cable is used with the RS232 or RS485 versions of...

More CA-CFR-PS-NC Details

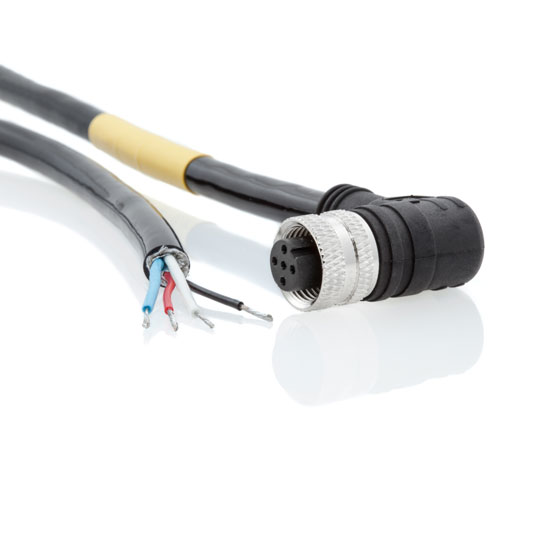

CA-CFTR-PS-NC T7 PUR Shielded Cable with Leads and Terminating Resistor

This PUR (polyurethane) shielded cable has a T7 right angle connector at one end and unterminated wires at the other end. The cable has a built-in 120-ohm terminating resistor...

More CA-CFTR-PS-NC Details

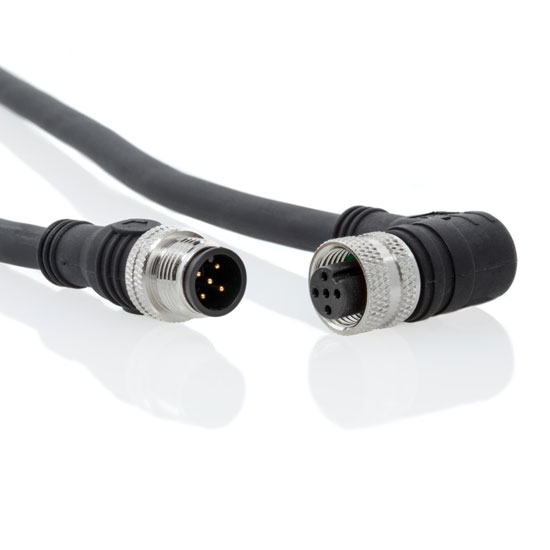

CA-CM-PS-CFR T7 PUR Shielded Cable

This shielded PUR (polyurethane) cable has a T7 straight connector and a right-angle connector at the other end. You can use this cable with the CON-CAN-MFF splitter to create...

More CA-CM-PS-CFR Details

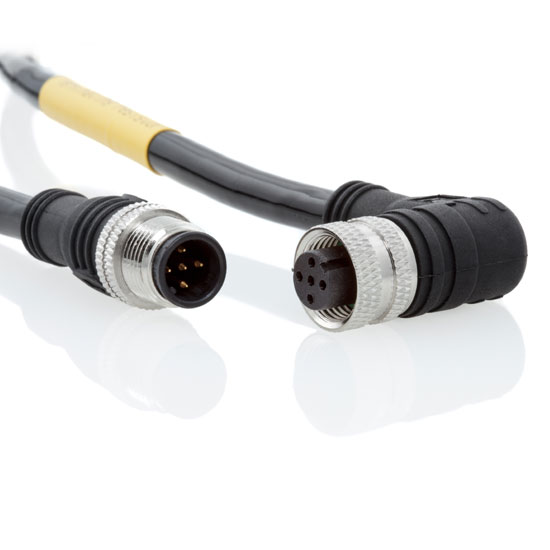

CA-CM-PS-CFTR T7 PUR Shielded Cable with Terminating Resistor

This shielded PUR (polyurethane) cable has a T7 straight connector at one end and a right-angle connector at the other end. The cable has a built-in 120-ohm terminating resistor...

More CA-CM-PS-CFTR Details

CA-DF5-SH-NC 5-Pin DF52 Connector / Unterminated, Shielded Cable

A 5-pin Hirose DF52 series, 0.8mm pitch plug connector on one end of a 5-conductor round shielded 30 AWG cable. This cable has a temperature range of -40C to 105C....

More CA-DF5-SH-NC Details

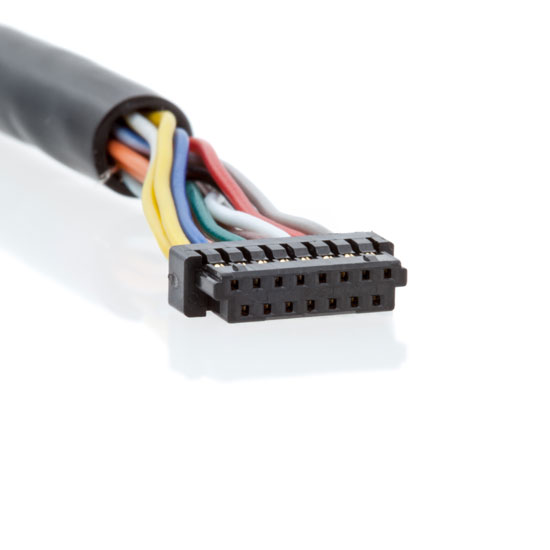

CA-E15-SH-NC 15-Pin Connector / Unterminated, Shielded Cable

A 15-pin standard cable, 28 AWG.

More CA-E15-SH-NC Details

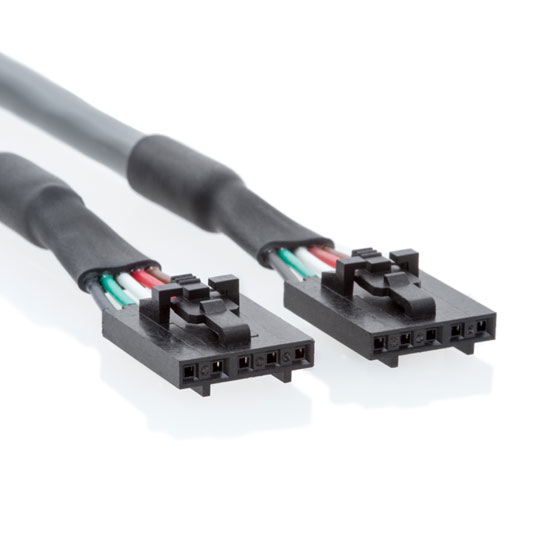

CA-FC5-SH-FC5 5-Pin Latching Connector / 5-Pin Latching Connector, Shielded Cable

5-pin female polarized latching connector on both ends of a 5-conductor round shielded 24 AWG cable....

More CA-FC5-SH-FC5 Details

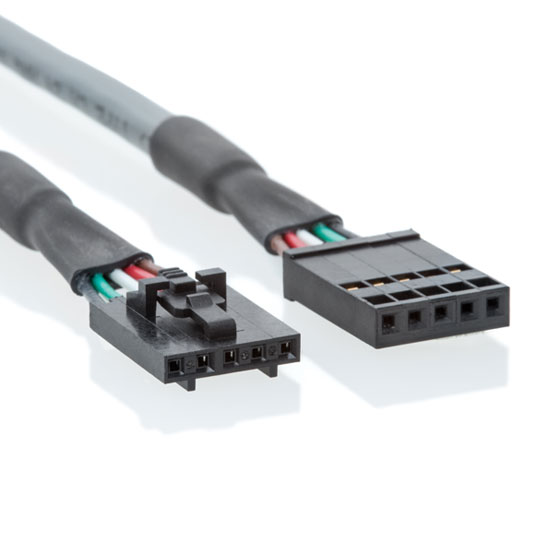

CA-FC5-SH-LC5 5-Pin Latching Connector / 5-Pin High-Retention Connector, Shielded Cable

A 5-pin female polarized latching connector connected to a 5-pin female high-retention connector via a 5-conductor round shielded 24 AWG cable. The high-retention connector is...

More CA-FC5-SH-LC5 Details

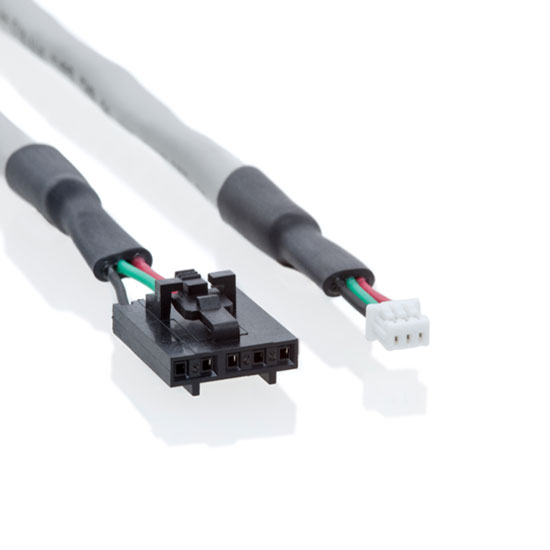

CA-FC5-SH-MIC3 5-Pin Latching Connector / 3-Pin Micro Connector, Shielded Cable

This cable consists of a 5-pin latching connector on one end of a shielded cable and a 3-pin micro connector on the other end. This cable is used to connect the PWM output...

More CA-FC5-SH-MIC3 Details

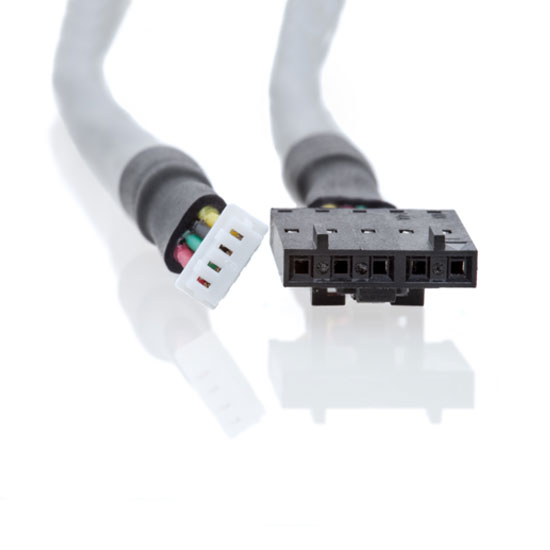

CA-FC5-SH-MIC4 5-Pin Latching Connector / 4-Pin Micro Connector, Shielded Cable

This cable consists of a 5-pin latching connector on one end of a shielded cable and a 4-pin micro-connector on the other end. This cable is used with several different products...

More CA-FC5-SH-MIC4 Details

CA-FC5-SH-NC 5-Pin Latching Connector / Unterminated, Shielded Cable

A 5-pin female polarized latching connector on one end of a 5-conductor round shielded 24 AWG cable....

More CA-FC5-SH-NC Details

CA-FC5-SH-RC7 5-Pin Latching Connector / 7-Pin MIL-C-5015 Connector, Shielded Cable

This shielded cable connects to US Digital's HD25 Industrial Rugged Metal Optical Encoder via a circular 7-pin screw-on connector, and it has a 5-pin latching connector on the...

More CA-FC5-SH-RC7 Details

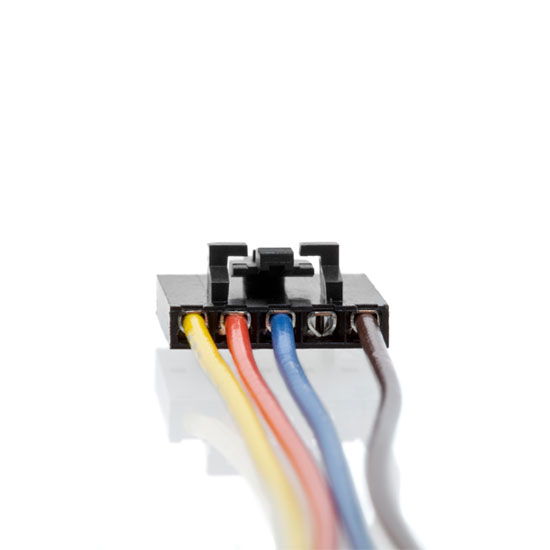

CA-FC5-W4-NC 5-Pin Latching Connector / Unterminated, 4-Wire Discrete Cable

The CA-FC5-W4-NC discrete wire encoder cable has a 5-pin female polarized latching connector on one end of four individual discrete 22 AWG wires; the other end is unterminated....

More CA-FC5-W4-NC Details

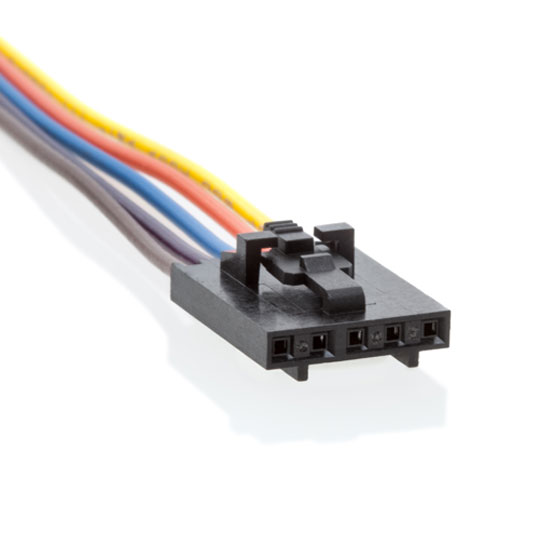

CA-FC5-W5-NC 5-Pin Latching Connector / Unterminated, 5-Wire Discrete Cable

A 5-pin female polarized latching connector on one end of five individual discrete 22 AWG wires....

More CA-FC5-W5-NC Details

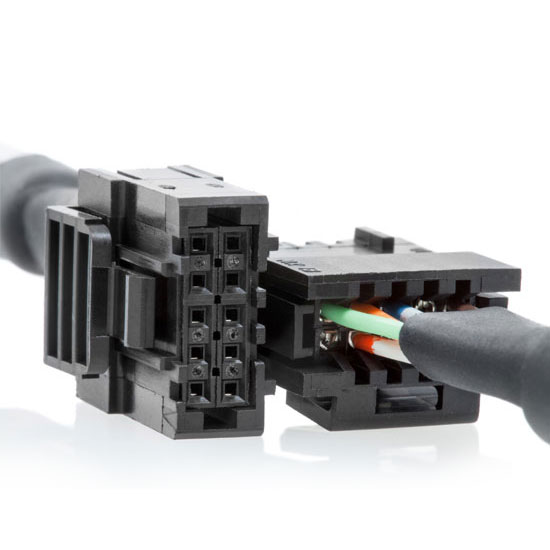

US Digital CA-FC10-SH-FC10 Product Photo

CA-FC10-SH-FC10 10-Pin Latching Connector / 10-Pin Latching Connector, Shielded Cable

10-pin female latching connectors on both ends of an 8-conductor round shielded twisted pair 24 AWG cable....

More CA-FC10-SH-FC10 Details

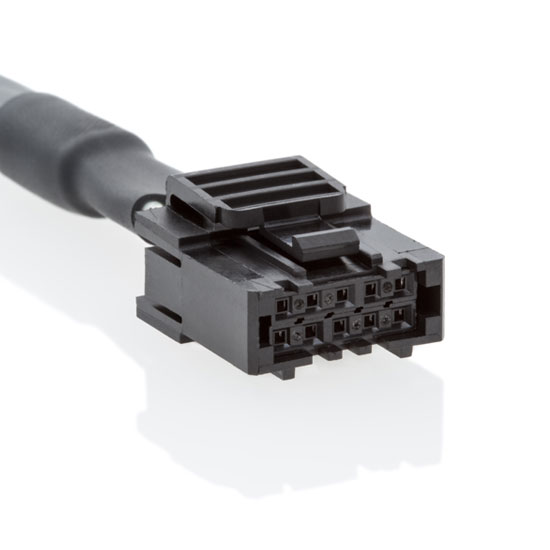

CA-FC10-SH-NC 10-Pin Latching Connector / Unterminated, Shielded Cable

A 10-pin female latching connector on one end of an 8-conductor round shielded twisted pair 24 AWG cable....

More CA-FC10-SH-NC Details

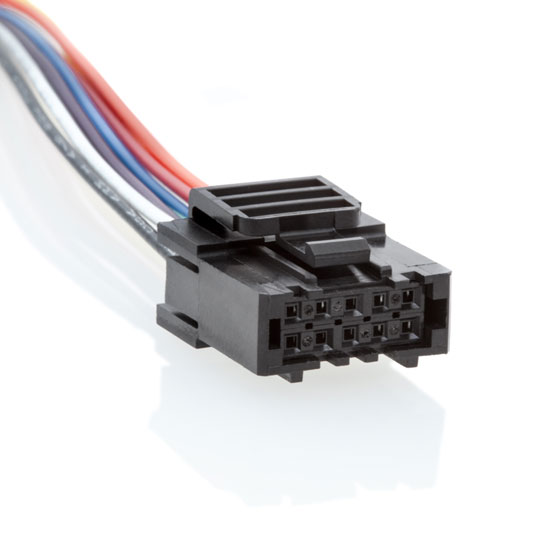

CA-FC10-W8-NC 10-Pin Latching Connector / Unterminated, 8-Wire Discrete Cable

A 10-pin female polarized latching connector on one end of eight individual discrete 22 AWG wires....

More CA-FC10-W8-NC Details

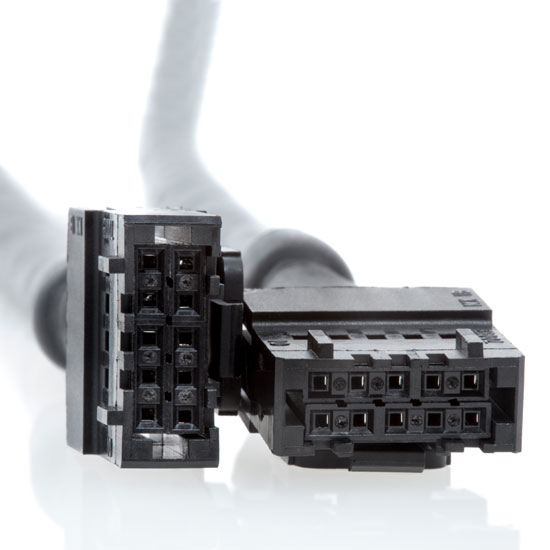

US Digital CA-FC10L-SH-FC10L Product Photo

CA-FC10L-SH-FC10L 10-Pin Latching Connector / 10-Pin Latching Connector, Shielded Cable (Avago Pin-Out)

10-pin female polarized latching connectors on both ends with an 8-conductor round shielded twisted pair 24 AWG cable. This cable is primarily used with Avago/Agilent direct...

More CA-FC10L-SH-FC10L Details

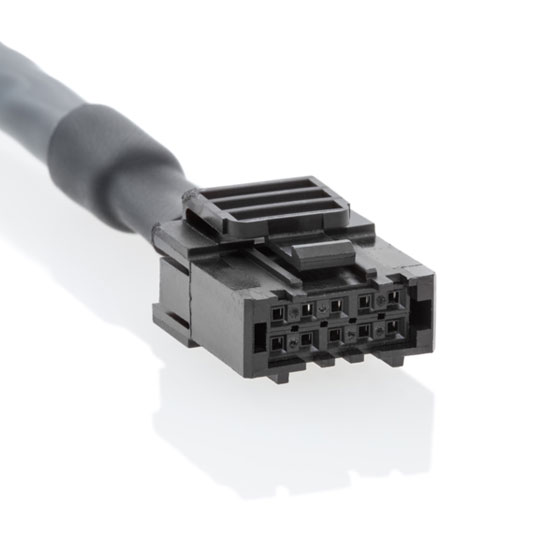

CA-FC10L-SH-NC 10-Pin Latching Connector / Unterminated, Shielded Cable (Avago Pin-Out)

A 10-pin female polarized latching connector on one end of an 8-conductor round shielded twisted pair 24 AWG cable. This cable is primarily used with Avago/Agilent direct...

More CA-FC10L-SH-NC Details

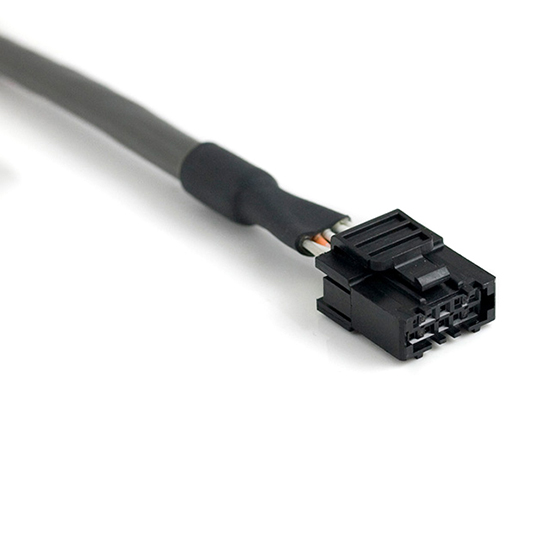

CA-FC10P-SH-NC 10-Pin Latching Connector / Unterminated, Shielded Cable (QSB-D QSB-M Pin-Out)

A 10-pin female polarized latching connector on one end of a 10-conductor round shielded twisted pair 24 AWG cable. Please note: This cable is intended for use with the digital...

More CA-FC10P-SH-NC Details

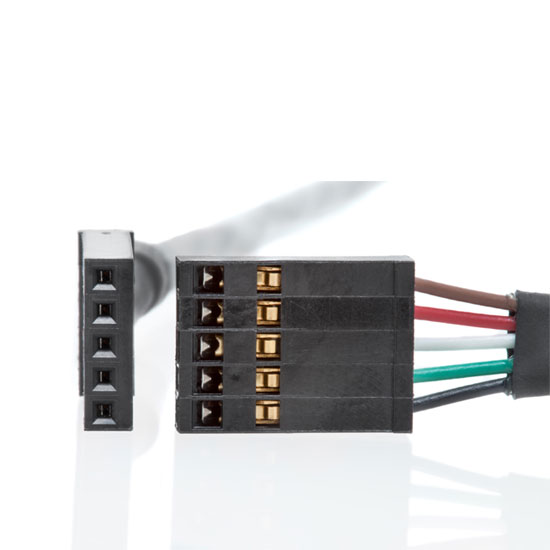

CA-LC5-SH-LC5 5-Pin High-Retention Connector / 5-Pin High-Retention Connector, Shielded Cable

5-pin female high-retention connectors on both ends of a 5-conductor round shielded 24 AWG cable....

More CA-LC5-SH-LC5 Details

CA-LC5-SH-NC 5-Pin High-Retention Connector / Unterminated, Shielded Cable

A 5-pin female high-retention connector on one end of a 5-conductor round shielded 24 AWG cable....

More CA-LC5-SH-NC Details

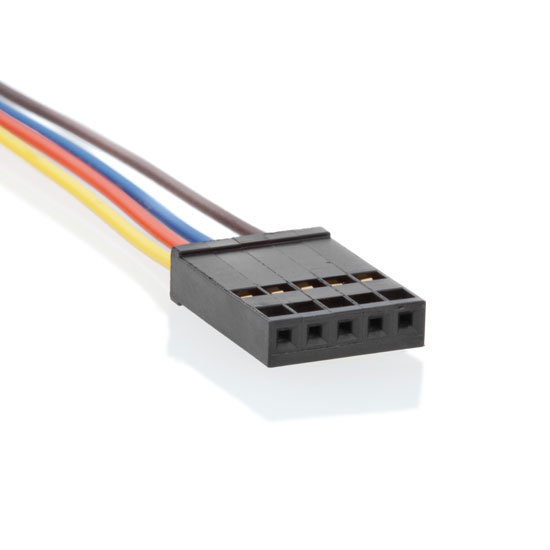

CA-LC5-W4-NC 5-Pin High-Retention Connector / Unterminated, 4-Wire Discrete Cable

A 5-pin female high-retention connector on one end of four individual discrete 22 AWG wires....

More CA-LC5-W4-NC Details

CA-LC5-W5-NC 5-Pin High-Retention Connector / Unterminated, 5-Wire Discrete Cable

A 5-pin high-retention connector on one end of five individual discrete 22 AWG wires....

More CA-LC5-W5-NC Details

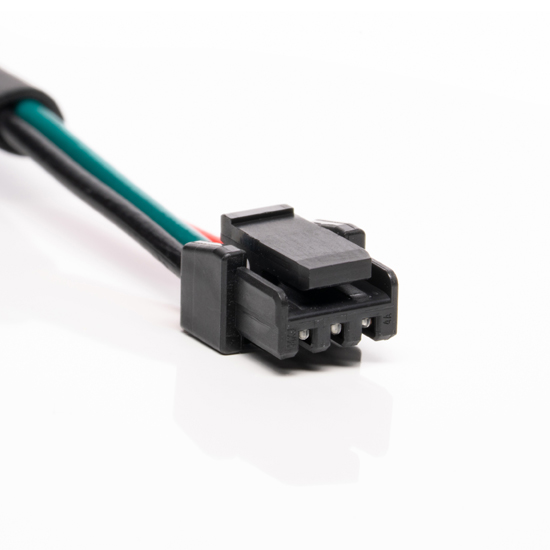

CA-MCL3-SH-NC 3-Pin Micro-Lock Plus Connector / Unterminated, Shielded Cable

A shielded 26 AWG round cable with a 3-pin Molex Micro-Lock Plus connector on one end. Connector housing: Molex# 5055650301 Connector individual crimp-on pins: Molex#...

More CA-MCL3-SH-NC Details

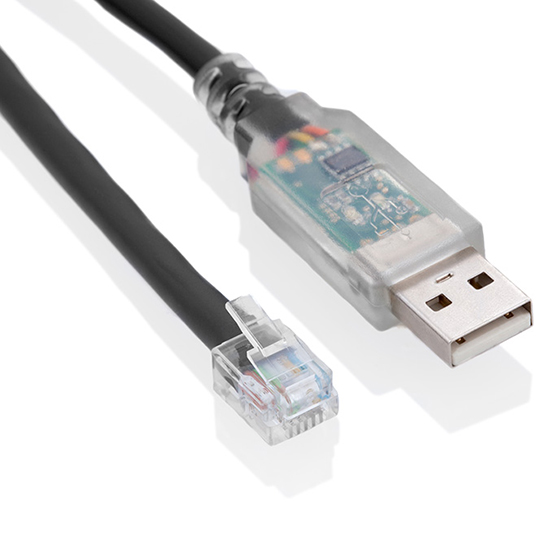

CA-MD3 USB to RS485 Adapter Cable for MD3

The CA-MD3 is an interface cable that connects a PC's USB port to an RS485 interface. The RS485 connector is a 6-pin RJ25 modular connector, and designed for US Digital's MD3...

More CA-MD3 Details

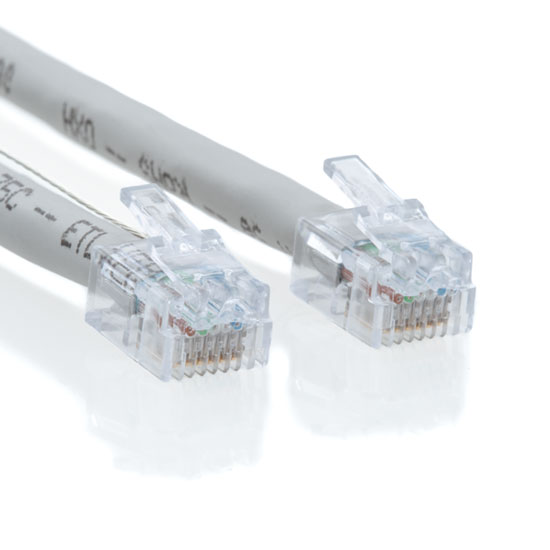

CA-MD6-SH-MD6 6-Pin Modular Connector / 6-Pin Modular Connector, Shielded Cable

6-pin modular connectors on both ends of an 8-conductor shielded round twisted pair 26 AWG cable....

More CA-MD6-SH-MD6 Details

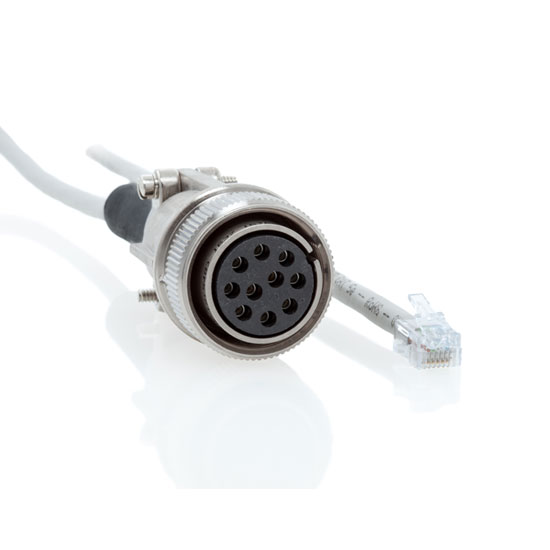

CA-MD6-SH-RC10 6-Pin Modular Connector / 10-Pin MIL-C-5015 Connector, Shielded Cable

A 10-pin MIL-C-5015 female connector connected to a 6-pin modular connector via an 8 conductor shielded round twisted pair 26 AWG cable....

More CA-MD6-SH-RC10 Details

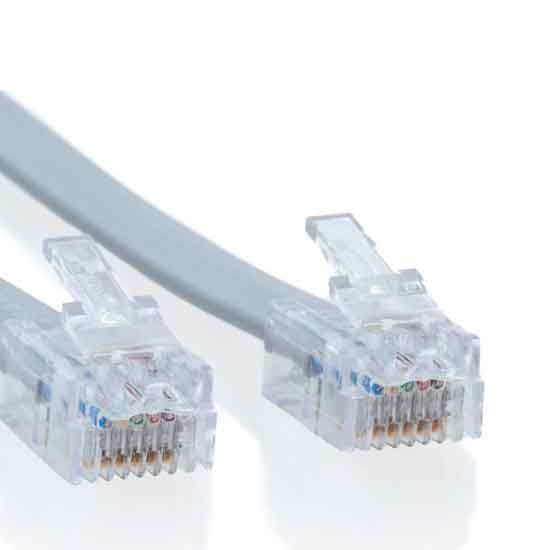

CA-MD6-SS-MD6 6-Pin Modular Connector / 6-Pin Modular Connector, Unshielded Cable

A 6-pin modular connector on both ends of an unshielded silver satin 28 AWG cable....

More CA-MD6-SS-MD6 Details

CA-MD6A-SS-MD6 6-Pin Modular Connector / 6-Pin Modular Connector, Unshielded Cable (A2 Analog)

6-pin modular connectors on both ends of an unshielded silver satin 28 AWG cable. This cable is intended for connecting a single analog output A2 version of US Digital's A2...

More CA-MD6A-SS-MD6 Details

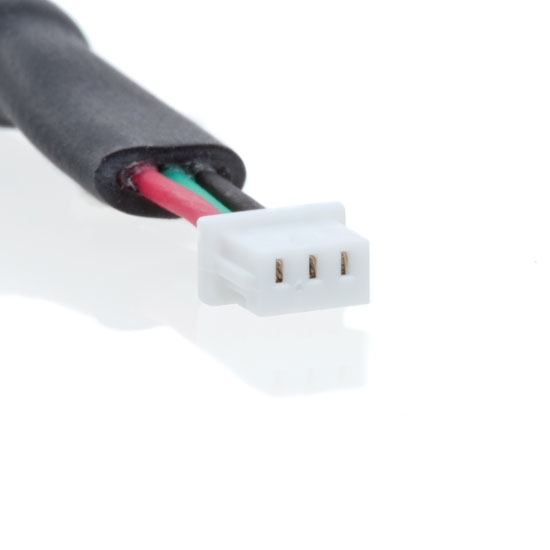

CA-MIC3-SH-NC 3-Pin Micro Connector / Unterminated, Shielded Cable

A 3-pin micro mating connector on one end of a 4-conductor shielded round 26 AWG cable....

More CA-MIC3-SH-NC Details

CA-MIC3-W3-NC 3-Pin Micro Connector / Unterminated, 3-Wire Discrete Cable

A 3-pin micro mating connector on one end of three individual discrete 26 AWG wires....

More CA-MIC3-W3-NC Details

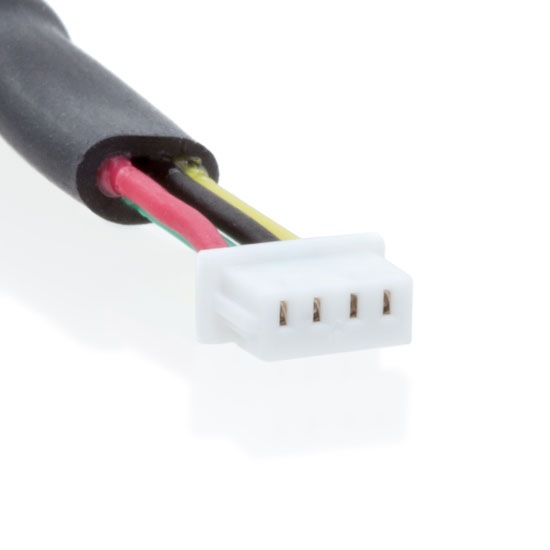

CA-MIC4-SH-NC 4-Pin Micro Connector / Unterminated, Shielded Cable

A 4-pin micro mating connector on one end of a four-conductor round twisted pair 26 AWG cable....

More CA-MIC4-SH-NC Details

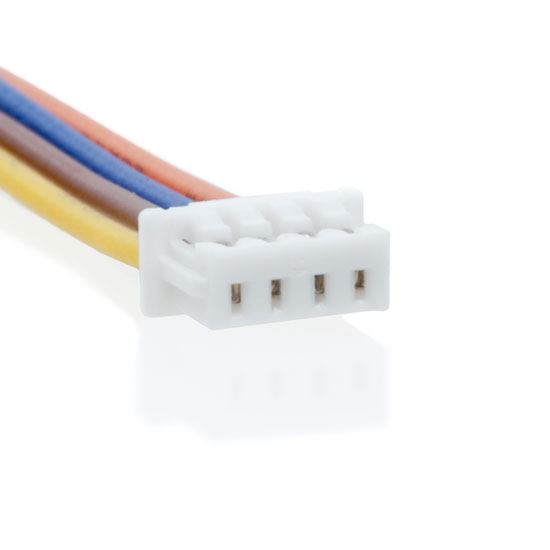

CA-MIC4-W4-NC 4-Pin Micro Connector / Unterminated, 4-Wire Discrete Cable

A 4-pin micro mating connector on one end of four individual discrete 26 AWG wires....

More CA-MIC4-W4-NC Details

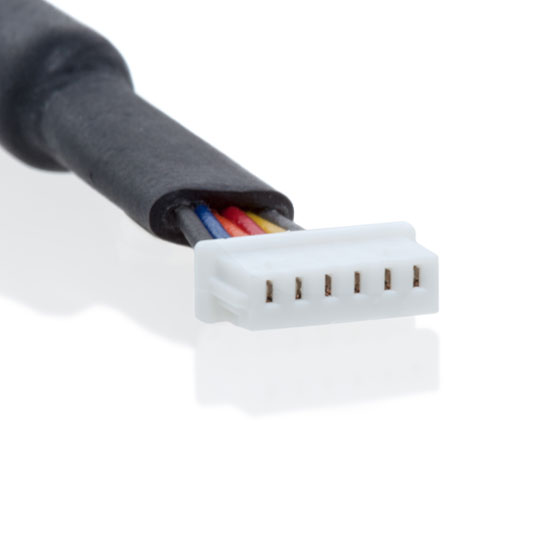

CA-MIC6-SH-NC 6-Pin Micro Connector / Unterminated, Shielded Cable

A 6-pin micro connector on one end of a 6-conductor round twisted pair 26 AWG cable....

More CA-MIC6-SH-NC Details

CA-MIC6-W6-NC 6-Pin Micro Connector / Unterminated, 6-Wire Discrete Cable

A 6-pin micro connector on one end of six individual discrete 26 AWG wires....

More CA-MIC6-W6-NC Details

CA-PCL6-SH-NC 6-Pin Pico-Clasp Connector / Unterminated, Shielded

A 6-pin Molex Pico-Clasp (# 5013300600) series, 1.0mm pitch plug connector on one end of a 6-conductor round shielded 28 AWG cable. This cable has a temperature range of -40C to...

More CA-PCL6-SH-NC Details

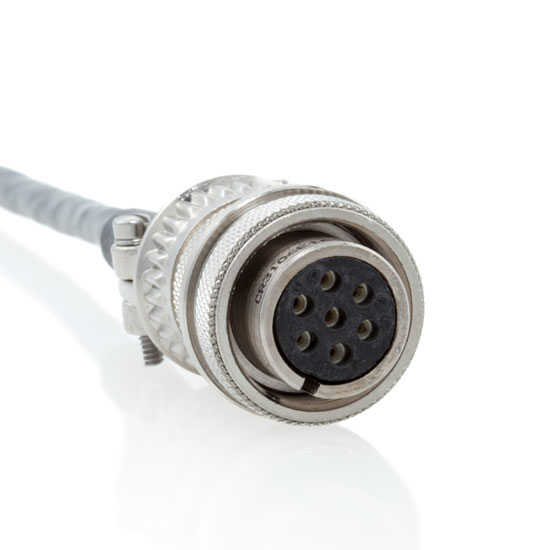

CA-RC7-SH-NC 7-Pin MIL-C-5015 Connector / Unterminated, Shielded Cable

A 7-pin MIL-C-5015 female connector on one end of a 7-conductor shielded round 24 AWG cable. This low-temperature cable (-20C to +80C) is used with US Digital's HD25 Industrial...

More CA-RC7-SH-NC Details

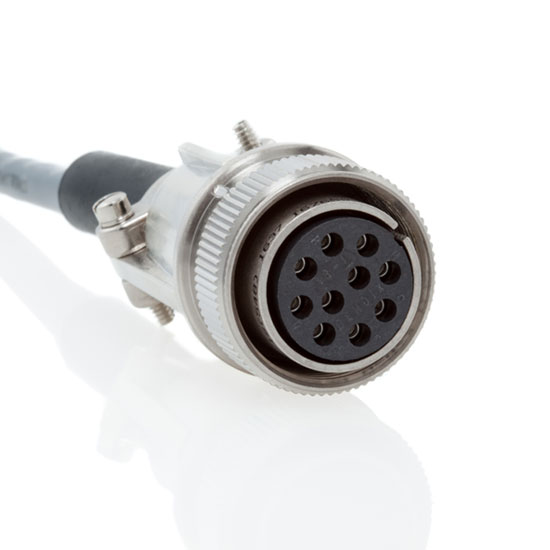

CA-RC10-SH-NC 10-Pin MIL-C-5015 Connector / Unterminated, Shielded Cable

A 10-pin MIL-C-5015 female connector on one end of a 12-conductor shielded round 24 AWG cable. This low-temperature version has a range of -20C to +80C....

More CA-RC10-SH-NC Details

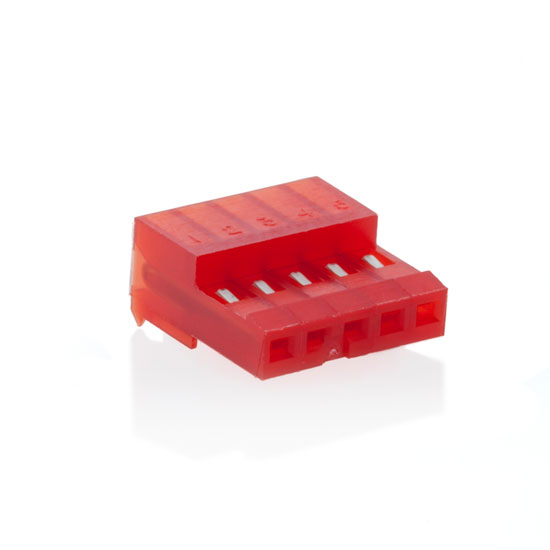

CON-C5 5-Pin Standard Connector

A standard TE Connectivity MTA female connector with five pins for 22-26 AWG wires (Red 22 AWG TE# 3-640440-5, White 24 AWG TE# 3-640441-5, or Blue 26 AWG TE# 3-640442-5)....

More CON-C5 Details

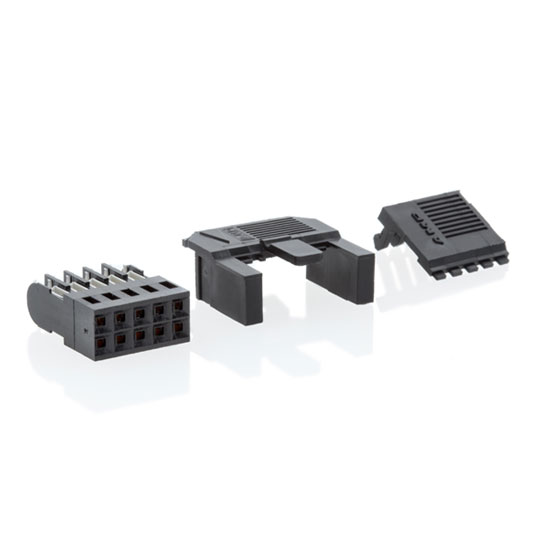

CON-C10 10-Pin Standard Connector

A connector with ten pre-loaded IDC pins (TE# 1-102694-0), a shell with polarizing key (TE# 102537-3), and a back cover (TE# 102536-3) for 22-26 AWG wires....

More CON-C10 Details

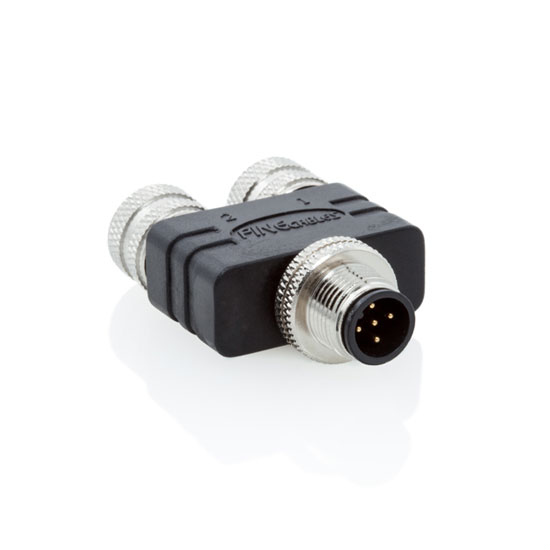

CON-CAN-MFF T7 BUS Splitter - 1M to 2F Connector

A T7 RS232 or RS485 bus splitter, 1M to 2F, sealed against dust....

More CON-CAN-MFF Details

CON-FC5 5-Pin Latching Connector

A Molex polarized latching connector shell and 5-pins for 22-26 AWG wires (22 AWG Molex# 14-56-7052, 24 AWG Molex# 14-60-0052, 26 AWG Molex# 14-60-0054), or 28 AWG Molex#...

More CON-FC5 Details

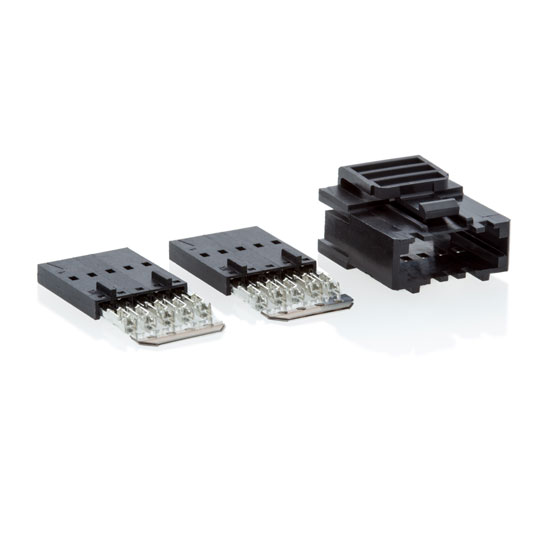

CON-FC10 10-Pin Latching Connector

A polarized latching connector shell (Molex# 15-04-5104) and two IDC 5-pin inserts (Molex# 14-60-0058) for 24 AWG wires. The crimper module is Molex# 62100-0700, the pistol-grip...

More CON-FC10 Details

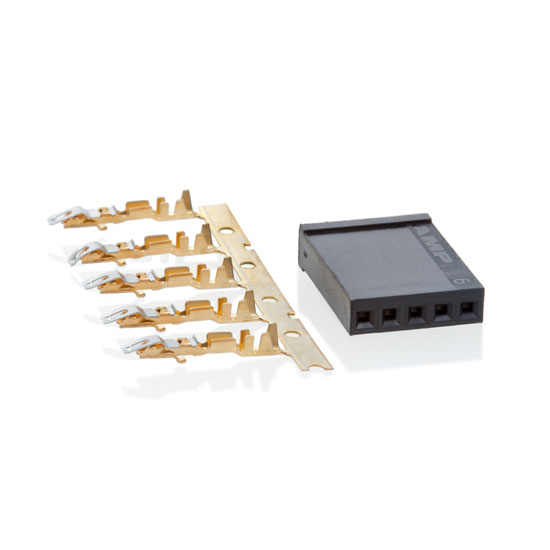

CON-LC5 5-Pin High-Retention Connector

A high-retention connector shell (AMP# 1-87175-2) and 5 pins (AMP# 87165-1) for 22-26 AWG wires....

More CON-LC5 Details

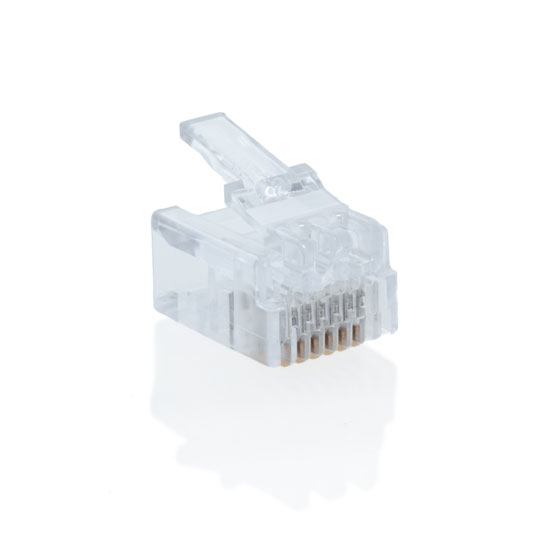

CON-MD6 6-Pin Modular Connectors

6-pin modular connectors for flat or round cables (R Adam Tech# MTPR-66-G) and (F Adam Tech# MTP-66-G)....

More CON-MD6 Details

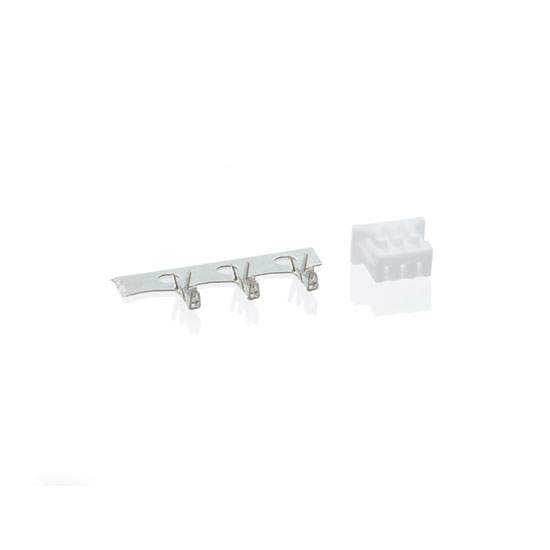

CON-MIC3 3-Pin Micro Connector

A micro mating connector shell (Molex# 51021-0300) and 3 pins for 26-28 AWG wires (Molex# 50079-8100)....

More CON-MIC3 Details

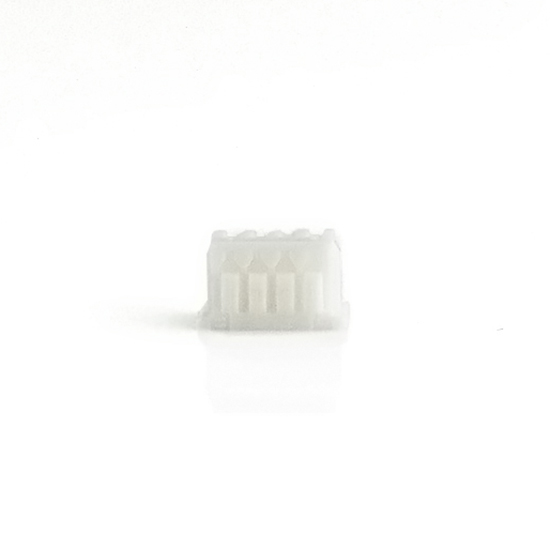

CON-MIC4 4-Pin Micro Connector

A micro mating connector shell (Molex# 51021-0400) and 4 pins for 26-28 AWG wires (Molex # 50079-8100)....

More CON-MIC4 Details

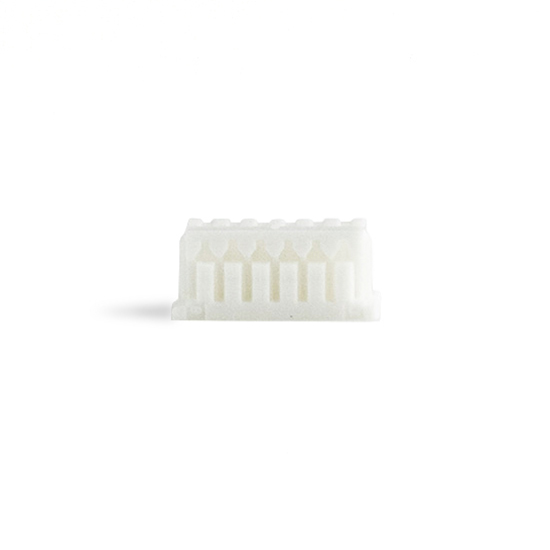

CON-MIC6 6-Pin Micro Connector

A micro mating connector shell (Molex# 51021-0600) and 6 pins for 26-28 AWG wires (Molex # 50079-8100)....

More CON-MIC6 Details

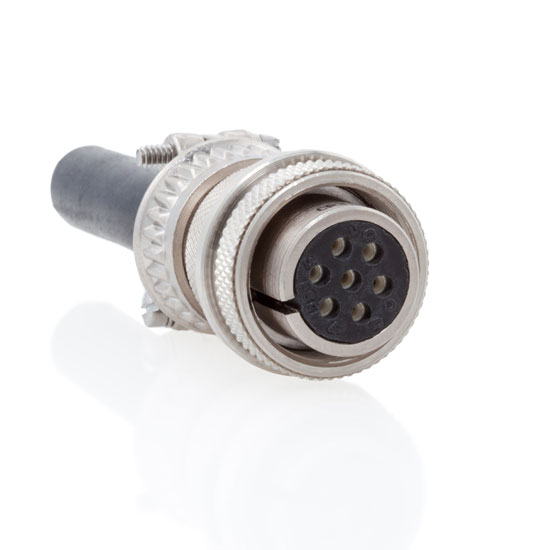

CON-RC7 7-Pin Round Connector

A 7-pin MIL-C-5015 female connector (Amphenol PN MS3106R16S-1S) for 18-24 AWG wire (solder pins)....

More CON-RC7 Details

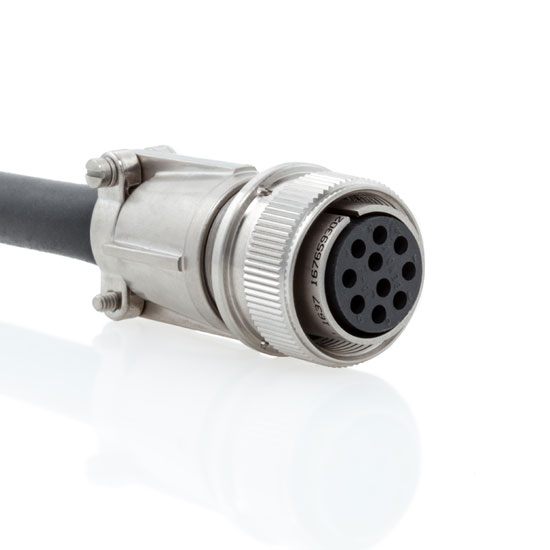

CON-RC10 10-Pin Round Connector

A 10-pin MIL-C-5015 female connector (Amphenol PN MS3106R18-1S) for 18-24 AWG wire (solder pins)....

More CON-RC10 Details

Centering Tool CTOOL & MCTOOL

CTOOL & MCTOOL Product Description During assembly, this reusable tool is designed as a simple method for accurately locating the encoder base relative to the shaft to...

More Centering Tool Details

EA Incremental Encoder Adapter

Single-ended driver or differential driver/receiver available
Three digital channels (A/B/I encoder signals) per adapter
Variety of connector options

More EA Details

ED3 Digital Encoder Display

Seven 0.5 in. high numeric digits with blue backlight
Bidirectional counting, displays signed values from 0.000001 to 9999999
Programmable scale factor for output display
Three LEDs to indicate High, Match, or Low setpoints ...

More ED3 Details

ED4 Digital Encoder Display

Color graphics LCD display with capacitive touchscreen and backlight
Two 32-bit quadrature input channels. Configurable as single ended or differential. Quadrature inputs are 28V tolerant
Two analog encoder inputs (shared with single-ended quadrature connector)
Twp PWM encoder inputs (shared with either single or differential encoder connectors). Up to 12-bit resolution ...

More ED4 Details

HEXD-050 HEX Driver - .050 in.

Hex driver, .050 in. flat-to-flat for #3-48 or #4-48 set screws....

More HEXD-050 Details

HEXW HEX Wrench

Hex wrench. Available in .050 in., .078 in. (5/64 in.) and .094 in. (3/32 in.) flat-to-flat sizes. The .050 in. size is used with #3-48 and #4-48 set screws....

More HEXW Details

LS7082N Encoder to Counter Interface Chip

x1, x2, and x4 mode selection
Index input
TTL and CMOS compatible
Low current (micro-amps) ...

More LS7082N Details

LS7082N-S Encoder to Counter Interface Chip

x1, x2, and x4 mode selection
Index input
TTL and CMOS compatible
Low current (micro-amps) ...

More LS7082N-S Details

LS7083N Encoder to Counter Interface Chip

x1 or x4 resolution multiplication
TTL and CMOS compatible
Low current (micro-amps)
8-pin DIP package ...

More LS7083N Details

LS7083N-S Encoder to Counter Interface Chip

The LSI Computer Systems IC allows incremental shaft encoders to drive standard up/down counters. Connect the encoder quadrature outputs to the A and B inputs. The LS7083N-S...

More LS7083N-S Details

LS7084N Encoder to Counter Interface Chip

x1 or x4 resolution multiplication
TTL and CMOS compatible
Low current (micro-amps)
8-pin DIP package ...

More LS7084N Details

LS7084N-S Encoder to Counter Interface Chip

x1 or x4 resolution multiplication
TTL and CMOS compatible
Low current (micro-amps)
8-pin SOIC package ...

More LS7084N-S Details

LS7166A 24-BIT Quadrature Counter

US Digital is designating end-of-life status for the LSI LS7166A 24-Bit Quadrature Counter effective immediately. We have been informed by LSI Computer Systems that the LS7166A...

More LS7166A Details

LS7166A-S 24-BIT Quadrature Counter

Programmable count modes
DC to 40MHz count frequency
8-bit I/O bus for μP communication and control
24-bit comparator for pre-set count comparison ...

More LS7166A-S Details

LS7183N Encoder to Counter Interface Chip

x1, x2 or x4 resolution multiplication
TTL and CMOS compatible
Low current (micro-amps)
8-pin DIP package ...

More LS7183N Details

LS7183N-S Encoder to Counter Interface Chip

x1, x2 or x4 resolution multiplication
TTL and CMOS compatible
Low current (micro-amps)
8-pin SOIC package ...

More LS7183N-S Details

LS7184N Encoder to Counter Interface Chip

x1, x2 or x4 resolution multiplication
TTL and CMOS compatible
Low current (micro-amps)
8-pin DIP package ...

More LS7184N Details

LS7184N-S Encoder to Counter Interface Chip

x1, x2 or x4 resolution multiplication
TTL and CMOS compatible
Low current (micro-amps)
8-pin SOIC package ...

More LS7184N-S Details

LS7267 24-BIT DUAL-AXIS Quadrature Counter

Dual 24-bit counters to support X and Y axes in motion control applications
Dual 24-bit comparators
Digital filtering of input quadrature clocks
Programmable 8-bit separate filter clock prescalers ...

More LS7267 Details

LS7267-S 24-BIT DUAL-AXIS Quadrature Counter

Dual 24-bit counters to support X and Y axes in motion control applications
Dual 24-bit comparators
Digital filtering of input quadrature clocks
Programmable 8-bit separate filter clock prescalers ...

More LS7267-S Details

LS7366R-S 32-Bit Quadrature Counter with Serial Interface

Operating voltage: 3V to 5.5V (VDD - VSS)
5V count frequency: 40MHz
3V count frequency: 20MHz
32-bit programmable counter ...

More LS7366R-S Details

MD3 Microstepping Motor Driver

8 microstepping resolutions from 2 to 256 microsteps per step
-H option: 0.5 to 7.0 Amps peak phase current
-L option: 0.05 to 1.8 amps peak phase current
Single 9 to 50V supply voltage ...

More MD3 Details

PC3 Encoder Open Collector Cable Driver

The PC3 provides single-ended, open collector outputs and includes a switching power regulator that accepts a power supply from 9.5 to 32 volts. The PC3 is intended for...

More PC3 Details

PC4 Incremental Encoder Cable Driver

The PC4 is a small, plug-in RS-422 cable driver board that drives long cables up to one thousand feet using differential signaling to improve noise immunity. The PC4 can be used...

More PC4 Details

PC5 Broadcom/Avago Compatible Incremental Encoder Cable Driver

Broadcom/Avago HEDL compatible output

More PC5 Details

PS-12 Regulated Switching 12 V (1.5 A) Power Supply

CE Marking: Starting July 22nd, 2014, some US Digital products will contain the CE Marking. The PS-12 will not contain a CE Marking and will not be available for shipping to CE...

More PS-12 Details

QSB Quadrature to USB Adapter

Low-cost, easy-to-use USB (Type A) adapter
QSB-S and QSB-D reads single-ended or differential quadrature, PWM and analog encoders
QSB-M adds four analog and four digital I/O pins and 1 channel stepper motor control to QSB-S
Reads quadrature count rate up to 6 MHz ...

More QSB Details

SCREWS Thread Fasteners

Unified National and Metric fasteners in a multitude of sizes and drive/head styles. Part #: SCREW-080-250-PH (configure)Description: Pan Head, Philips #0-80 UNF x 1/4...

More SCREWS Details

SEI-USB SEI to USB Adapter

USB 1.1 device communicates at 12 Mbit/sec
Compatible with USB 2.0 hubs and host adapters
Supports up to 15 total devices on the SEI bus
Supports SEI bus lengths up to 1,000 feet, depending on the number of devices attached. ...

More SEI-USB Details

SPACER Spacer Tool

This reusable tool is used to provide and maintain the proper spacing between the encoder disk and the encoder base during assembly....

More SPACER Details

USB4 Encoder Data Acquisition USB Device

Real-time tracking of up to 4 incremental encoders with or without index (up to 5 MHz encoder input frequency)
4 channel pulse width, pulse period and RPM measurement
Available with single-ended or differential encoder inputs, optional DIN rail mounting
8 digital outputs, 8 digital inputs, 4 A/D inputs , 4 D/A outputs ...

More USB4 Details
