CA-FC5-SH-MIC3 5-Pin Latching Connector / 3-Pin Micro Connector, Shielded Cable

CA-FC5-SH-MIC3 Product Description

Restriction of Hazardous Substances

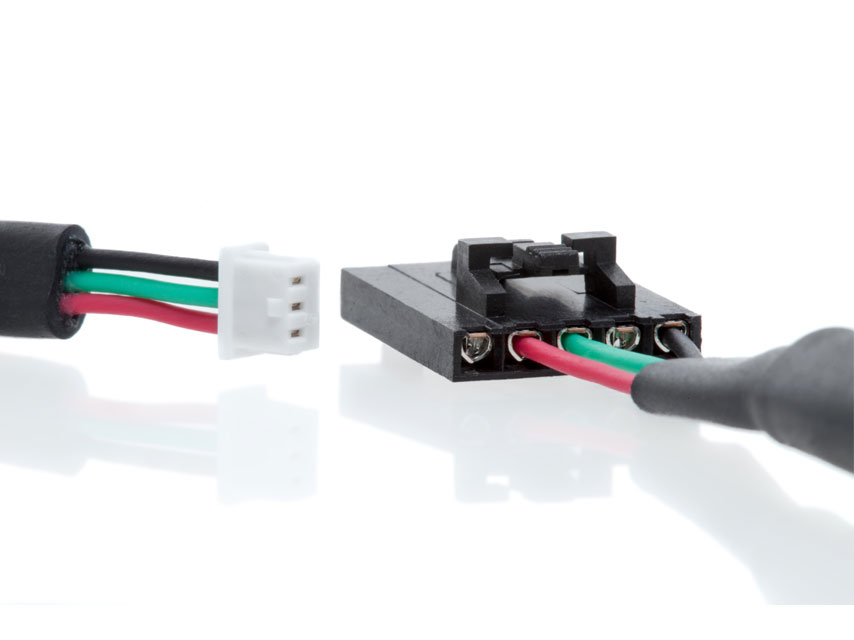

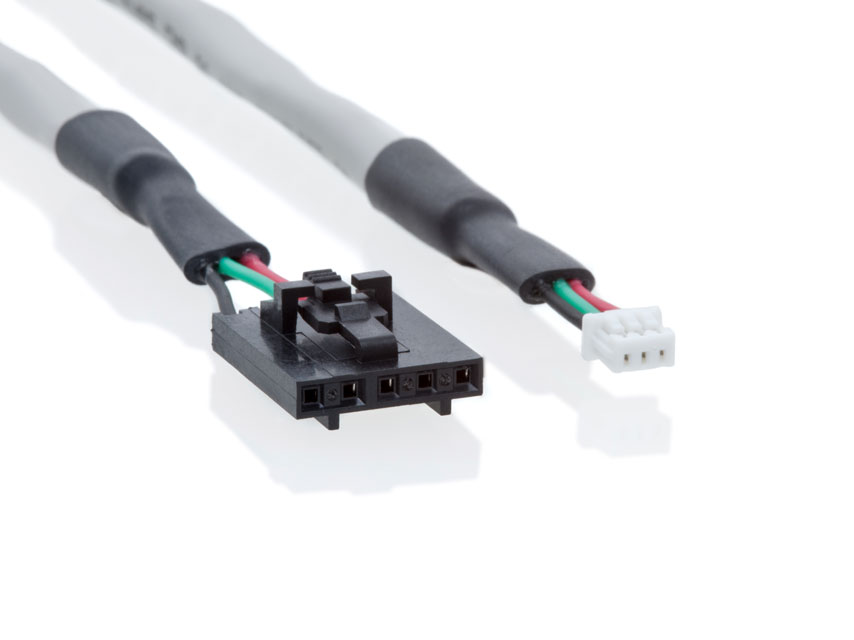

This cable consists of a 5-pin latching connector on one end of a shielded cable and a 3-pin micro connector on the other end. This cable is used to connect the PWM output version of the MA3/MAE3 to the ED3-S, QSB-S, or USB4-S.


WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

3-PIN SIDE 5-PIN SIDE
Pin Description Color Pin Name Color
1 +5VDC Power Red 1 Ground Black
2 PWM Signal Green 2 - -
3 Ground Black 3 PWM Signal Green
      4 +5VDC Power Red
      5 - -
