CA-CFTR-PS-NC T7 PUR Shielded Cable with Leads and Terminating Resistor

CA-CFTR-PS-NC Product Description

Restriction of Hazardous Substances

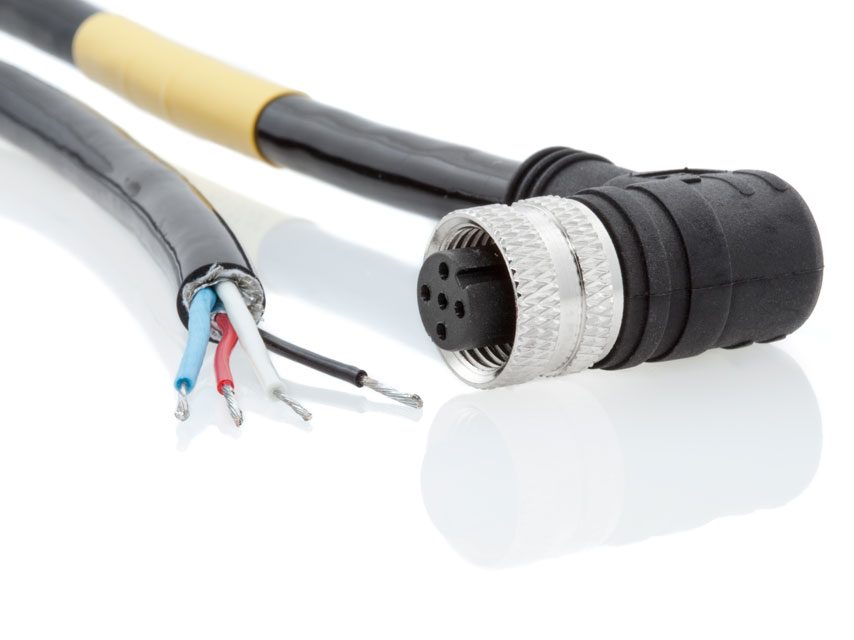

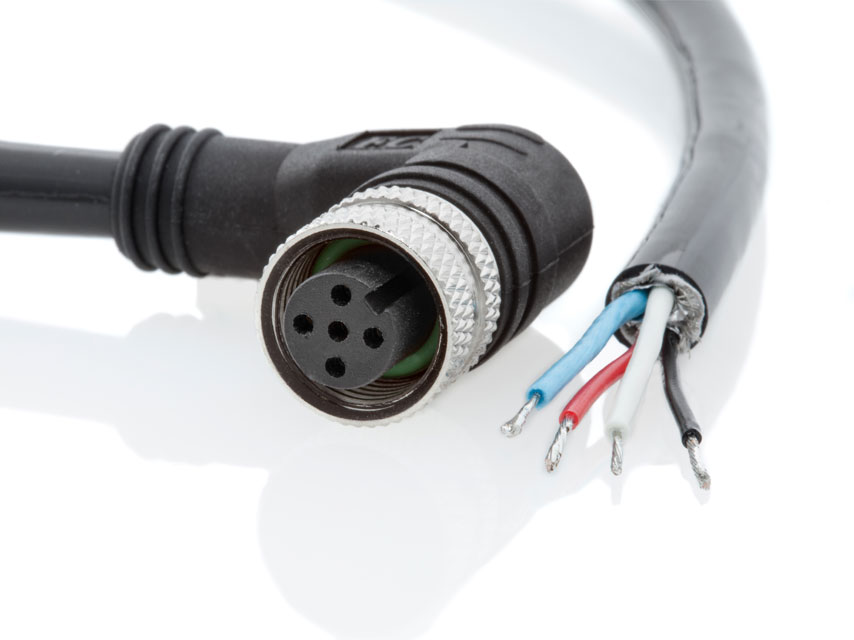

This PUR (polyurethane) shielded cable has a T7 right angle connector at one end and unterminated wires at the other end. The cable has a built-in 120-ohm terminating resistor across pin 4 and pin 5. This cable is used with RS485 versions of US Digital's T7 Networked Absolute Inclinometer.


WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN COLOR DESCRIPTION
1 Drain Shield
2 Red +VCAN
3 Black GND
4 White TXD / BUS+
5 Blue RXD / BUS-

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
