CA-MD6A-SS-MD6 6-Pin Modular Connector / 6-Pin Modular Connector, Unshielded Cable (A2 Analog)

CA-MD6A-SS-MD6 Product Description

Restriction of Hazardous Substances

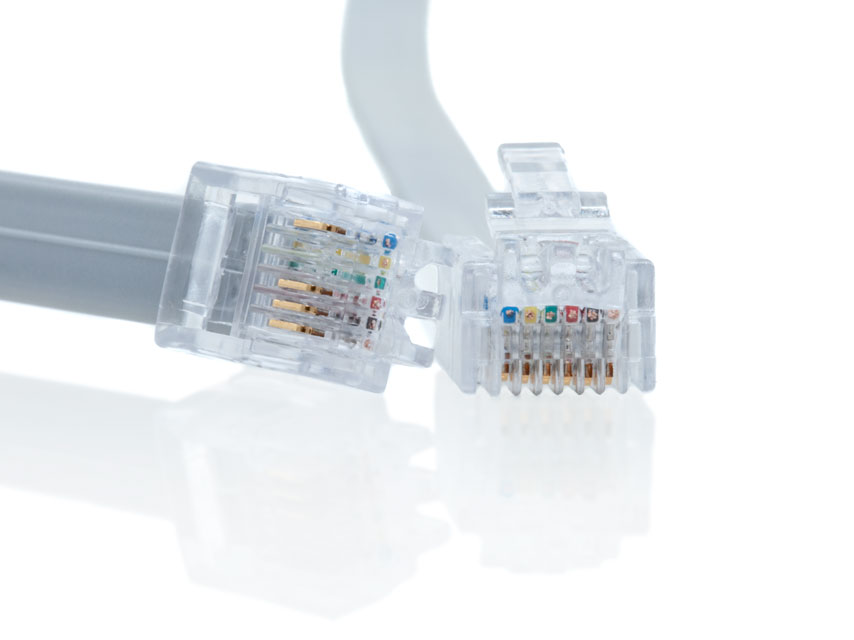

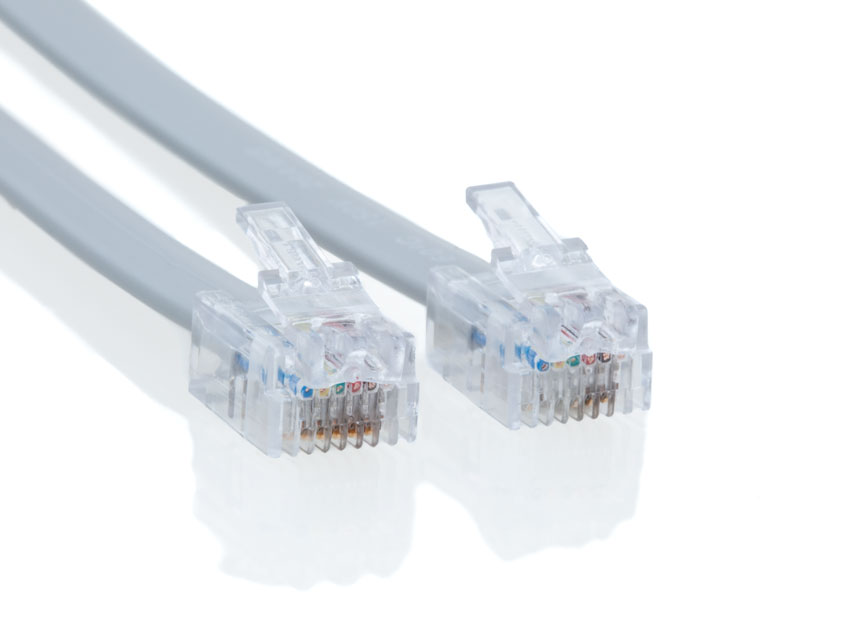

6-pin modular connectors on both ends of an unshielded silver satin 28 AWG cable. This cable is intended for connecting a single analog output A2 version of US Digital's A2 Absolute Optical Shaft Encoder to the digital SEI bus for serial communication; there is no connection from the analog signals on wires 2 and 3 to one of the cable connectors, preventing analog signals from being interpreted as BUSY conditions.

Please note: This cable is not suited for use in situations where one wants to extract and use the analog signals; the cable better suited for that purpose is CA-MD6-SS-MD6.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to

Product Specifications

View here or download the specifications


1 Ground Blue
2 No connection Yellow
3 No connection Green
4 Power Red
5 DataL (quiescent high in Mark condition) Black
6 DataH (quiescent low in Mark condition) White

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
