Configure the LS7083N-S

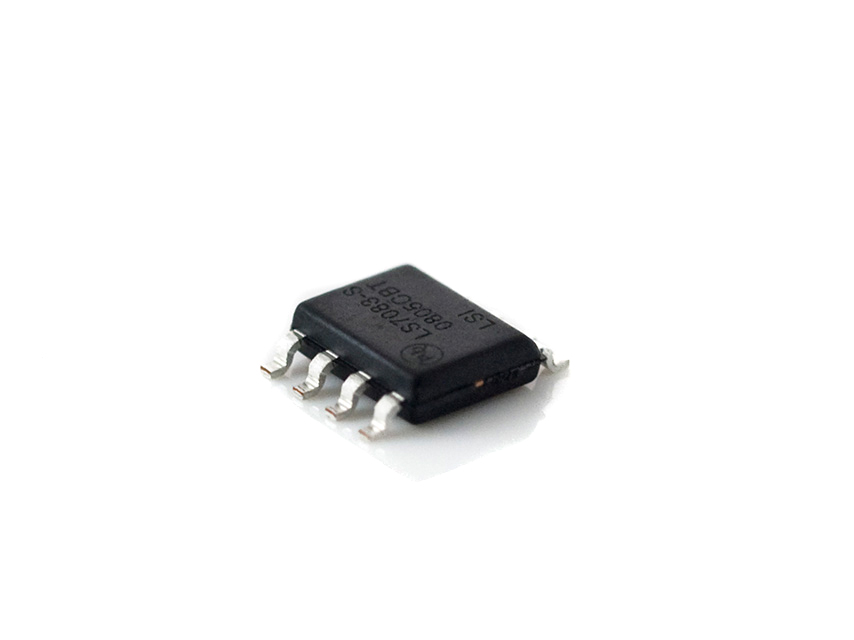

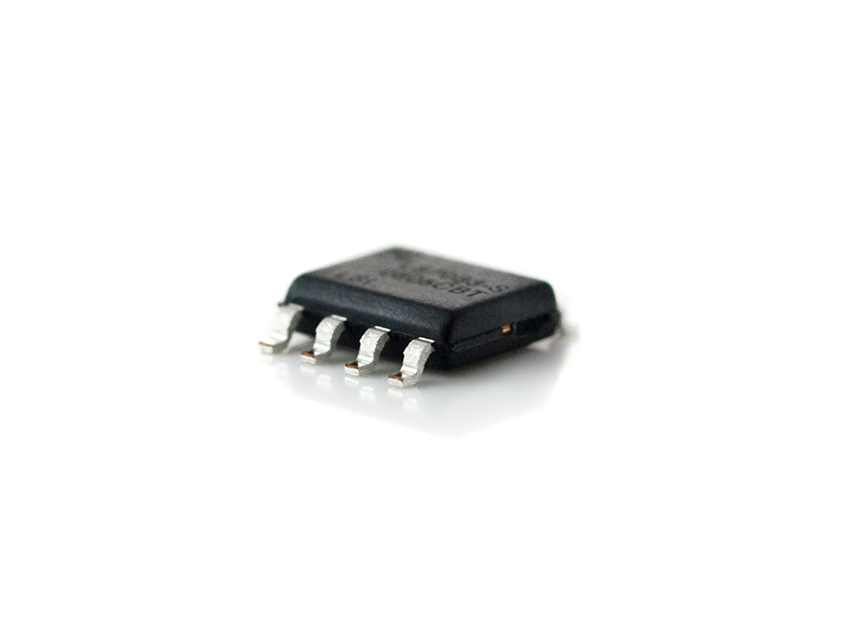

The LSI Computer Systems IC allows incremental shaft encoders to drive standard up/down counters. Connect the encoder quadrature outputs to the A and B inputs. The LS7083N-S outputs can connect directly to the up and down clock inputs of counters such as 74193 or 40193.
The next generation Encoder to Counter Interface chips are now available and recommended for new applications (DIP package, LS7183N / LS7184N, or SOIC package, LS7183N-S / LS7184N-S).
View the Manufacturer's Datasheet
Begin by completing either Option 1 or 2 below. Questions? Contact our support team.
Use the configuration tool to provide information regarding your product needs. Not sure what to do or need additional assistance? Our support team is here to help.
If you know your product part number, enter it in the following field. The part number format looks something like this: E5-5000-394-IE-S-D-D-3...
For purchasing or volume discounts, please configure the part above, then use the completed part number and contact us!
