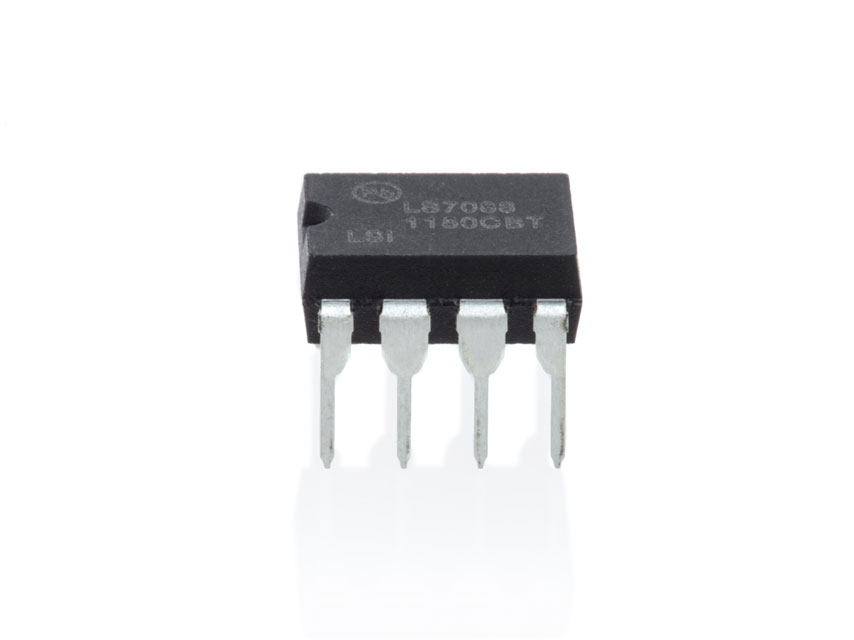

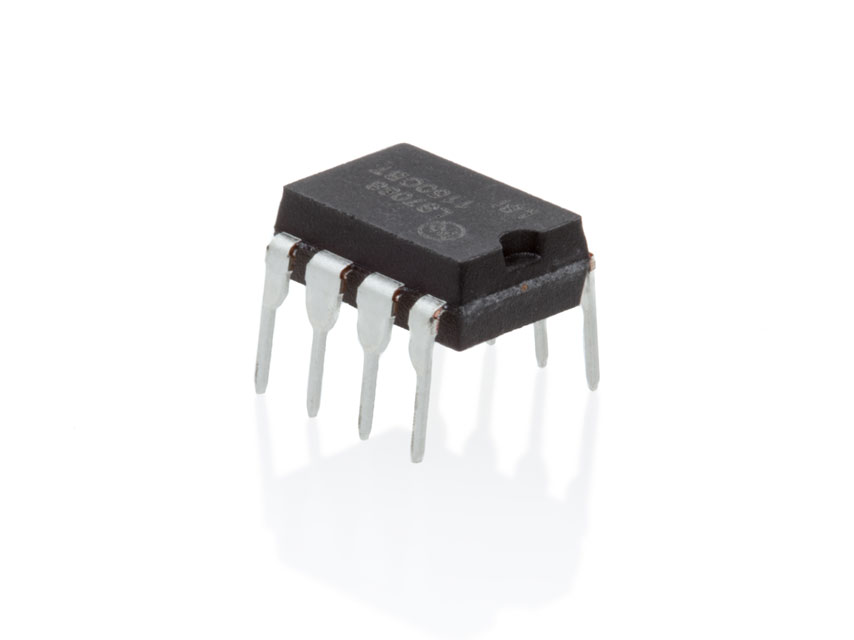

LS7083N Encoder to Counter Interface Chip

LS7083N Features

  • x1 or x4 resolution multiplication
  • TTL and CMOS compatible
  • Low current (micro-amps)
  • 8-pin DIP package
  • No external clocks required
  • Drive standard up/down counters
  • Monolithic CMOS

See more info below

Configure the LS7083N

LS7083N Product Description

Restriction of Hazardous Substances

The LSI Computer Systems LS7083N allows incremental shaft encoders to drive standard up/down counters. Connect the encoder quadrature outputs to the A and B inputs. The LS7083N outputs can connect directly to the up and down clock inputs of counters such as 74193 or 40193.

The next generation Encoder to Counter Interface chips are now available and recommended for new applications (DIP package, LS7183N / LS7184N, or SOIC package, LS7183N-S / LS7184N-S ).

View the Manufacturer's Datasheet

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
  • Cables and connectors are not included and must be ordered separately.
