CA-C5-SH-NC 5-Pin Standard Connector / Unterminated, Shielded Cable

CA-C5-SH-NC Product Description

Restriction of Hazardous Substances

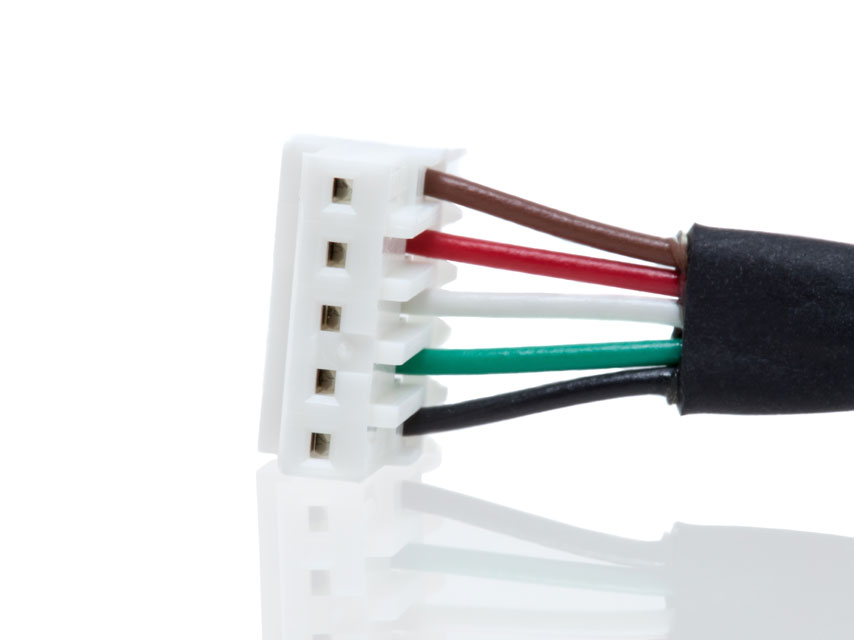

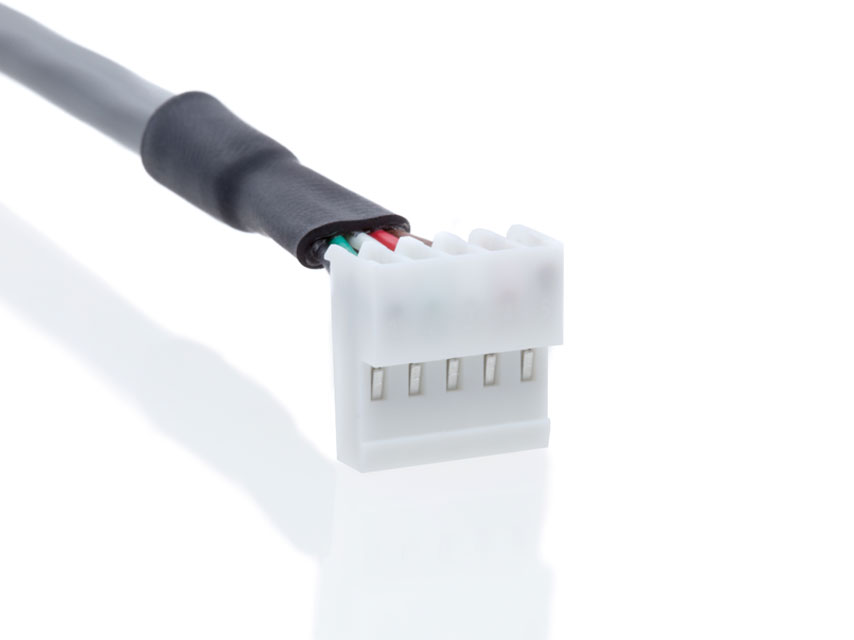

5-pin female standard (friction, not latching) right-angle connector on one end of a 5-conductor round shielded 24 AWG cable; the other end is unterminated. This cable is recommended for customers who wish to attach a customer-supplied connector to the cable or for those who wish to connect the cable to a terminal strip. The standard length is 1 ft., and available in 1 ft. increments up to 500 ft.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to

Product Specifications

View here or download the specifications


1 Ground Black
2 Index Green
3 A channel White
4 +5VDC power Red
5 B channel Brown

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
