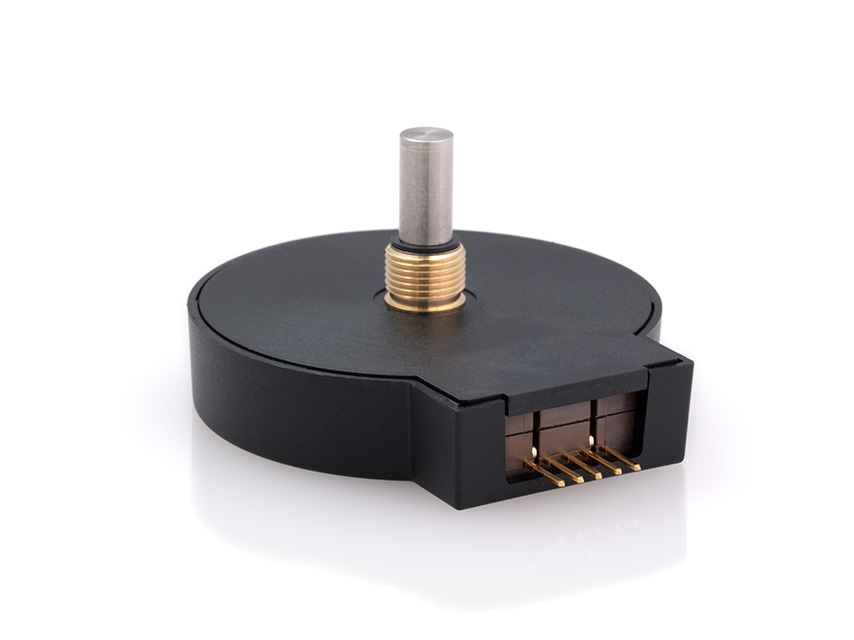

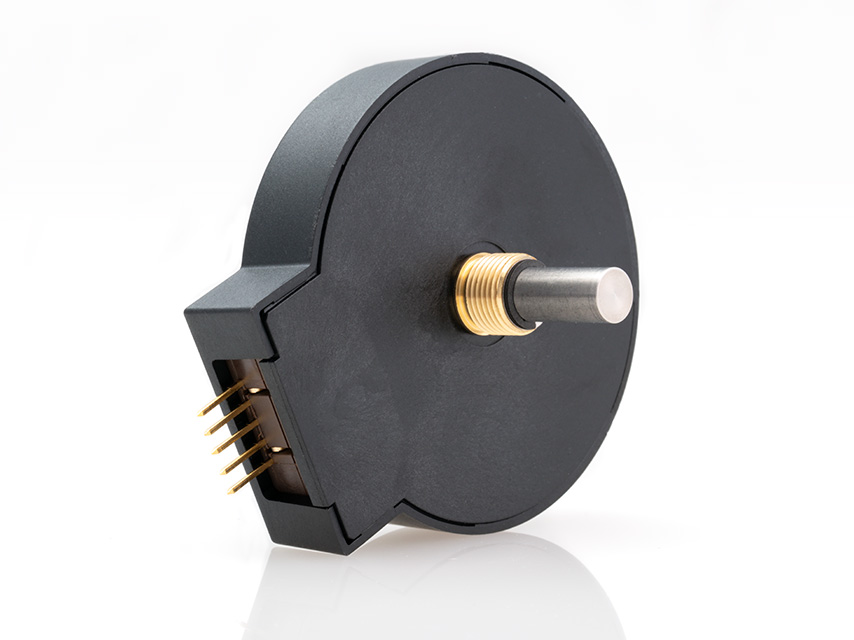

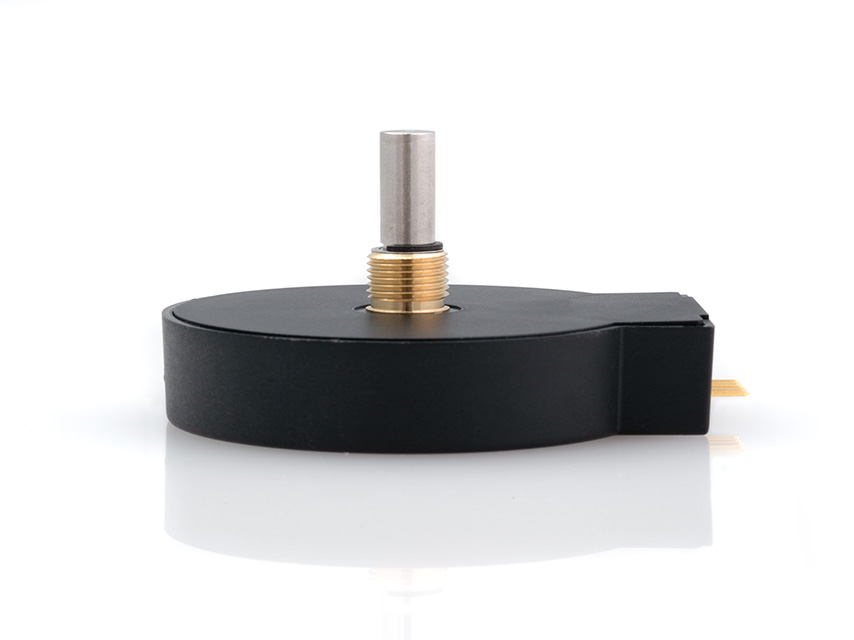

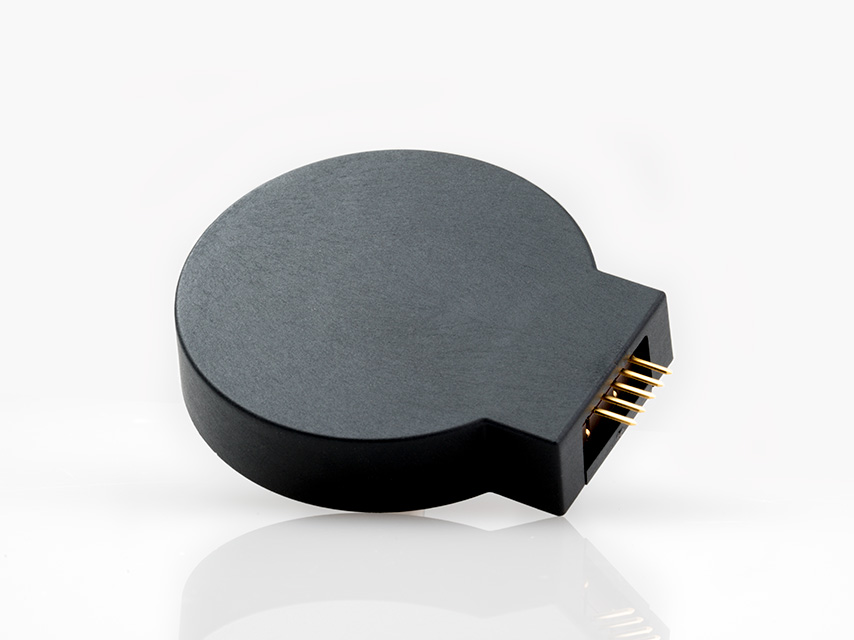

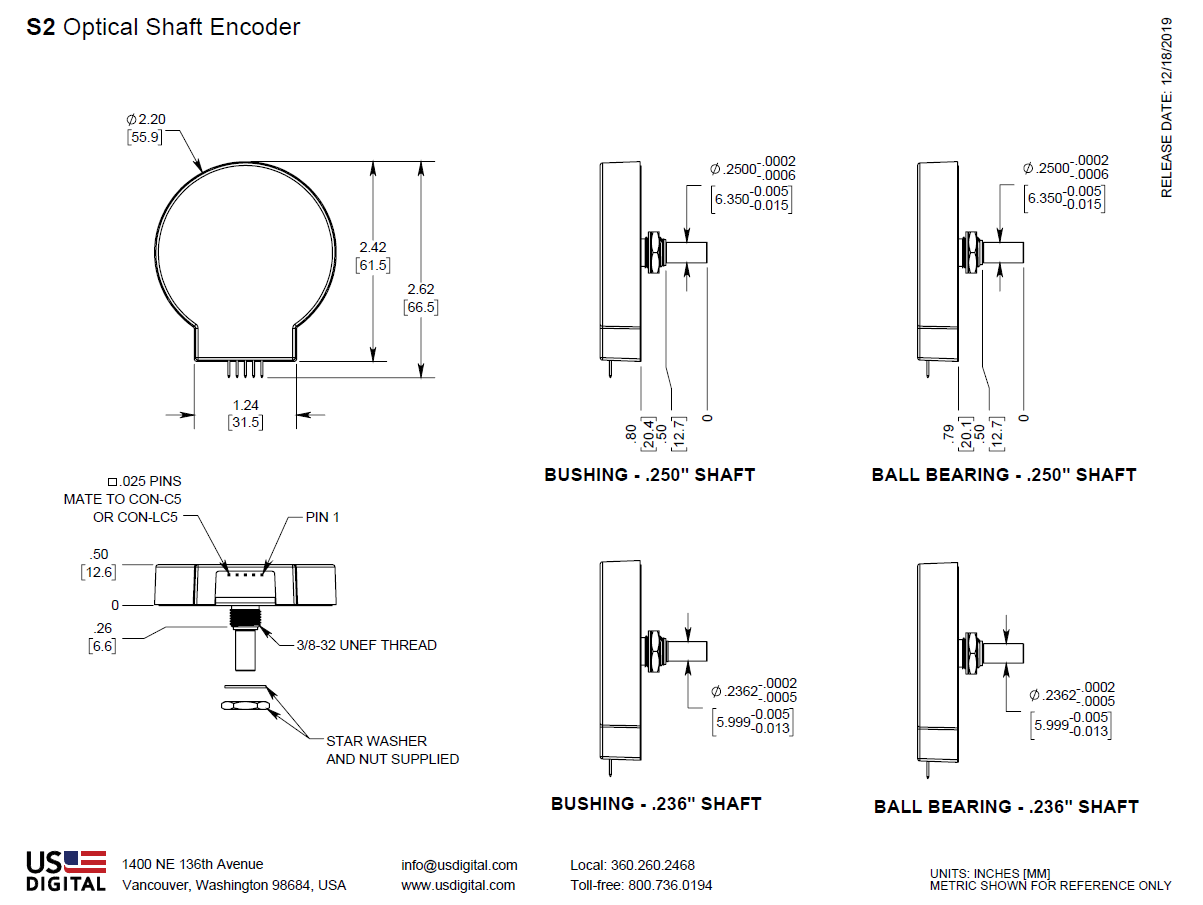

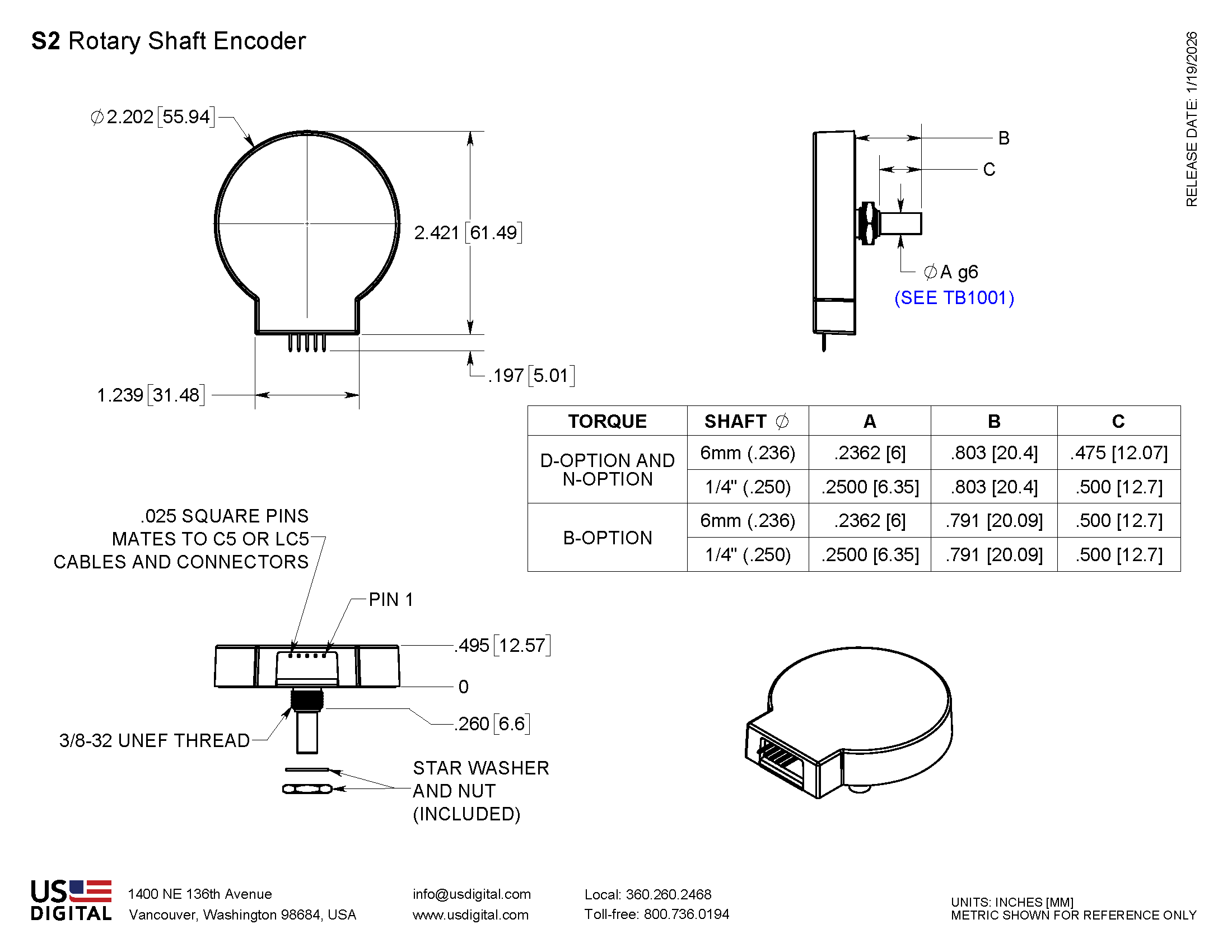

US Digital S2 Rotary Shaft Encoder Description The S2 rotary shaft encoder converts shaft position or speed into a quadrature output signal. This rotary encoder delivers up to 40,000 PPR resolution in a glass-filled polymer housing. Available in two shaft sizes: 6 mm, 1/4 in.
US Digital offers three different torque options for various uses:
Default (-D): sleeve bushing with higher damping for human interface applications.
Ball bearing (-B): miniature precision ball bearings suitable for high-speed applications.
Light static drag (-N): sleeve bushing with lower damping for low-speed applications.
This optical rotary encoder is designed to drive cables up to 10 feet long. For longer cable lengths, we recommend using the model S6 and selecting the differential output. Another option is to add a PC4 /PC5 differential line driver to this encoder.
This S2 incremental encoder is designed for use with a high-retention connector. After you make your selections in the Product Configurator, compatible cables and connectors will be displayed below and must be ordered separately.
Product Specifications
ENVIRONMENTAL
PARAMETER
VALUE
UNITS
Operating Temperature, CPR < 2000
-40 to 100
C
Operating Temperature, CPR ≥ 2000
-25 to 100
C
Electrostatic Discharge, IEC 61000-4-2
± 4
kV
Vibration (10Hz to 2kHz, sinusoidal)
20
G
Shock (6 milliseconds, half-sine)
75
G
MECHANICAL
PARAMETER
SLEEVE BUSHING
BALL BEARING
Max. Acceleration
250000 rad/sec²
250000 rad/sec²
Max. Shaft Speed (mechanical)
100 rpm (1)
10000 rpm (1)
Max. Shaft Torque
0.5 in-oz (D-option) 0.3 in-oz (N-option)
0.05 in-oz (B-option)
Max. Shaft Loading
2 lbs. dynamic 20 lbs. static
1 lb.
Bearing Life
> 1000000 revolutions
L10 = (19.3/Fr )³ * Where L10 = bearing life in millions of revs, andFr = radial shaft loading in pounds
Weight
1.28 oz.
1.28 oz.
Max. Shaft Runout
0.0015 in. T.I.R.
0.0015 in. T.I.R.
Max. Panel Nut Tightening Torque
20 in-lbs
20 in-lbs
Technical Bulletin TB1001 - Shaft and Bore Tolerances
Download
* Only valid with negligible axial shaft loading.
(1) The maximum speed due to electrical considerations is dependent on the CPR. See the EM1 and EM2 product pages.
PHASE RELATIONSHIP
B leads A for clockwise shaft rotation, and A leads B for counterclockwise rotation when viewed from the shaft side of the encoder.
ELECTRICAL
Specifications apply over the entire operating temperature range.
Typical values are specified at Vcc = 5.0Vdc and 25°C.
For complete details, see the EM1 and EM2 product pages.
PARAMETER
MIN.
TYP.
MAX.
UNITS
CONDITIONS
Supply Voltage
4.5
5.0
5.5
V
Supply Current
27 54 72
33 62 85
mA mA mA
CPR < 1000, no load CPR ≥ 1000 and < 3600, no load CPR ≥ 3600, no load
Low-level Output
0.05 0.25
0.5 0.5
V mA mA mA
IOL = 8mA max., CPR < 3600 IOL = 5mA max., CPR ≥ 3600 no load, CPR < 3600 no load, CPR ≥ 3600
High-level Output
2.0 2.0
4.8 3.5
V V V V
IOH = -8mA max., CPR < 3600 IOH = -5mA max., CPR ≥ 3600 no load, CPR < 3600 no load, CPR ≥ 3600
Output Current Per Channel
-8 -5
8 5
mA mA
CPR < 3600 CPR ≥ 3600
Output Rise Time
110 50
nS nS
CPR < 3600 CPR ≥ 3600
Output Fall Time
35 50
nS nS
CPR < 3600 CPR ≥ 3600
PIN-OUT
PIN
DESCRIPTION
1
Ground
2
Index
3
A channel
4
+5VDC power
5
B channel
Note: 5-pin single-ended mating connector is CON-C5 or CON-LC5
PRODUCT CHANGE NOTIFICATIONS
Title
Date
Description
Download
S2 Housing Update – PCN 6935
1/13/2020
US Digital is implementing a redesign of the plastic housing components. The design changes are primarily an alteration of surface drafts and orientation of the housing components relative to each other. The new housing is dimensionally equivalent without any impact to form, fit or function within the envelope of the previous design.
Download
Laser Marking - PCN 5253
6/17/2015
As part of our ongoing continuous improvement efforts, US Digital is changing the labeling/marking method for our E3, E6, H3, H6, S1, S2 and S6 products.
Download
EM1 & EM2 Update - PCN 4199
1/14/2014
Based on our continuous process improvement program, US Digital is changing the current marking method for our EM1 and EM2 encoder modules to a serialization method. This change will allow for each module to have a unique code; the current marking method is based on a date code system that includes all encoder modules produced within a specific week / year. The serialization system will be based on a hexadecimal system.
Download
EOL Sealed Housing Option - PCN 1021
4/11/2013
This PCN is a formal notification that US Digital is discontinuing the Sealed Housing option for the following products:
A2 Absolute Optical Encoder
A2T Absolute Optical Inclinometer
H1 Ball Bearing Optical Shaft Encoder
H3 Ball Bearing Optical Shaft Encoder
S1 Optical Shaft Encoder
S2 Optical Kit Encoder
The Sealed Housing option provides the encoder with low level capability of surviving in moisture environments, however the encoder is NOT waterproof or intended to be used in applications where this is required.
Download
EM1 LED Die - PCN 1016
2/7/2013
As part of US Digital's continual assurance of supply strategy, we have qualified additional sources for our LED die used in our EM1 encoder module, which in turn impacts all of the following products: EM1, E2, E3, E5, E6, H1, H15, H3, H5, H6, HB5M, HB6M, HD25, PE, S1, S2, S5, S6, T5 and T6 The device specification will remain the same, i.e. there will be no change to form, fit or function of the product(s) as specified by US Digital. The appropriate quality and reliability testing has been performed on representative products to ensure normal parametric distribution, consistent with US Digital's quality and reliability standards.
Download
