CA-FC10-SH-FC10 10-Pin Latching Connector / 10-Pin Latching Connector, Shielded Cable

CA-FC10-SH-FC10 Product Description

Restriction of Hazardous Substances

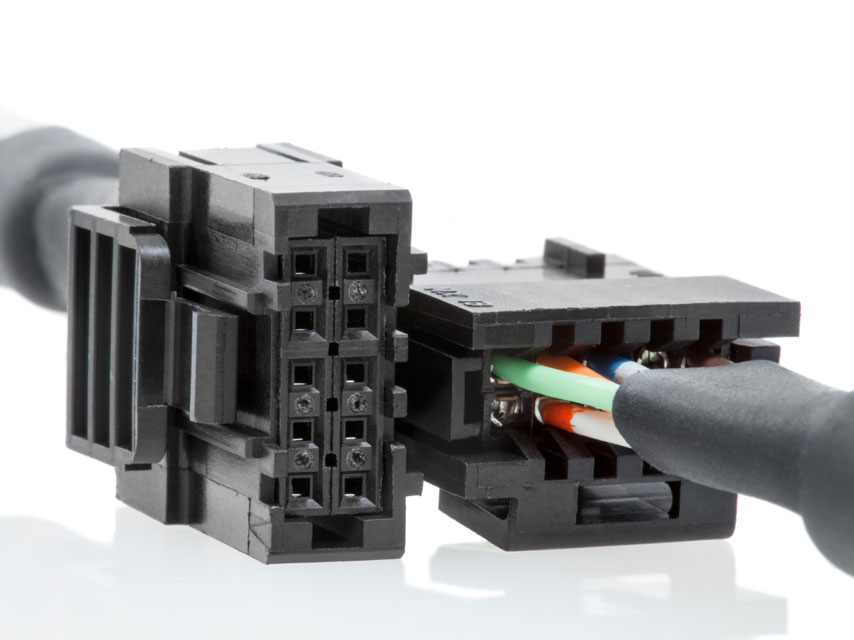

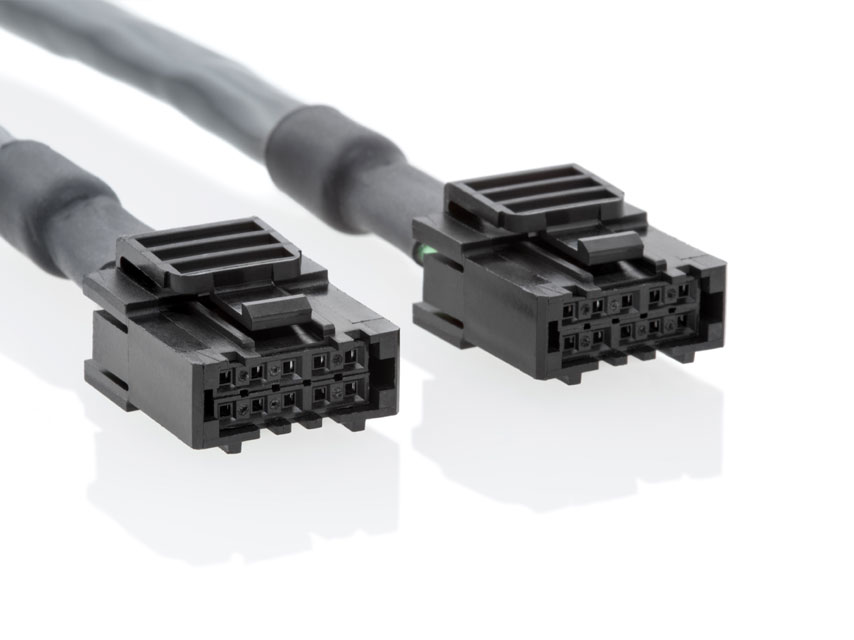

10-pin female latching connectors on both ends of an 8-conductor round shielded twisted pair 24 AWG cable.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to

Product Specifications

View here or download the specifications


1 Ground Drain (connected on one end)
2 Ground Green / White Stripe
3 I- channel White / Orange Stripe
4 I+ channel Orange / White Stripe
5 A- channel White / Blue Stripe
6 A+ channel Blue / White Stripe
7 Power White / Green Stripe
8 - -
9 B- channel White / Brown Stripe
10 B+ channel Brown / White Stripe

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.


Product Configurator

For pricing, this product requires configuration.

Begin by completing either Option 1 or 2 below. Questions? Contact our support team.

Option 1: Configure the Product

Use the configuration tool to provide information regarding your product needs. Not sure what to do or need additional assistance? Our support team is here to help.

We recommend enabling Javascript when using the product configurator.

Option 2: Enter the Product Part Number Directly

If you know your product part number, enter it in the following field. The part number format looks something like this: E5-5000-394-IE-S-D-D-3...

Our products are not currently available for direct online purchase. To place an order please contact us directly with your part number.

For purchasing or volume discounts, please configure the part above, then use the completed part number and contact us!


US Digital's mission is a commitment to quality and constant improvement. If you find an error to a product on this page, please let us know!
