HB6M Hollow Shaft Optical Encoder

Hb6ms Webproduct 01 Product Photo

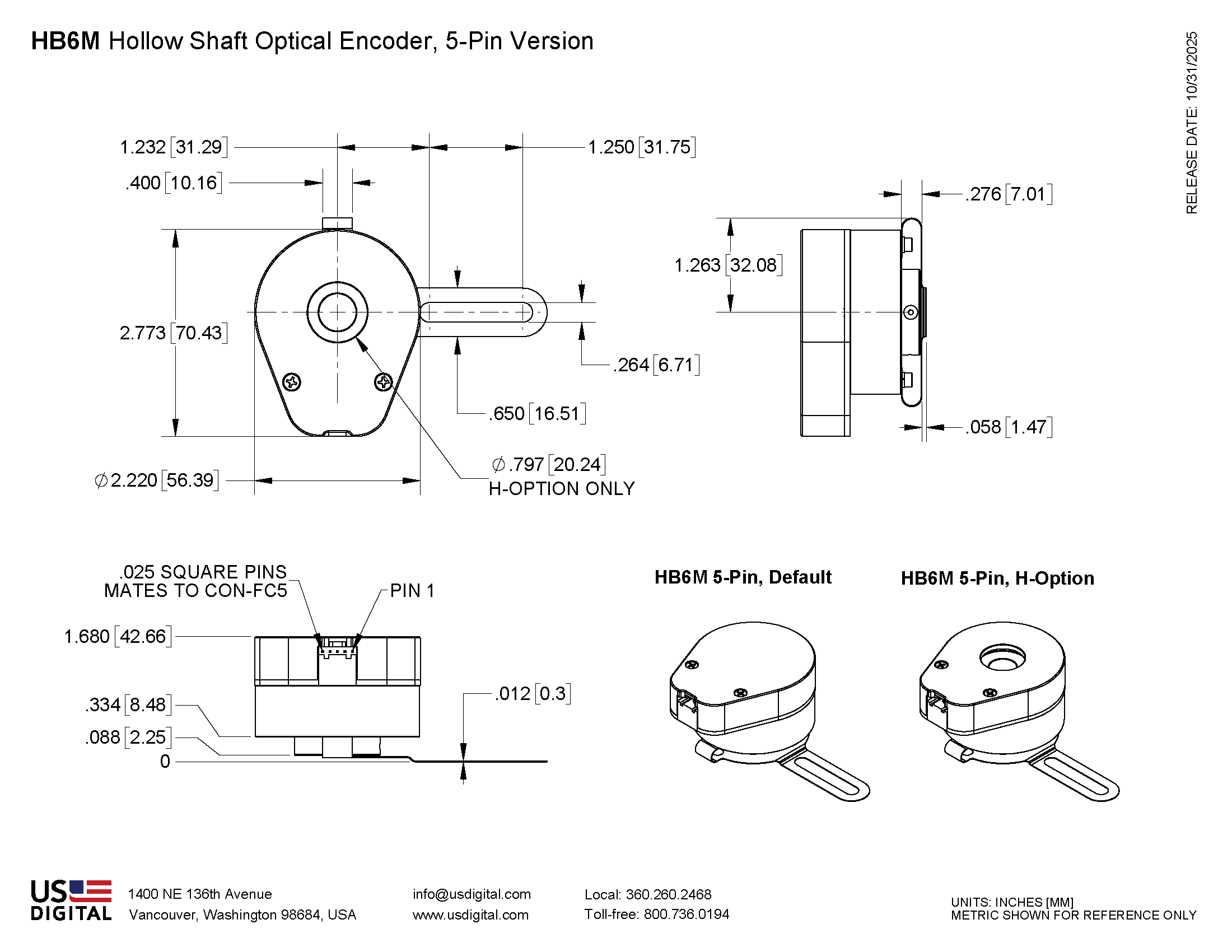

HB6M Mechanical Drawing Mechanical Drawing

View PDF

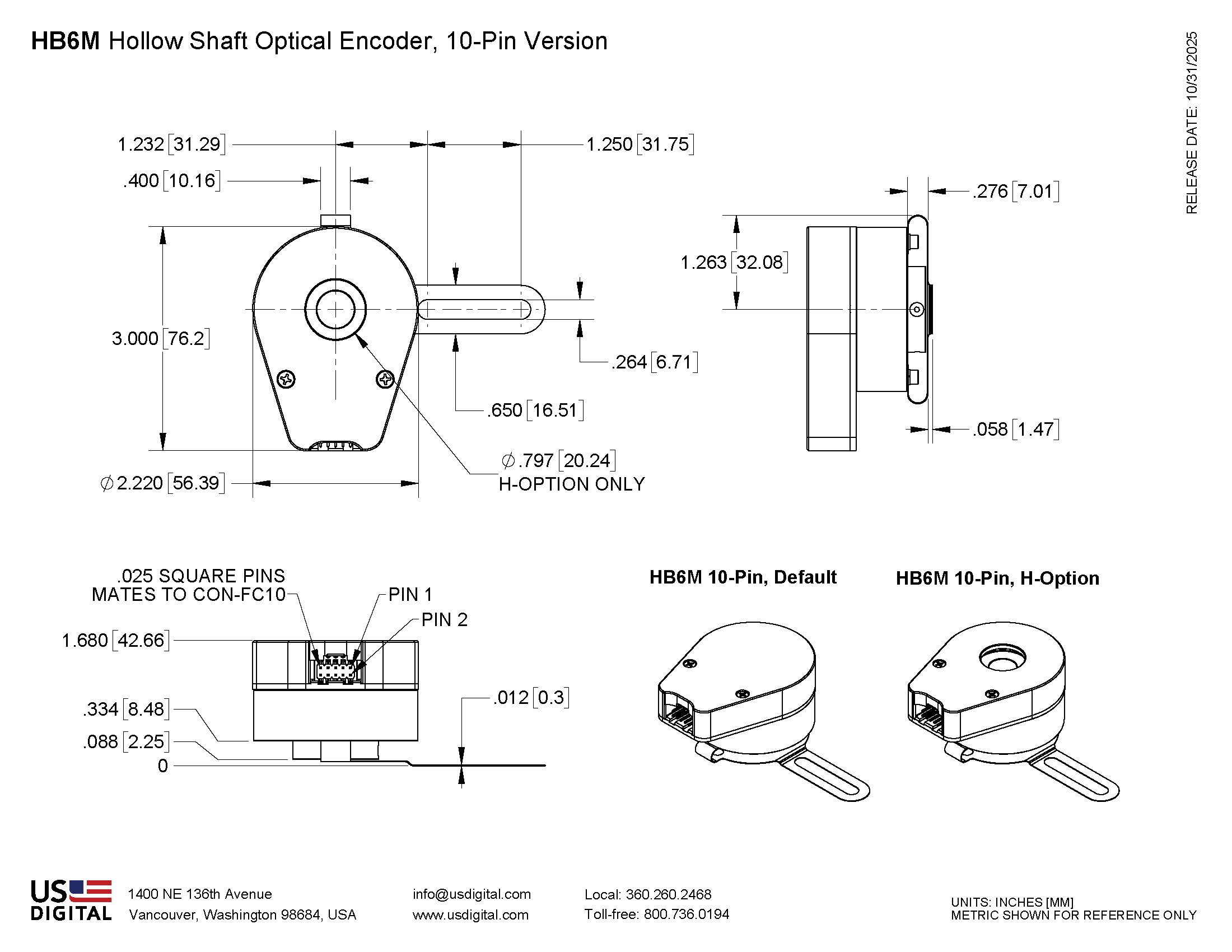

HB6M Mechdrawing 10Pin Mechanical Drawing

View PDF

HB6M Features

  • Hollow shaft thru-bore design with two heavy-duty ball bearings
  • Rugged anodized aluminum housing
  • Supports 11 Shaft sizes (6 to 14 mm and 1/4 in. to 3/4 in.)
  • 20 resolutions from 64-10,000 CPR (256-40,000 PPR)
  • Optional Index channel, Single-Ended, Differential and High-Voltage outputs
  • Secure latching connector/cable (sold separately)

See more info below

Configure the HB6M

US Digital HB6M Hollow Shaft Encoder Description

Restriction of Hazardous Substances

The HB6M is a hollow-shaft/hollow-bore incremental encoder engineered for reliable performance in demanding applications. Its machined aluminum housing, black anodized for protection, accepts shaft diameters from 5 mm to 8 mm and secures directly to the shaft using two set screws.

A flexible anti-rotation bracket allows this hollow shaft encoder to tolerate greater shaft runout than standard kit encoders. The HB6M can accommodate shaft axial play up to ±0.030 in. and shaft runout up to 0.010 in. This hollow shaft encoder is available with a closed cover or with a hole in it for an extended shaft.

The HB6M optical encoder has three available outputs—single-ended, single-ended High-Voltage, and differential, all offered with an optional index channel. For cable runs longer than 10 ft or installations subject to electrical noise, the differential output is recommended for improved signal integrity.

This hollow shaft encoder is designed for use with a secure latching connector. After you make your selections in the Product Configurator, compatible cables and connectors will be displayed below and must be ordered separately.



Product Specifications

ENVIRONMENTAL

PARAMETER VALUE UNITS
Operating Temperature (CPR < 3600) -40 to 100 C
Operating Temperature (CPR ≥ 3600) -25 to 100 C
Electrostatic Discharge
Single-ended (-S version), IEC 61000-4-2
Differential (-D version), Human Body Model
High-Voltage, Open-collector (H, C option), IEC 61000-4-2
± 4
± 2
± 4		 kV
Vibration (10Hz to 2kHz, sinusoidal) 20 G
Shock (6 milliseconds, half-sine) 75 G

MECHANICAL

PARAMETER DIMENSION
Max. Acceleration 100000 rad/sec²
Max. Shaft Speed 6000 rpm
Max. Starting Torque 0.70 oz-in
Max. Bore Loading 5 lb.
Weight 11.5 oz.
Max. Shaft Runout 0.010 in. T.I.R.
Max. Shaft Axial Play ± 0.030 in.
Required Shaft Length (From mounting surface) Min. = 0.3 in.
Max. = 1.4 in. with default cover.
Max. = No limit with H-option cover.
Moment of Inertia 3.7x10^-3 oz-in-sec²
Technical Bulletin TB1001 - Shaft and Bore Tolerances Download

TETHER MOUNTING

The tether is shipped detached and may be mounted in the four different methods as shown below.

HB6M Tether Mounting Diagram

PHASE RELATIONSHIP

A leads B in a clockwise shaft rotation, and B leads A in counterclockwise shaft rotation viewed from the rear side (opposite flexible mount) of the encoder.

SINGLE-ENDED OPTION

  • S option provides 5V TTL compatible outputs
  • Specifications apply over the entire operating temperature range
  • Typical values are specified at Vcc = 5.0Vdc and 25°C
  • For complete details, see the EM1 and EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 4.5  5.0 5.5 V
Supply Current   27
54
72		 33
62
85		 mA
mA
mA		 CPR < 1000, no load
CPR ≥ 1000 and < 3600, no load
CPR ≥ 3600, no load
Low-level Output

0.05
0.25		 0.5
0.5		 V
V
V
V		 IOL = 8mA max., CPR < 3600
IOL = 5mA max., CPR ≥ 3600
no load, CPR < 3600
no load, CPR ≥ 3600
High-level Output 2.0
2.0

4.8
3.5		   V
V
V
V		 IOH = -8mA max., CPR < 3600
IOH = -5mA max., CPR ≥ 3600
no load, CPR < 3600
no load, CPR ≥ 3600
Output Current Per Channel -8
-5		   8
5		 mA
mA		 CPR < 3600
CPR ≥ 3600
Output Rise Time   110
50		   nS
nS		 CPR < 3600
CPR ≥ 3600
Output Fall Time   35
50		   nS
nS		 CPR < 3600
CPR ≥ 3600

DIFFERENTIAL OPTION

  • D Option provides differential line driver output
  • Specifications apply over the entire operating temperature range
  • Typical values are specified at Vcc = 5.0Vdc and 25°C
  • For complete details, see the EM1 and EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 4.5 5.0 5.5 V
Supply Current   29
56
74		 36
65
88		 mA
mA
mA		 CPR < 1000, no load
CPR ≥ 1000 and < 3600, no load
CPR ≥ 3600, no load
Low-level Output   0.2 0.4 V IOL = 20mA max.
High-level Output 2.4 3.4   V IOH = -20mA max.
Differential Output Rise/Fall Time     15  nS

HIGH-VOLTAGE OPTION

  • H option uses a higher supply voltage and provides both single-ended and open-collector outputs
  • Single-ended outputs are 5V TTL compatible (same as S option). See Pin-out.
  • Specifications apply over the entire operating temperature range
  • For complete details, see the EM1 or EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 7.5   30.0 V
Supply Current, 24V power   8
16
22		 10
19
25		 mA
mA
mA		 CPR < 500, no load
CPR ≥ 500 and < 2000, no load
CPR ≥ 2000, no load
Open Collector "On" Resistance   2   ohms
Open Collector Sink Current     200 mA
Output Low Voltage     0.4 V 200 mA sink current
Open Collector Pullup Voltage     50 V

PIN-OUTS

5-PIN SINGLE-ENDED
S OPTION (1)		 10-PIN DIFFERENTIAL
D OPTION (2)		 10-PIN HIGH-VOLTAGE
H OPTION (2)
Pin Description Pin Description Pin Description
1 Ground 1 Ground 1 Ground
2 Index 2 Ground 2 Ground
3 A channel 3 Index- 3 Index- (open collector)
4 +5VDC power 4 Index+ 4 Index+ (single-ended)
5 B channel 5 A- channel 5 A- channel (open collector)
    6 A+ channel 6 A+ channel (single-ended)
    7 +5VDC power 7 7.5-30V power
    8 +5VDC power 8 7.5-30V power
    9 B- channel 9 B- channel (open collector)
    10 B+ channel 10 B+ channel (single-ended)


(1) 5-pin single-ended mating connector is CON-FC5.
(2) 10-pin differential mating connector is CON-FC10.

PRODUCT CHANGE NOTIFICATIONS

Title Date Description Download
HB5M, HB6M & HD25 - PCN 7315 5/17/2023 As part of our ongoing continuous improvement efforts, we are updating our HB5M, HB6M and HD25 series of optical encoders to make product labeling clearer and permanent. The aluminum housing of these encoders will now be anodized black, and labeling will be laser etched onto the surface, providing more contrast and legibility. Previously pin-outs were machined into the housing and product labeling was printed onto an adhesive label that was placed on the side of the product. Product labeling will also now appear on the top surface of the encoder near the pin-out labeling. Download
EM1 LED Die - PCN 1016 2/7/2013 As part of US Digital's continual assurance of supply strategy, we have qualified additional sources for our LED die used in our EM1 encoder module, which in turn impacts all of the following products:

EM1, E2, E3, E5, E6, H1, H15, H3, H5, H6, HB5M, HB6M, HD25, PE, S1, S2, S5, S6, T5 and T6

The device specification will remain the same, i.e. there will be no change to form, fit or function of the product(s) as specified by US Digital. The appropriate quality and reliability testing has been performed on representative products to ensure normal parametric distribution, consistent with US Digital's quality and reliability standards.		 Download
EM1 & EM2 Update - PCN 4199 1/14/2014 Based on our continuous process improvement program, US Digital is changing the current marking method for our EM1 and EM2 encoder modules to a serialization method. This change will allow for each module to have a unique code; the current marking method is based on a date code system that includes all encoder modules produced within a specific week / year. The serialization system will be based on a hexadecimal system. Download
