CA-RC10-SH-NC 10-Pin MIL-C-5015 Connector / Unterminated, Shielded Cable

CA-RC10-SH-NC Product Description

Restriction of Hazardous Substances

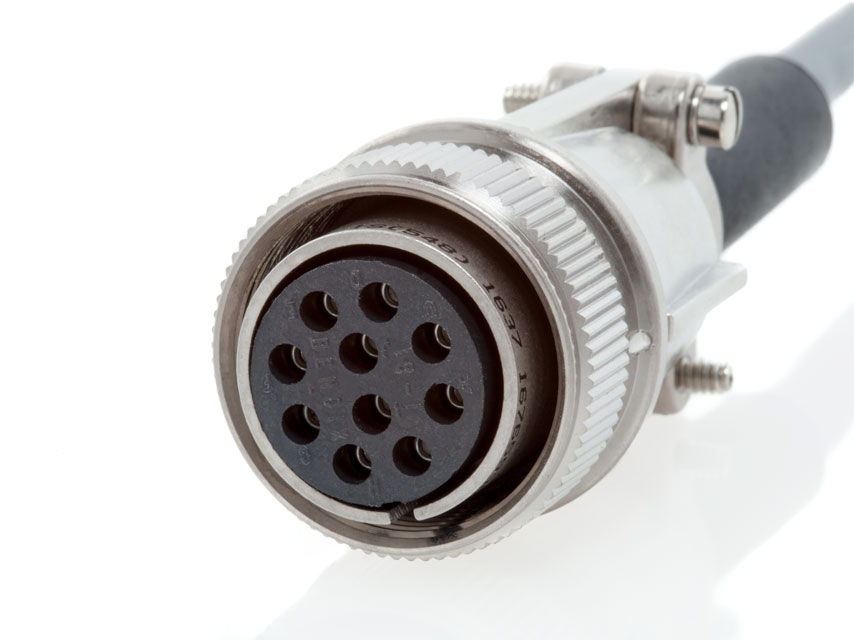

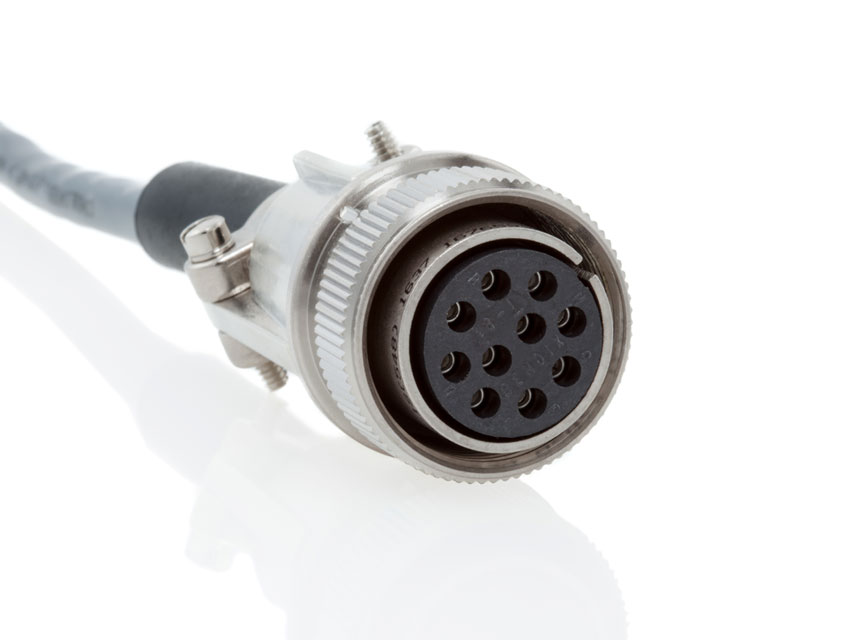

A 10-pin MIL-C-5015 female connector on one end of a 12-conductor shielded round 24 AWG cable. This low-temperature version has a range of -20C to +80C.


WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN HD25 DESCRIPTION HD25A DESCRIPTION COLOR
A A+ Channel DataH Blue / White stripe
B B+ Channel Busy+ Brown / White stripe
C I+ Channel(*) Analog+ Orange / White stripe
D +VDC Power Green / White stripe
E - - Gray / White stripe
F Common Common White / Gray stripe
G Case Ground Case Ground White / Green stripe
H A- Channel DataL White / Blue stripe
I B- Channel Busy- White / Brown stripe
J I- Channel(*) Analog- White / Orange stripe

* Only available when Index channel is specified.
