Cables

US Digital CA-C5-SH-C5 CA-C5-SH-C5 Product Photo

CA-C5-SH-C5 5-Pin Standard Connector / 5-Pin Standard Connector, Shielded Cable

5-pin female standard (friction, not latching) right-angle connectors on both ends of a 5-conductor round shielded 24 AWG cable. The standard length is 1 ft., and available in...

More CA-C5-SH-C5 Details

US Digital CA-C5-SH-FC5 CA-C5-SH-FC5 Product Photo

CA-C5-SH-FC5 5-Pin Standard Connector / 5-Pin Latching Connector, Shielded Cable

A 5-pin female standard (friction, not latching) connector connected to a 5-pin female polarized latching connector via a 5-conductor round shielded 24 AWG cable. The standard...

More CA-C5-SH-FC5 Details

US Digital CA-C5-SH-NC CA-C5-SH-NC Product Photo

CA-C5-SH-NC 5-Pin Standard Connector / Unterminated, Shielded Cable

5-pin female standard (friction, not latching) right-angle connector on one end of a 5-conductor round shielded 24 AWG cable; the other end is unterminated. This cable is...

More CA-C5-SH-NC Details

US Digital CA-C5-W4-NC CA-C5-W4-NC Product Photo

CA-C5-W4-NC 5-Pin Standard Connector / Unterminated, 4-Wire Discrete Cable

5-pin female standard (friction, not latching) right-angle connector on one end of four individual discrete 22 AWG wires. The standard length is 1 ft., and available in 1 ft....

More CA-C5-W4-NC Details

US Digital CA-C5-W5-NC CA-C5-W5-NC Product Photo

CA-C5-W5-NC 5-Pin Standard Connector / Unterminated, 5-Wire Discrete Cable

A 5-pin female standard (friction, not latching) right-angle connector on one end of five individual discrete 22 AWG wires. The standard length is 1 ft., and available in 1...

More CA-C5-W5-NC Details

US Digital CA-C10-F-C10 CA-C10-F-C10 Product Photo

CA-C10-F-C10 10-Pin IDC Connector / 10-Pin IDC Connector, Flat Cable

10-pin insulation displacement female connectors (IDC) on both ends of a 10-wire flat 28 AWG ribbon cable. This cable is primarily used with Avago/Agilent direct replacements....

More CA-C10-F-C10 Details

US Digital CA-C10L-SH-NC CA-C10L-SH-NC Product Photo

CA-C10L-SH-NC 10-Pin Standard Connector / Unterminated, Shielded Cable (Avago Pin-Out)

A 10-pin female standard connector on one end of an 8-conductor round shielded twisted pair 24 AWG cable. This cable is primarily used with Avago/Agilent direct replacements...

More CA-C10L-SH-NC Details

US Digital CA-C10-SH-C10 CA-C10-SH-C10 Product Photo

CA-C10-SH-C10 10-Pin Standard Connector / 10-Pin Standard Connector, Shielded Cable

10-pin female standard (friction, not latching) connectors on both ends of an 8-conductor round shielded twisted pair 24 AWG cable. The standard length is 1 ft., and available...

More CA-C10-SH-C10 Details

US Digital CA-C10-SH-NC CA-C10-SH-NC Product Photo

CA-C10-SH-NC 10-Pin Standard Connector / Unterminated, Shielded Cable

The CA-C10-SH-NC cable has a 10-pin female standard (non-latching) connector on one end of an 8-conductor round shielded twisted pair 24 AWG cable; the other end is...

More CA-C10-SH-NC Details

US Digital CA-CFR-PS-DB9P CA-CFR-PS-DB9P Product Photo

CA-CFR-PS-DB9P T7-232 Power and Serial Communication Cable

This cable connects the 5-pin J1 connector of a T7 Networked Absolute Inclinometer (RS232 interface) to a standard PC's DB9 RS-232 serial COM port. The power connector is used...

More CA-CFR-PS-DB9P Details

US Digital CA-CFR-PS-NC CA-CFR-PS-NC Product Photo

CA-CFR-PS-NC T7 PUR Shielded Cable with Leads

This PUR (polyurethane) shielded cable has a T7 right angle connector at one end and unterminated wires at the other end. This cable is used with the RS232 or RS485 versions...

More CA-CFR-PS-NC Details

US Digital CA-CFTR-PS-NC CA-CFTR-PS-NC Product Photo

CA-CFTR-PS-NC T7 PUR Shielded Cable with Leads and Terminating Resistor

This PUR (polyurethane) shielded cable has a T7 right angle connector at one end and unterminated wires at the other end. The cable has a built-in 120-ohm terminating resistor...

More CA-CFTR-PS-NC Details

US Digital CA-CM-PS-CFR CA-CM-PS-CFR Product Photo

CA-CM-PS-CFR T7 PUR Shielded Cable

This shielded PUR (polyurethane) cable has a T7 straight connector and a right-angle connector at the other end. You can use this cable with the CON-CAN-MFF splitter to...

More CA-CM-PS-CFR Details

US Digital CA-CM-PS-CFTR CA-CM-PS-CFTR Product Photo

CA-CM-PS-CFTR T7 PUR Shielded Cable with Terminating Resistor

This shielded PUR (polyurethane) cable has a T7 straight connector at one end and a right-angle connector at the other end. The cable has a built-in 120-ohm terminating...

More CA-CM-PS-CFTR Details

US Digital CA-DF5-SH-NC CA-DF5-SH-NC Product Photo

CA-DF5-SH-NC 5-Pin DF52 Connector / Unterminated, Shielded Cable

A 5-pin Hirose DF52 series, 0.8mm pitch plug connector on one end of a 5-conductor round shielded 30 AWG cable. This cable has a temperature range of -40C to 105C. The...

More CA-DF5-SH-NC Details

US Digital CA-E15-SH-NC CA-E15-SH-NC Product Photo

CA-E15-SH-NC 15-Pin Connector / Unterminated, Shielded Cable

A 15-pin standard cable, 28 AWG. The standard length is 1 ft., and available in 1 ft. increments up to 50 ft....

More CA-E15-SH-NC Details

US Digital CA-FC5-SH-FC5 CA-FC5-SH-FC5 Product Photo

CA-FC5-SH-FC5 5-Pin Latching Connector / 5-Pin Latching Connector, Shielded Cable

5-pin female polarized latching connector on both ends of a 5-conductor round shielded 24 AWG cable. The standard length is 1 ft., and available in 1 ft. increments up to 500...

More CA-FC5-SH-FC5 Details

US Digital CA-FC5-SH-LC5 CA-FC5-SH-LC5 Product Photo

CA-FC5-SH-LC5 5-Pin Latching Connector / 5-Pin Locking Connector, Shielded Cable

A 5-pin female polarized latching connector connected to a 5-pin female locking connector via a 5-conductor round shielded 24 AWG cable. The locking connector is typically...

More CA-FC5-SH-LC5 Details

US Digital CA-FC5-SH-MIC3 CA-FC5-SH-MIC3 Product Photo

CA-FC5-SH-MIC3 5-Pin Latching Connector / 3-Pin Micro Connector, Shielded Cable

This cable consists of a 5-pin latching connector on one end of a shielded cable and a 3-pin micro connector on the other end. This cable is used to connect the PWM output...

More CA-FC5-SH-MIC3 Details

US Digital CA-FC5-SH-MIC4 CA-FC5-SH-MIC4 Product Photo

CA-FC5-SH-MIC4 5-Pin Latching Connector / 4-Pin Micro Connector, Shielded Cable

This cable consists of a 5-pin latching connector on one end of a shielded cable and a 4-pin micro-connector on the other end. This cable is used with several different...

More CA-FC5-SH-MIC4 Details

US Digital CA-FC5-SH-NC CA-FC5-SH-NC Product Photo

CA-FC5-SH-NC 5-Pin Latching Connector / Unterminated, Shielded Cable

A 5-pin female polarized latching connector on one end of a 5-conductor round shielded 24 AWG cable. The standard length is 1 ft., and available in 1 ft. increments up to 500...

More CA-FC5-SH-NC Details

US Digital CA-FC5-SH-RC7 CA-FC5-SH-RC7 Product Photo

CA-FC5-SH-RC7 5-Pin Latching Connector / 7-Pin MIL-C-5015 Connector, Shielded Cable

This shielded cable connects to US Digital's HD25 Industrial Rugged Metal Optical Encoder via a circular 7-pin screw-on connector, and it has a 5-pin latching connector on the...

More CA-FC5-SH-RC7 Details

US Digital CA-FC5-W4-NC CA-FC5-W4-NC Product Photo

CA-FC5-W4-NC 5-Pin Latching Connector / Unterminated, 4-Wire Discrete Cable

The CA-FC5-W4-NC discrete wire encoder cable has a 5-pin female polarized latching connector on one end of four individual discrete 22 AWG wires; the other end is...

More CA-FC5-W4-NC Details

US Digital CA-FC5-W5-NC CA-FC5-W5-NC Product Photo

CA-FC5-W5-NC 5-Pin Latching Connector / Unterminated, 5-Wire Discrete Cable

A 5-pin female polarized latching connector on one end of five individual discrete 22 AWG wires. The standard length is 1 ft., and available in 1 ft. increments up to 500...

More CA-FC5-W5-NC Details

US Digital CA-FC10L-SH-FC10L CA-FC10L-SH-FC10L Product Photo

CA-FC10L-SH-FC10L 10-Pin Latching Connector / 10-Pin Latching Connector, Shielded Cable (Avago Pin-Out)

10-pin female polarized latching connectors on both ends with an 8-conductor round shielded twisted pair 24 AWG cable. This cable is primarily used with Avago/Agilent direct...

More CA-FC10L-SH-FC10L Details

US Digital CA-FC10L-SH-NC CA-FC10L-SH-NC Product Photo

CA-FC10L-SH-NC 10-Pin Latching Connector / Unterminated, Shielded Cable (Avago Pin-Out)

A 10-pin female polarized latching connector on one end of an 8-conductor round shielded twisted pair 24 AWG cable. This cable is primarily used with Avago/Agilent direct...

More CA-FC10L-SH-NC Details

US Digital CA-FC10P-SH-NC CA-FC10P-SH-NC Product Photo

CA-FC10P-SH-NC 10-Pin Latching Connector / Unterminated, Shielded Cable (QSB-M Pin-Out)

A 10-pin female polarized latching connector on one end of a 10-conductor round shielded twisted pair 24 AWG cable. The standard length is 1 ft., and available in 1 ft....

More CA-FC10P-SH-NC Details

US Digital CA-FC10-SH-FC10 CA-FC10-SH-FC10 Product Photo

CA-FC10-SH-FC10 10-Pin Latching Connector / 10-Pin Latching Connector, Shielded Cable

10-pin female latching connectors on both ends of an 8-conductor round shielded twisted pair 24 AWG cable. The standard length is 1 ft., and available in 1 ft. increments up...

More CA-FC10-SH-FC10 Details

US Digital CA-FC10-SH-NC CA-FC10-SH-NC Product Photo

CA-FC10-SH-NC 10-Pin Latching Connector / Unterminated, Shielded Cable

A 10-pin female latching connector on one end of an 8-conductor round shielded twisted pair 24 AWG cable. The standard length is 1 ft., and available in 1 ft. increments up to...

More CA-FC10-SH-NC Details

US Digital CA-FC10-W8-NC CA-FC10-W8-NC Product Photo

CA-FC10-W8-NC 10-Pin Latching Connector / Unterminated, 8-Wire Discrete Cable

A 10-pin female polarized latching connector on one end of eight individual discrete 22 AWG wires. The standard length is 1 ft., and available in 1 ft. increments up to 500...

More CA-FC10-W8-NC Details

US Digital CA-LC5-SH-LC5 CA-LC5-SH-LC5 Product Photo

CA-LC5-SH-LC5 5-Pin Locking Connector / 5-Pin Locking Connector, Shielded Cable

5-pin female locking connectors on both ends of a 5-conductor round shielded 24 AWG cable. The standard length is 1 ft., and available in 1 ft. increments up to 500 ft....

More CA-LC5-SH-LC5 Details

US Digital CA-LC5-SH-NC CA-LC5-SH-NC Product Photo

CA-LC5-SH-NC 5-Pin Locking Connector / Unterminated, Shielded Cable

A 5-pin female locking connector on one end of a 5-conductor round shielded 24 AWG cable. The standard length is 1 ft., and available in 1 ft. increments up to 500 ft....

More CA-LC5-SH-NC Details

US Digital CA-LC5-W4-NC CA-LC5-W4-NC Product Photo

CA-LC5-W4-NC 5-Pin Locking Connector / Unterminated, 4-Wire Discrete Cable

A 5-pin female locking connector on one end of four individual discrete 22 AWG wires. The standard length is 1 ft., and available in 1 ft. increments up to 500 ft....

More CA-LC5-W4-NC Details

US Digital CA-LC5-W5-NC CA-LC5-W5-NC Product Photo

CA-LC5-W5-NC 5-Pin Locking Connector / Unterminated, 5-Wire Discrete Cable

A 5-pin locking connector on one end of five individual discrete 22 AWG wires. The standard length is 1 ft., and available in 1 ft. increments up to 500 ft....

More CA-LC5-W5-NC Details

CA-MD3 USB to RS485 Adapter Cable for MD3

The CA-MD3 is an interface cable that connects a PC's USB port to an RS485 interface. The RS485 connector is a 6-pin RJ25 modular connector. The cable length is 6 ft. and...

More CA-MD3 Details

US Digital CA-MD6A-SS-MD6 CA-MD6A-SS-MD6 Product Photo

CA-MD6A-SS-MD6 6-Pin Modular Connector / 6-Pin Modular Connector, Unshielded Cable (A2 Analog)

6-pin modular connectors on both ends of an unshielded silver satin 28 AWG cable. This cable is intended for connecting a single analog output A2 version of US Digital's A2...

More CA-MD6A-SS-MD6 Details

US Digital CA-MD6-SH-MD6 CA-MD6-SH-MD6 Product Photo

CA-MD6-SH-MD6 6-Pin Modular Connector / 6-Pin Modular Connector, Shielded Cable

6-pin modular connectors on both ends of an 8-conductor shielded round twisted pair 26 AWG cable. The standard length is 1 ft., and available in 1 ft. increments up to 500...

More CA-MD6-SH-MD6 Details

US Digital CA-MD6-SH-RC10 CA-MD6-SH-RC10 Product Photo

CA-MD6-SH-RC10 6-Pin Modular Connector / 10-Pin MIL-C-5015 Connector, Shielded Cable

A 10-pin MIL-C-5015 female connector connected to a 6-pin modular connector via an 8 conductor shielded round twisted pair 26 AWG cable. The standard length is 1 ft., and...

More CA-MD6-SH-RC10 Details

US Digital CA-MD6-SS-MD6 CA-MD6-SS-MD6 Product Photo

CA-MD6-SS-MD6 6-Pin Modular Connector / 6-Pin Modular Connector, Unshielded Cable

A 6-pin modular connector on both ends of an unshielded silver satin 28 AWG cable. The standard length is 1 ft., and available in 1 ft. increments up to 500 ft....

More CA-MD6-SS-MD6 Details

US Digital CA-MIC3-SH-NC CA-MIC3-SH-NC Product Photo

CA-MIC3-SH-NC 3-Pin Micro Connector / Unterminated, Shielded Cable

A 3-pin micro mating connector on one end of a 4-conductor shielded round 26 AWG cable. The standard length is 1 ft., and available in 1 ft. increments up to 500 ft....

More CA-MIC3-SH-NC Details

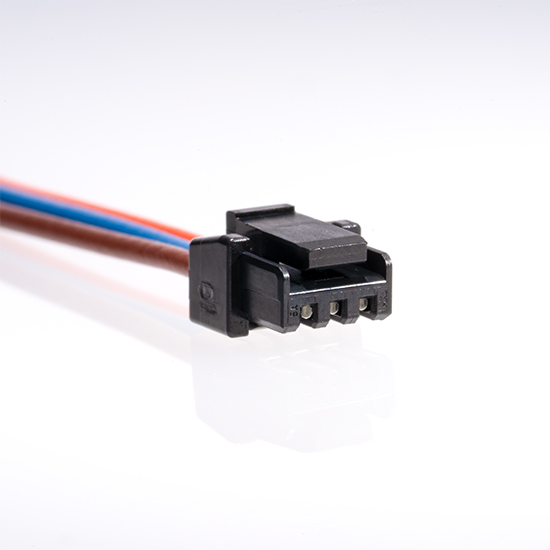

US Digital CA-MIC3-W3-NC CA-MIC3-W3-NC Product Photo

CA-MIC3-W3-NC 3-Pin Micro Connector / Unterminated, 3-Wire Discrete Cable

A 3-pin micro mating connector on one end of three individual discrete 26 AWG wires. The standard length is 1 ft., and available in 1 ft. increments up to 500 ft....

More CA-MIC3-W3-NC Details

US Digital CA-MIC4-SH-NC CA-MIC4-SH-NC Product Photo

CA-MIC4-SH-NC 4-Pin Micro Connector / Unterminated, Shielded Cable

A 4-pin micro mating connector on one end of a four-conductor round twisted pair 26 AWG cable. The standard length is 1 ft., and available in 1 ft. increments up to 500...

More CA-MIC4-SH-NC Details

US Digital CA-MIC4-W4-NC CA-MIC4-W4-NC Product Photo

CA-MIC4-W4-NC 4-Pin Micro Connector / Unterminated, 4-Wire Discrete Cable

A 4-pin micro mating connector on one end of four individual discrete 26 AWG wires. The standard length is 1 ft., and available in 1 ft. increments up to 500 ft....

More CA-MIC4-W4-NC Details

US Digital CA-MIC6-SH-NC CA-MIC6-SH-NC Product Photo

CA-MIC6-SH-NC 6-Pin Micro Connector / Unterminated, Shielded Cable

A 6-pin micro connector on one end of a 6-conductor round twisted pair 26 AWG cable. The standard length is 1 ft., and available in 1 ft. increments up to 500 ft....

More CA-MIC6-SH-NC Details

US Digital CA-MIC6-W6-NC CA-MIC6-W6-NC Product Photo

CA-MIC6-W6-NC 6-Pin Micro Connector / Unterminated, 6-Wire Discrete Cable

A 6-pin micro connector on one end of six individual discrete 26 AWG wires. The standard length is 1 ft., and available in 1 ft. increments up to 500 ft....

More CA-MIC6-W6-NC Details

US Digital CA-PCL6-SH-NC CA-PCL6-SH-NC Product Photo

CA-PCL6-SH-NC 6-Pin Pico-Clasp Connector / Unterminated, Shielded

A 6-pin Molex Pico-Clasp (# 5013300600) series, 1.0mm pitch plug connector on one end of a 6-conductor round shielded 28 AWG cable. This cable has a temperature range of -40C...

More CA-PCL6-SH-NC Details

US Digital CA-RC7-SH-NC CA-RC7-SH-NC Product Photo

CA-RC7-SH-NC 7-Pin MIL-C-5015 Connector / Unterminated, Shielded Cable

A 7-pin MIL-C-5015 female connector on one end of a 7-conductor shielded round 24 AWG cable. This low-temperature cable (-20C to +80C) is used with US Digital's HD25...

More CA-RC7-SH-NC Details

US Digital CA-RC10-SH-NC CA-RC10-SH-NC Product Photo

CA-RC10-SH-NC 10-Pin MIL-C-5015 Connector / Unterminated, Shielded Cable

A 10-pin MIL-C-5015 female connector on one end of a 12-conductor shielded round 24 AWG cable. This low-temperature version has a range of -20C to +80C. The standard length is...

More CA-RC10-SH-NC Details
