CA-LC5-W5-NC 5-Pin High-Retention Connector / Unterminated, 5-Wire Discrete Cable

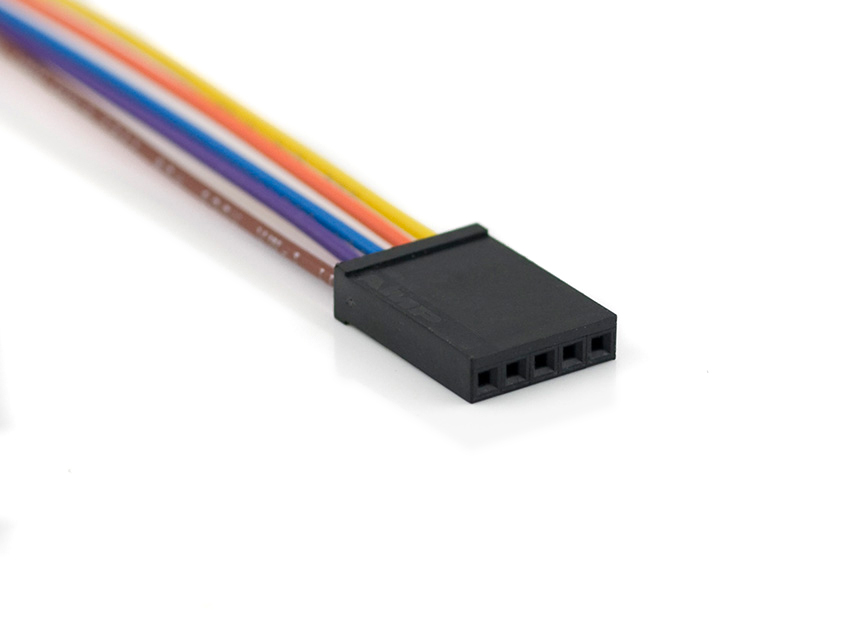

Ca Lc5 W5 Nc Webproduct 01 Product Photo

CA-LC5-W5-NC Features

See more info below

Configure the CA-LC5-W5-NC

CA-LC5-W5-NC Product Description

Restriction of Hazardous Substances

A 5-pin high-retention connector on one end of five individual discrete 22 AWG wires. This cable is compatible with the E2, E3, H1, H3, S1, S2 encoders and with the EM1 and EM2 encoder modules.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN DESCRIPTION COLOR
1 Ground Brown
2 Index Violet
3 A Channel Blue
4 +5VDC Power Orange
5 B Channel Yellow

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
