CA-FC5-SH-LC5 5-Pin Latching Connector / 5-Pin Locking Connector, Shielded Cable

CA FC5 SH LC5 Webproduct 01 Product Photo

CA-FC5-SH-LC5 Features

See more info below

Configure the CA-FC5-SH-LC5

CA-FC5-SH-LC5 Product Description

Restriction of Hazardous Substances

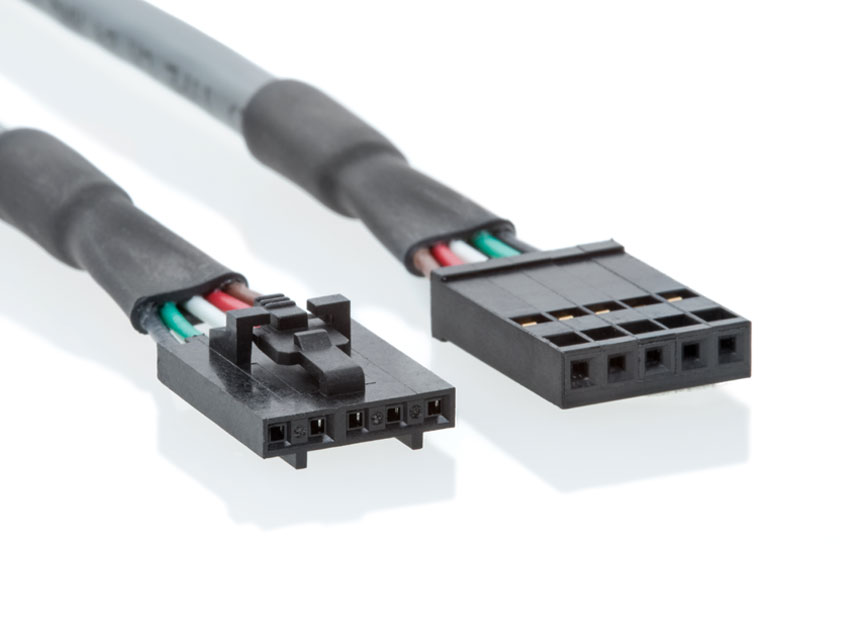

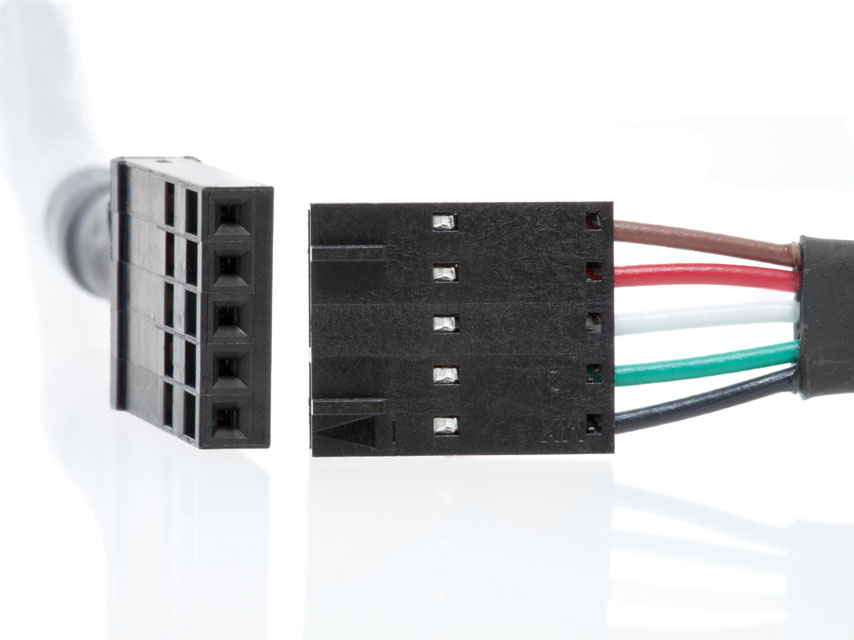

A 5-pin female polarized latching connector connected to a 5-pin female locking connector via a 5-conductor round shielded 24 AWG cable. The locking connector is typically used to connect to US Digital's E2, E3, H1, H3, S1, or S2 encoder, while the latching connector mates with an encoder interface input found on the ED3 Digital Encoder Display.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN DESCRIPTION COLOR
1 Ground Black
(drain connected on one end)
2 Index Green
3 A channel White
4 +5VDC power Red
5 B channel Brown
