CA-FC5-SH-RC7 5-Pin Latching Connector / 7-Pin MIL-C-5015 Connector, Shielded Cable

CA FC5 SH RC7 Webproduct 01 Product Photo

CA-FC5-SH-RC7 Features

See more info below

Configure the CA-FC5-SH-RC7

CA-FC5-SH-RC7 Product Description

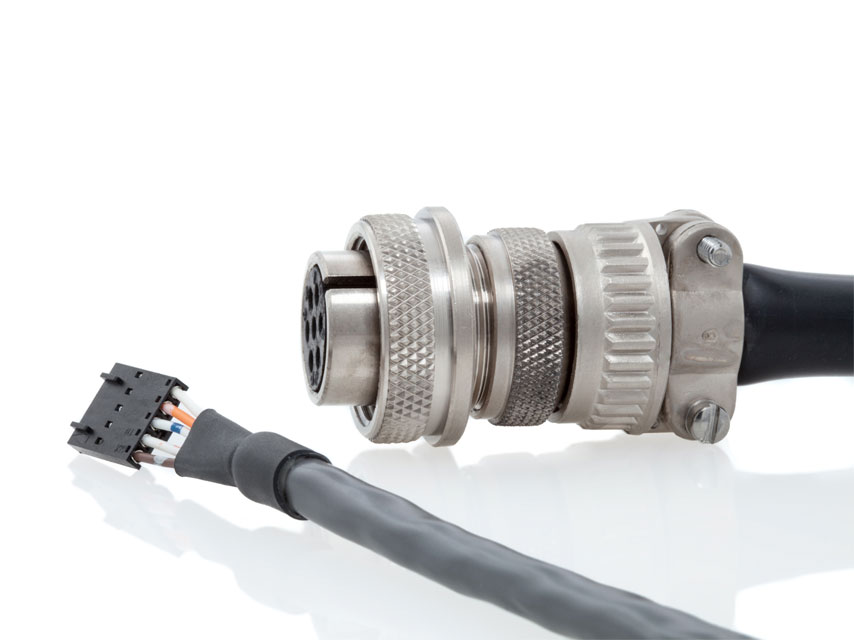

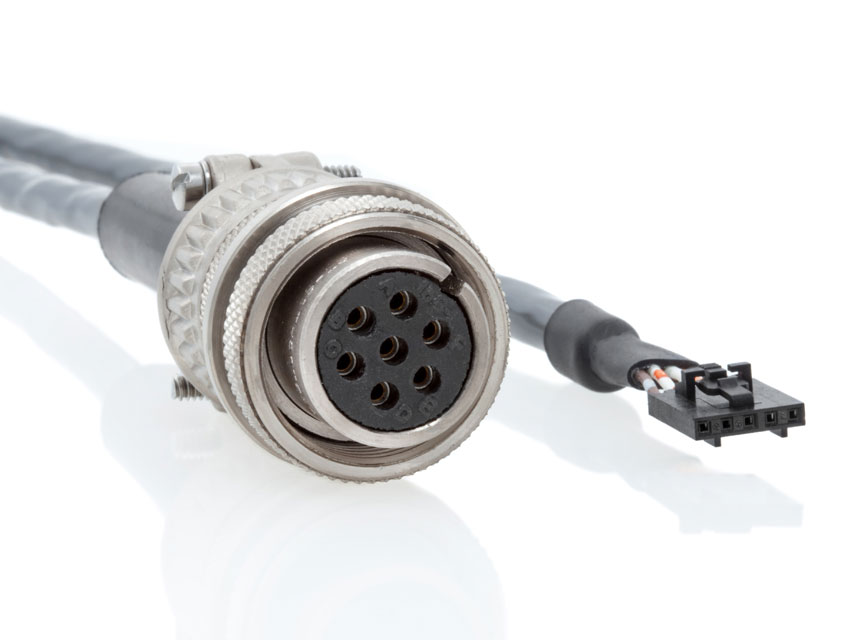

This shielded cable connects to US Digital's HD25 Industrial Rugged Metal Optical Encoder via a circular 7-pin screw-on connector, and it has a 5-pin latching connector on the other end. It is typically used to convey quadrature and index channels from the HD25 to an encoder interface with single-ended inputs like the QSB, USB4 and the ED3.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN OUT

5-Pin Side:



PIN DESCRIPTION COLOR
1 Ground Brown /White Stripe
2 Index White / Orange Stripe
3 A channel White / Blue Stripe
4 +5VDC power Orange / White Stripe
5 B channel White / Brown Stripe



7-Pin Side:

PIN DESCRIPTION COLOR
A A Channel White / Blue Stripe
B B Channel White / Brown Stripe
C I Channel White / Orange Stripe
D +VDC Orange / White Stripe
E - -
F Common Brown / White Stripe
G - -
