E8T Miniature Motor Encoder

E8t Webproduct 01 Product Photo

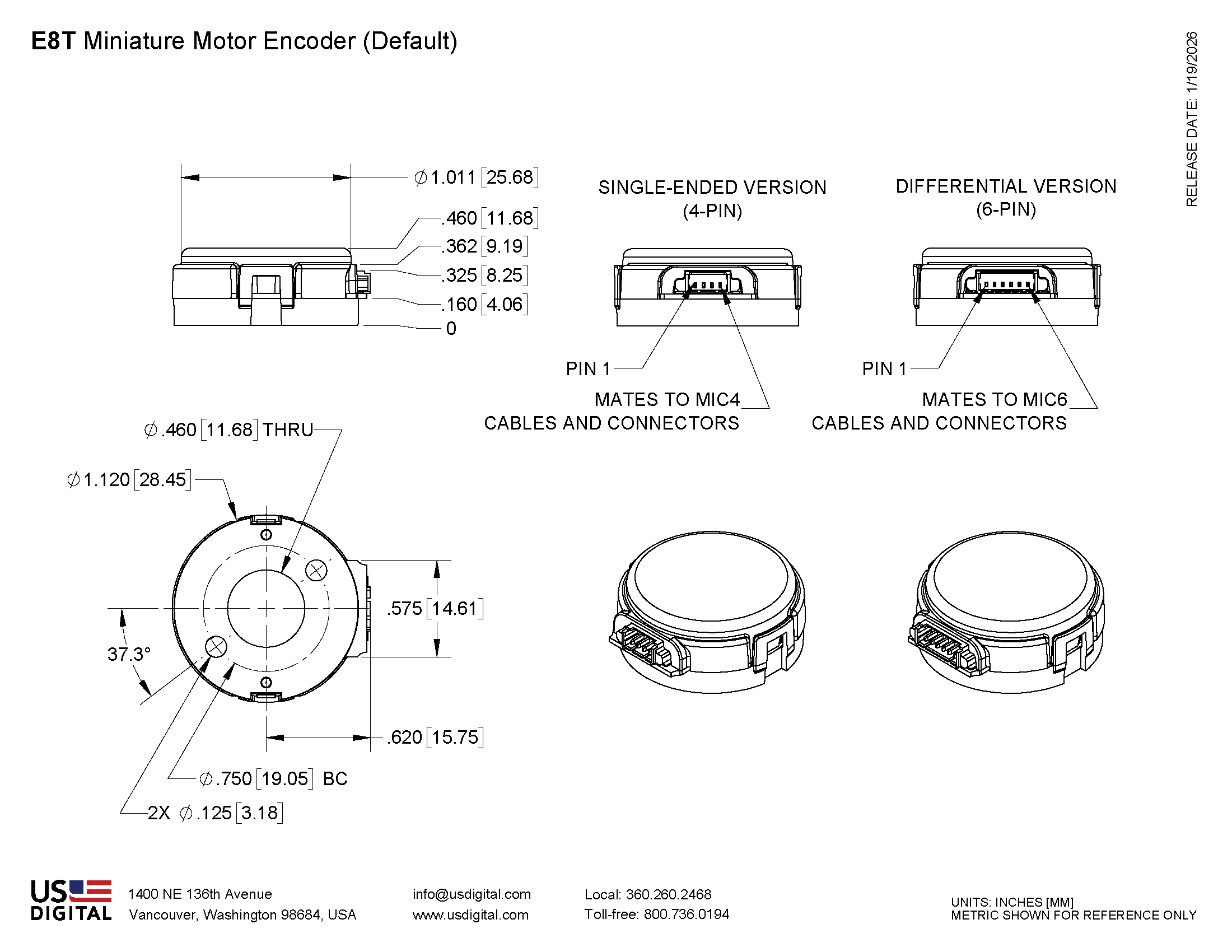

E8T Single Ended Mech Drawing Mechanical Drawing

View PDF

E8T Differential Mech Drawing Mechanical Drawing

View PDF

E8T Features

  • Kit version for mounting on a motor or other shaft
  • Supports 10 shaft sizes (3 to 8 mm and 1/8 to 3/8 in.)
  • For NEMA 11-23 and larger motors
  • 9 Resolutions from 180 to 720 CPR (720 to 2,880 PPR)
  • Single-ended or optional Differential output
  • Choice of three base styles and two cover options
  • Push-on hub for quick assembly
  • High retention connector/cable (sold separately)

See more info below

Configure the E8T

US Digital E8T Motor Encoder Description

Restriction of Hazardous Substances

The US Digital E8T miniature motor encoder mounts directly to a motor or other rotating shaft. This incremental encoder uses a specially patterned optical disk on a precision-machined aluminum hub.

This disk, in combination with a custom detector, creates a system highly tolerant to mechanical misalignment. A push-on hub design and a robust, glass-filled polymer housing provide easy installation in space-limited applications.

The E8T mini motor encoder offers 9 available resolutions and compatibility with 10 shaft sizes, 3 base configurations, and 2 cover styles, enabling it to fit a wide range of applications. Users can choose between single-ended or differential outputs.

This optical encoder is designed for use with a high-retention connector. After making each selection in the Product Configurator, compatible cables and connectors will be displayed below and must be purchased separately.

Please Note: Due to the E8T's design, it is recommended for use as a one-time installation.

Product Specifications

ENVIRONMENTAL

PARAMETER VALUE UNITS
Operating Temperature -20 to 100 C
Electrostatic Discharge, IEC 61000-4-2
Single-ended (-S option)
Differential (-D option)
± 12
± 7
kV
Vibration (10Hz to 2kHz, sinusoidal) 20 G
Shock (6 milliseconds, half-sine) 75 G

MECHANICAL

PARAMETER VALUE UNITS
Max. Shaft Axial Play ± .010 in.
Max. Shaft Runout 0.002 T.I.R. in.
Max. Acceleration 250000 rad/sec²

Maximum RPM (1)



Maximum A/B Frequency
e.x. CPR = 200, Max. RPM = 30000

minimum value of
((6 x 10^6)/CPR)
and (60000)

100

RPM



kHz
Codewheel Moment of Inertia 1.789 x 10^-6 oz-in-s²
Mounting Screw Size
Default (D-option), 1.28" base (G-option)
Metric (M-option)
#4-40 x 3/16
M2.5 x 5
in.
mm
Screw Bolt Circle Diameter
Default (D-option), Metric (M-option)
1.28" base (G-option)


0.75 ±0.005
1.28 ±0.005
in.
Minimum Shaft Length (2) 0.295 in.
Maximum Shaft Length (2) 0.400 (D option) /
no limit (H option) 		 in.
Mounting Screw Torque 2-3 in-lbs
Technical Bulletin TB1001 - Shaft and Bore Tolerances Download

(1) 60000 RPM is the maximum rpm due to mechanical considerations. The maximum RPM due to the module's maximum frequency response is dependent upon the module’s resolution (CPR).

(2) Including axial play.

PHASE RELATIONSHIP



PARAMETER MIN. TYP. MAX. UNITS
Symmetry, S 105 180 255 electrical degrees
Quadrature Delay, Q 30 90 150 electrical degrees

(1) A leads B for clockwise shaft rotation, B leads A for counter-clockwise shaft rotation viewed from the cover side of the encoder.

(2) Typical values represent the encoder performance at typical mounting alignment, whereas the maximum values represent the encoder performance across the range of recommended mounting tolerance.

SINGLE-ENDED ELECTRICAL

SPECIFICATIONS MIN. TYP. MAX. UNITS NOTES
Supply Voltage 4.5 5.0 5.5 V
Supply Current   25 30 mA no load
Low-level Output     0.4 V IOL = 8 mA
  0.035   V no load
High-level Output 2.4     V IOH = -8 mA
  4.0   V no load
Output Rise Time   100   ns no load
Output Fall Time   50   ns no load

DIFFERENTIAL ELECTRICAL

SPECIFICATIONS MIN. TYP. MAX. UNITS NOTES
Supply Voltage 4.5 5.0 5.5 V
Supply Current   27 32 mA no load
Differential Output Voltage High 4.75 5.0   V Min. @ 25mA load, Typ. @ no load
Differential  Output Voltage Low   0.25 0.60 V Typ. @ no load, Max. @ 4.5mA load
Differential Output Voltage 3.0 3.8   V RL = 100 ohm
Differential Output Rise/Fall Time     20 ns

PIN-OUTS

4-PIN SINGLE-ENDED (1) 6-PIN DIFFERENTIAL (2)
Pin Description Pin Description
1 +5VDC power 1 Ground
2 A channel 2 A channel
3 Ground 3 A- channel
4 B channel 4 +5VDC power
    5 B channel
    6 B- channel

(1) 4-pin single-ended mating connector is CON-MIC4
(2) 6-pin differential mating connector is CON-MIC6

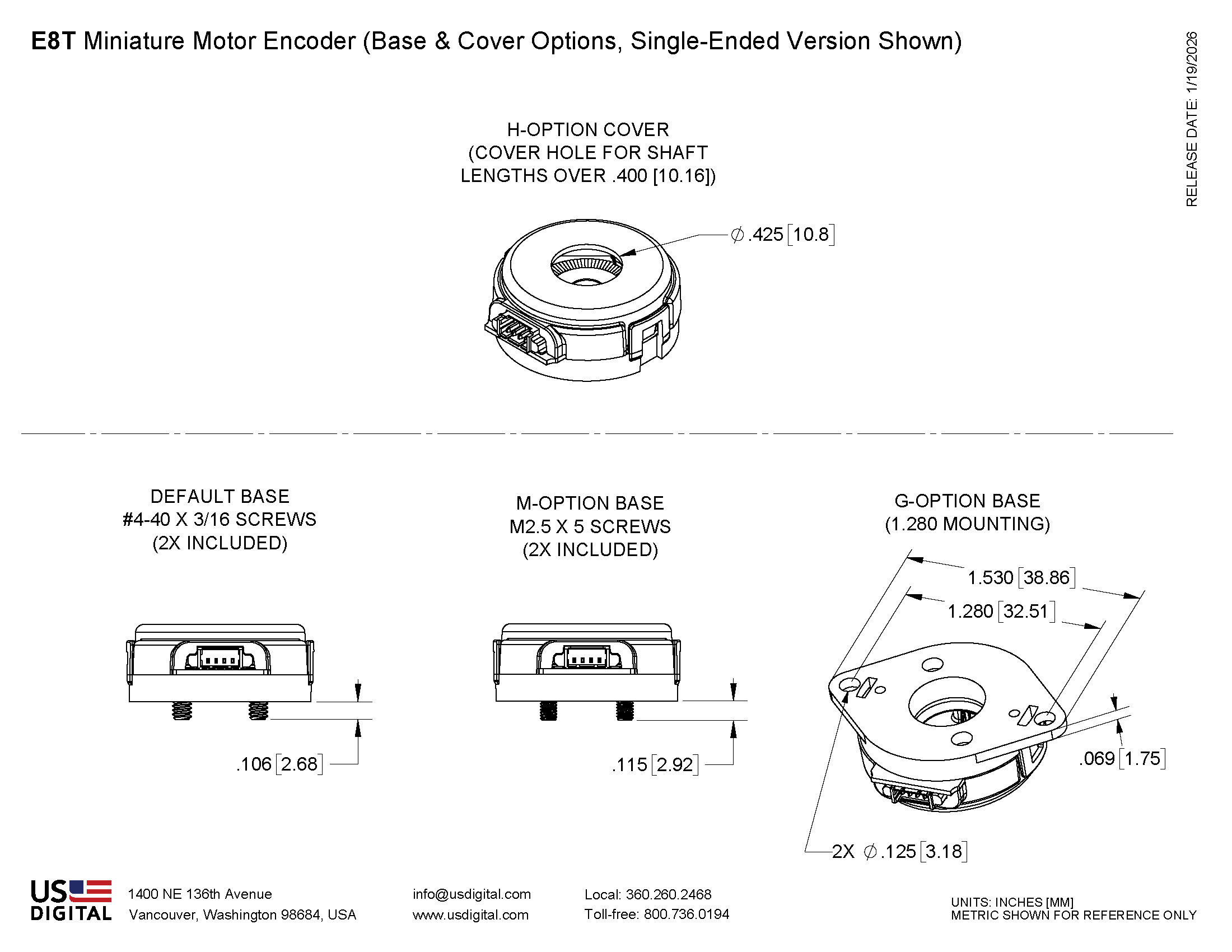

OPTIONS

H-OPTION (HOLE IN COVER)

The H-option adds a 0.425" diameter hole in the cover for the shaft to pass through.

M-OPTION (METRIC MOUNTING SCREWS WITH DEFAULT BASE)

Provides metric M2.5, length 5mm screws. When M-option is NOT specified the default is #4-40, length 0.188" screws. The mounting bolt circle diameter is 0.75"

G-OPTION (1.28" DIAMETER BOLT CIRCLE MOUNT)

Provides 1.28" diameter bolt circle mount in addition to 0.75" diameter bolt circle mount. Screws are #4-40, length 0.188"

ACCESSORIES

1. Centering Tool*

Part #: CTOOL - (Shaft Diameter)
Description: This reusable tool is used to accurately center the E8T base on the shaft.

2. Spacer Tool*

Part #: SPACER-E8T
Description: This reusable tool is used to properly gap the codewheel from the encoder sensor.

*Both the CTOOL and SPACER-E8T tools are included with all packaging options.

3. Screws

Part #: SCREW-440-188-PH
Description: Pan Head, Philips #4-40 UNC x 3/16"
Use: Base Mounting
Quantity Required: 2
Screws are included

Part #: SCREW-M25-5MM-PH
Description: Pan Head, Phillips M2.5 x 0.45 x 5mm
Use: Base Mounting
Quantity Required: 2
Screws are included

PRODUCT CHANGE NOTIFICATIONS

Title Date Description Download
E4T, E8T Packaging - PCN 7195 2/16/2022 As part of our ongoing continuous improvement efforts, US Digital is implementing a change to our packaging options for
our E4T and E8T kit encoders.		 Download
Updated PCB on the US Digital E8T - PCN 6514 5/16/2018 This notice is to inform our customers of a PCB design change that is being implemented for the entire E8T product line. As part of our continuous improvement objective, the new PCB will improve overall product performance and enhance the robustness of this product line. The new PCB has two mounting holes that mate with the base plate instead of one hole and one slot. This change has no impact on form, fit or function for the E8T. Download
E4T, S4T, and E8T Laser Markings - PCN 6227 8/8/2017 This notification is to inform our customers of a change to product markings for the E4T, E8T, and S4T series of encoders. The new marking will be utilized across all three product lines. We are making this change to improve readability for our customers and to provide consistency across the product lines. Download

Additional Information

Product Notes

  • Cables and connectors are not included and must be ordered separately.
  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.

Datasheets

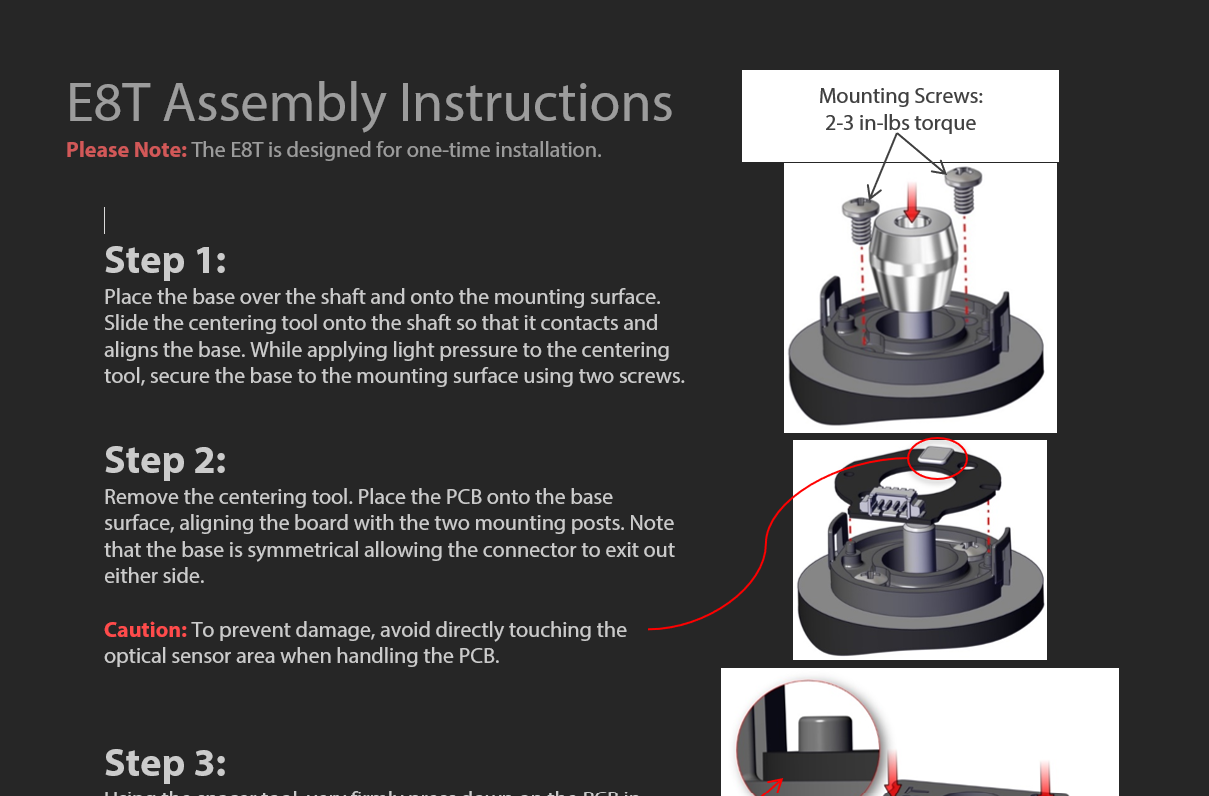

Assembly Instructions & Videos
