CA-MD3 USB to RS485 Adapter Cable for MD3

CA-MD3 Product Description

Restriction of Hazardous Substances

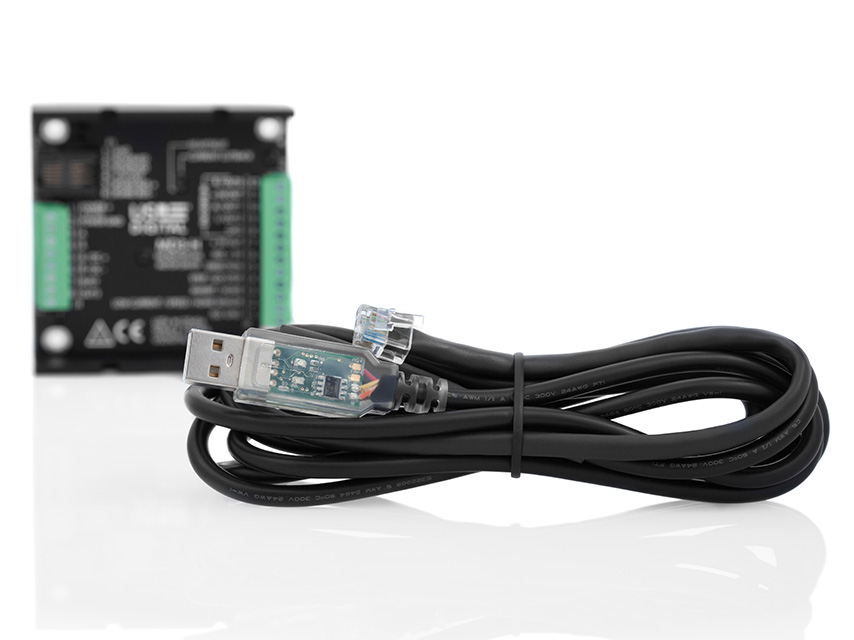

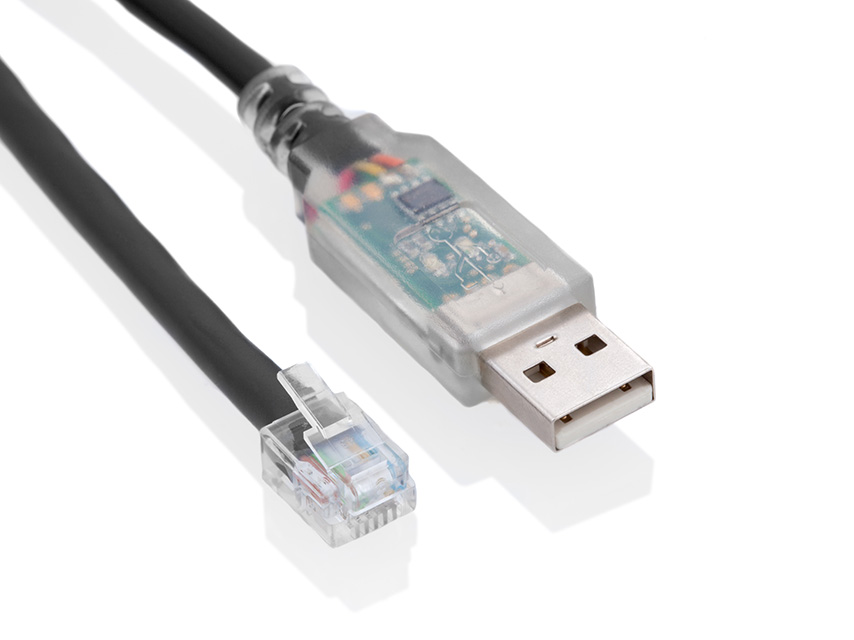

The CA-MD3 is an interface cable that connects a PC's USB port to an RS485 interface. The RS485 connector is a 6-pin RJ25 modular connector, and designed for US Digital's MD3 stepper motor driver/controller but may be used with other RS485 devices.


WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

RJ25 PIN DESCRIPTION
1 GND
2 NC
3 NC
4 NC
5 RS485 Bus+
6 RS485 Bus-

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
