CA-FC5-SH-MIC4 Cable, Shielded, 5-Pin Latching Connector to 4-Pin Micro Connector, Shielded Cable

CA FC5 SH MIC4 Webproduct 01 Product Photo

CA-FC5-SH-MIC4 Features

See more info below

Configure the CA-FC5-SH-MIC4

CA-FC5-SH-MIC4 Product Description

Restriction of Hazardous Substances

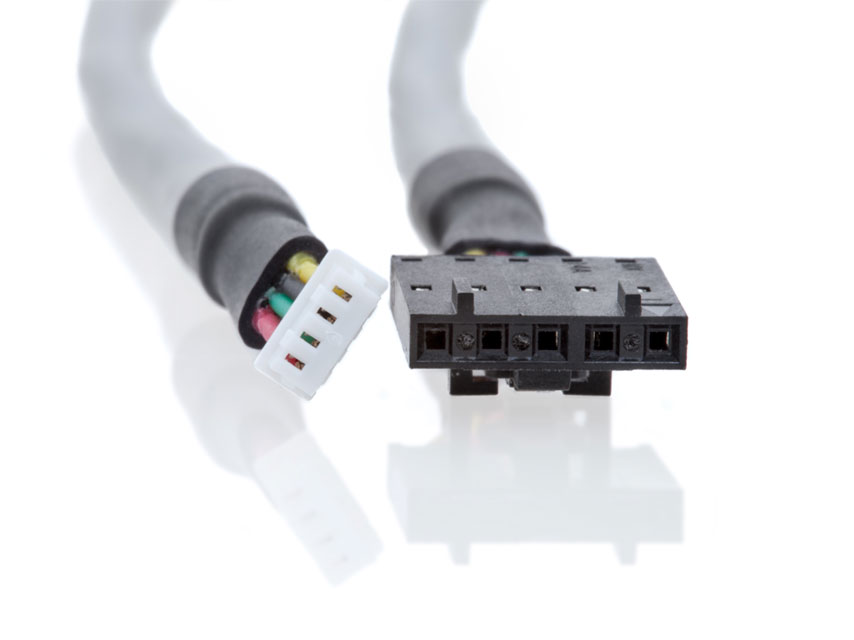

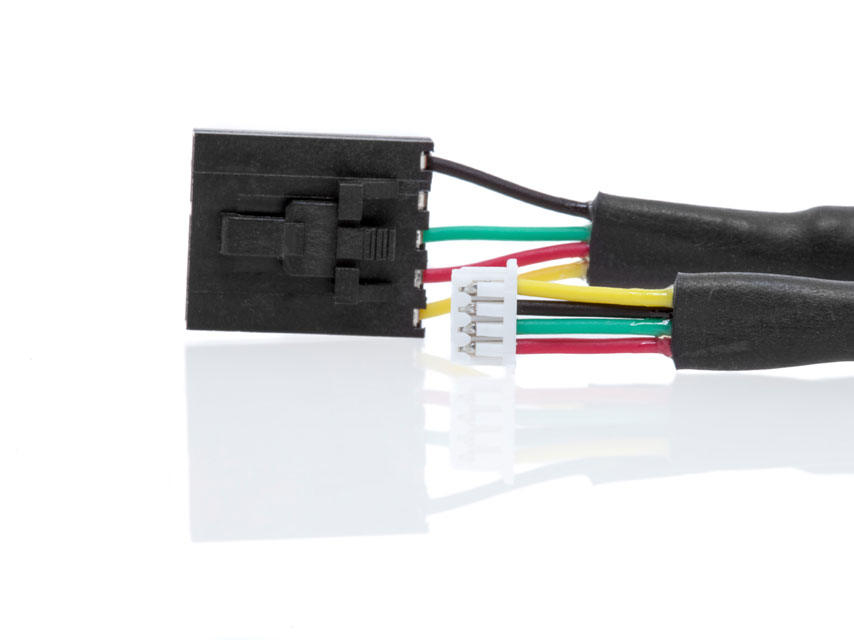

This shielded cable has 26 AWG conductors, a 5-position latching connector (Molex 14-60-0052) on one end and a 4-pin Molex micro-connector (consisting of a housing (51021-0400), and 4 crimp terminals (50079-8001)) on the other end. This cable is used with several different products in our offerings, such as connecting US Digital's E4T or E8T miniature optical kit encoder to an interface product that accepts a 5-pin latching connector.
