CA-FC10-W8-NC 10-Pin Latching Connector / Unterminated, 8-Wire Discrete Cable

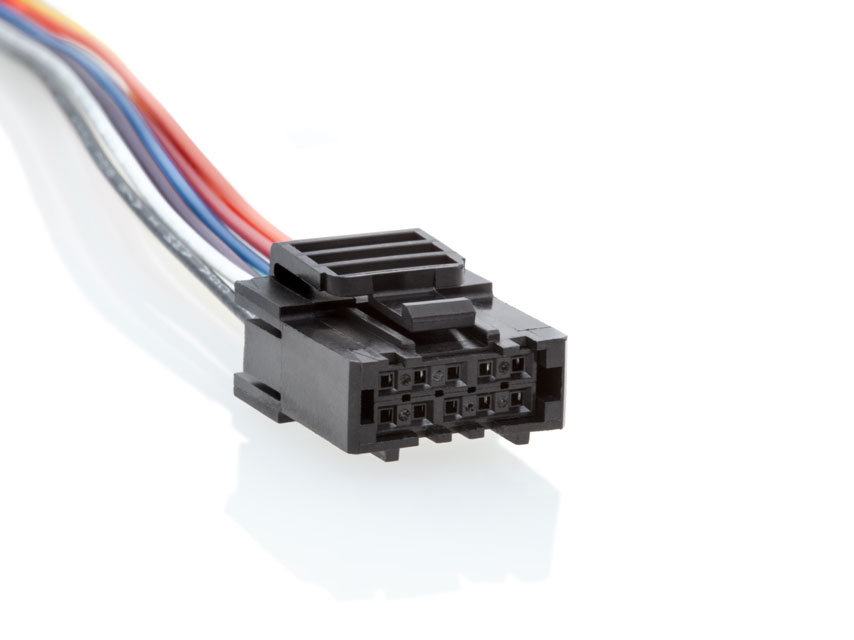

CA FC10 W8 NC Webproduct 01 Product Photo

CA-FC10-W8-NC Features

See more info below

Configure the CA-FC10-W8-NC

CA-FC10-W8-NC Product Description

Restriction of Hazardous Substances

A 10-pin female polarized latching connector on one end of eight individual discrete 22 AWG wires.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN DESCRIPTION COLOR
1 - -
2 Ground Black
3 I- channel White
4 I+ channel Violet
5 A- channel Green
6 A+ channel Blue
7 Power Red
8 - -
9 B- channel Orange
10 B+ channel Yellow

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
