HUBDISK-1 1 in. Transmissive Rotary Disk

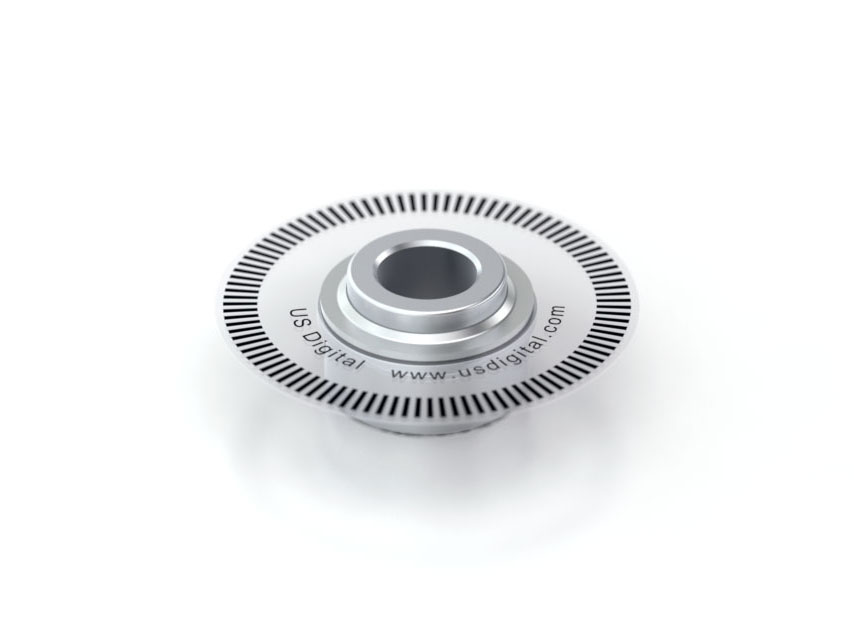

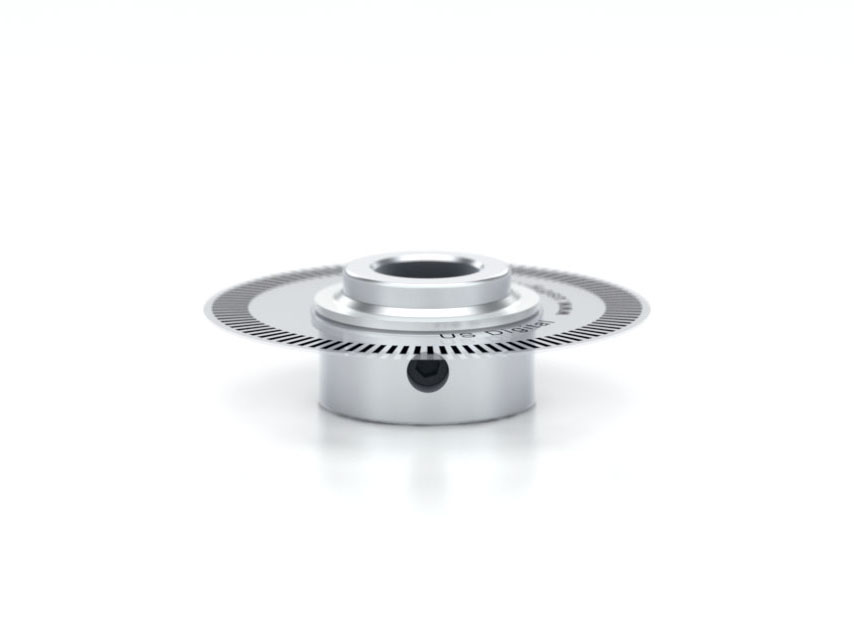

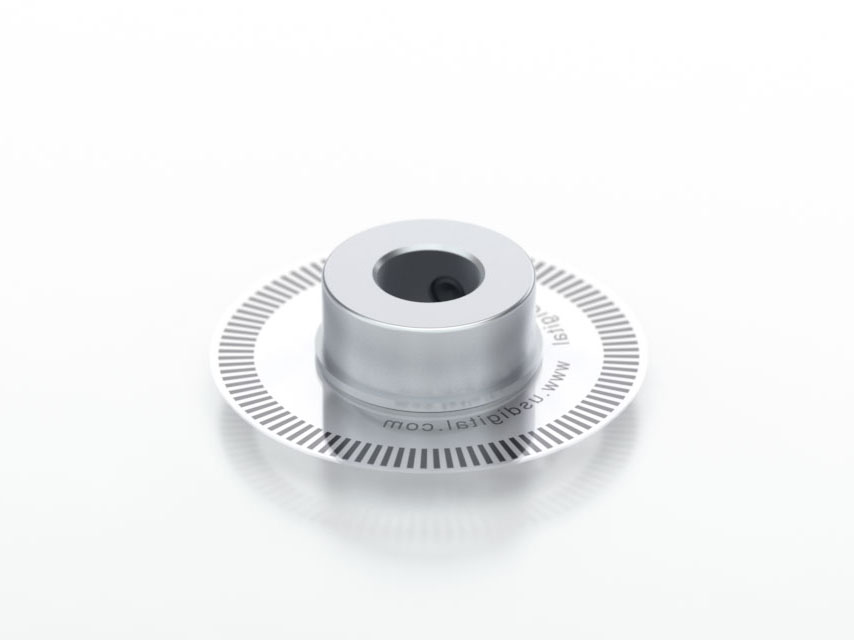

Hubdisk1 Webproduct 01 Product Photo

HUBDISK-1 Features

  • 1 in. disk with mounting hub
  • Supports 14 shaft sizes (2 to 10 mm and 1/8 to 3/8 in.)
  • 32 to 5,000 CPR (128 to 20,000 PPR)
  • Optional Index location

See more info below

Configure the HUBDISK-1

HUBDISK-1 Product Description

Restriction of Hazardous Substances

HUBDISK-1 consists of a 1 in. diameter optical encoder disk (DISK-1) mounted on a precision machined aluminum hub. The disk is made from 0.007 in. thick Mylar filme and a set screw is used to secure the hub to a shaft. The HubDisk assembly is available with 14 bore sizes ranging from 2mm to 10mm. All hub bores are held to a tight tolerance defined by US Digital Technical Bulletin, Shaft and Bore Tolerances TB1001.

US Digital offers a wide variety of standard HubDisk assemblies (optical encoder disk attached to an aluminum hub) to aid mounting onto a shaft. Encoder disks may also be ordered as stand-alone items. The rotary encoder disks are made from 0.007 in. thick Mylar polyester film, and the material allows for a -40C to 100C temperature range. The disk on the HubDisk assembly comes attached with the emulsion side up when the disk text is right-reading.



Product Specifications

SPECIFICATIONS

Temperature Range -40C to 100C
Hub Set Screw Torque 2-3 in-lbs

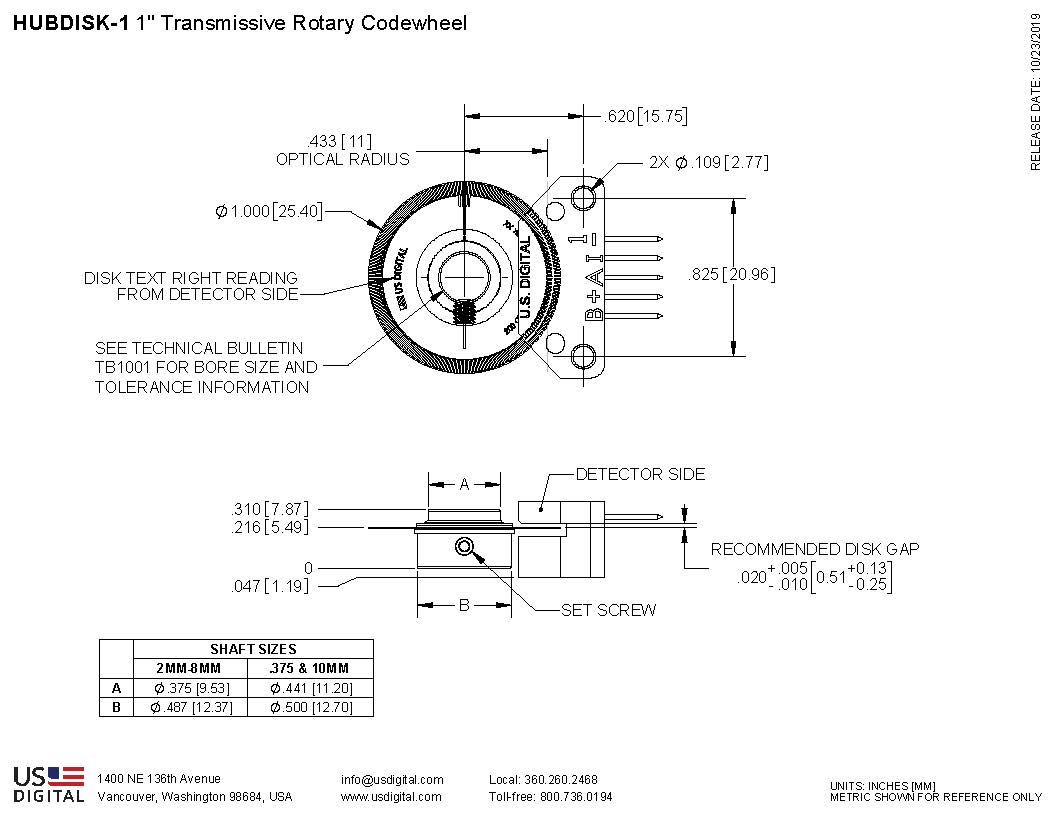

Bore Diameter Tolerance See Technical Bulletin TB1001
Outside Disk Diameter (OD) 1" ± 0.010 in.
Disk Thickness 0.007"

TECHNICAL BULLETINS

TITLE DOWNLOAD
Technical Bulletin TB1001 - Shaft and Bore Tolerances Download

PRODUCT CHANGE NOTIFICATIONS

Title Date Description Download
HUBDISK-1 Packaging Change Notification - PCN 6297 4/30/2018 As part of our ongoing continuous improvement efforts, US Digital is implementing a change to the packaging of our 1-inch Hubdisk assemblies.

We are replacing the current plastic tube packaging with a 25-count plastic tray. The tray is a two-piece design with snap-on lid and anti-static coated for ESD sensitive environments. This change is designed to enhance the ease of handling for our customers, easy removal of the individual hubdisk, and protection against potential damage due to long-term storage of hubdisk assemblies.

This change does not affect form, fit, or function of the final product.		 Download
Hub Set Screw Production Change - PCN 5367 7/20/2015 As part of our ongoing continuous improvement efforts, US Digital is implementing a change related to the production of our 5/16" (.313), 8mm (.315), 3/8" (.375), and 10mm (.394) HUBDISK assemblies. We are adding a low strength threadlocker to the set screw during our assembly process to assist in securing the set screw in the hub during transportation. This will aid in the set screw retention of these specific hub sizes; ensuring the retention is sufficient and avoid the potential of them backing out of the hub assembly during transit. This change does not affect form, fit or function. Download

COMPATIBLE ENCODER MODULES

CPR 1" HUBDISK
Non-Index		 MODULE
Non-Index		 1" HUBDISK
Index		 MODULE
Index
32 HUBDISK-1-32-*-NE EM1-1-32-N
50 HUBDISK-1-50-*-NE EM1-1-50-N HUBDISK-1-50-*-IE EM1-1-50-I
96 HUBDISK-1-96-*-NE EM1-1-100-N HUBDISK-1-96-*-IE EM1-1-100-I
100 HUBDISK-1-100-*-NE EM1-1-100-N HUBDISK-1-100-*-IE EM1-1-100-I
120 HUBDISK-1-120-*-NE EM1-1-100-N
200 HUBDISK-1-200-*-NE EM1-1-200-N HUBDISK-1-200-*-IE EM1-1-200-I
192 HUBDISK-1-192-*-NE EM1-1-200-N HUBDISK-1-192-*-IE EM1-1-200-I
250 HUBDISK-1-250-*-NE EM1-1-250-N HUBDISK-1-250-*-IE EM1-1-250-I
256 HUBDISK-1-256-*-NE EM1-1-250-N HUBDISK-1-256-*-IE EM1-1-250-I
360 HUBDISK-1-360-*-NE EM1-1-360-N HUBDISK-1-360-*-IE EM1-1-360-I
400 HUBDISK-1-400-*-NE EM1-1-400-N HUBDISK-1-400-*-IE EM1-1-400-I
500 HUBDISK-1-500-*-NE EM1-1-500-N HUBDISK-1-500-*-IE EM1-1-500-I
512 HUBDISK-1-512-*-NE EM1-1-512-N HUBDISK-1-512-*-IE EM1-1-512-I
540 HUBDISK-1-540-*-NE EM1-1-540-N HUBDISK-1-540-*-IE EM1-1-540-I
720 HUBDISK-1-720-*-NE EM1-1-720-N HUBDISK-1-720-*-IE EM1-1-720-I
800 HUBDISK-1-800-*-NE EM1-1-800-N HUBDISK-1-800-*-IE EM1-1-800-I
900 HUBDISK-1-900-*-NE EM1-1-900-N HUBDISK-1-900-*-IE EM1-1-900-I
1000 HUBDISK-1-1000-*-NE EM1-1-1000-N HUBDISK-1-1000-*-IE EM1-1-1000-I
1024 HUBDISK-1-1024-*-NE EM1-1-1024-N HUBDISK-1-1024-*-IE EM1-1-1024-I
2000     HUBDISK-1-2000-*-IE EM2-1-2000-I
2048     HUBDISK-1-2048-*-IE EM2-1-2048-I
2500     HUBDISK-1-2500-*-IE EM2-1-2500-I
4000     HUBDISK-1-4000-*-IE EM2-1-4000-I
4096     HUBDISK-1-4096-*-IE EM2-1-4096-I
5000     HUBDISK-1-5000-*-IE EM2-1-5000-I



*Represents the bore size

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.

Datasheets

Related

3D Model Downloads

Please configure your product first to download a 3D model.
(Note: The formats below will become links if there are 3D models available.)

    • SolidWorks Format
    • IGES Format
    • Parasolid Format
    • STEP Format

    Product Configurator

    TO VIEW PRICING CHOOSE EITHER OPTION 1 OR 2 BELOW.

    Questions? Contact our support team.

    Option 1: Enter the Product Part Number

    Already have your part number (e.g., E5-5000-394-IE-S-D-D-3)? Enter it in the following field.

    Option 2: Build your Product

    Customize your product step-by-step. Need help? Our support team is here to help.

    We recommend enabling Javascript when using the product configurator.

    Saved Configurations ( ):

    + Add this configuration to your list
    Configurations currently in your list (0)
    GO TO LIST
