CA-RC7-SH-NC Cable, shielded, 7-position MIL-C-5015 Connector to Flying Leads

CA RC7 SH NC Webproduct 01 Product Photo

CA-RC7-SH-NC Features

See more info below

Configure the CA-RC7-SH-NC

CA-RC7-SH-NC Product Description

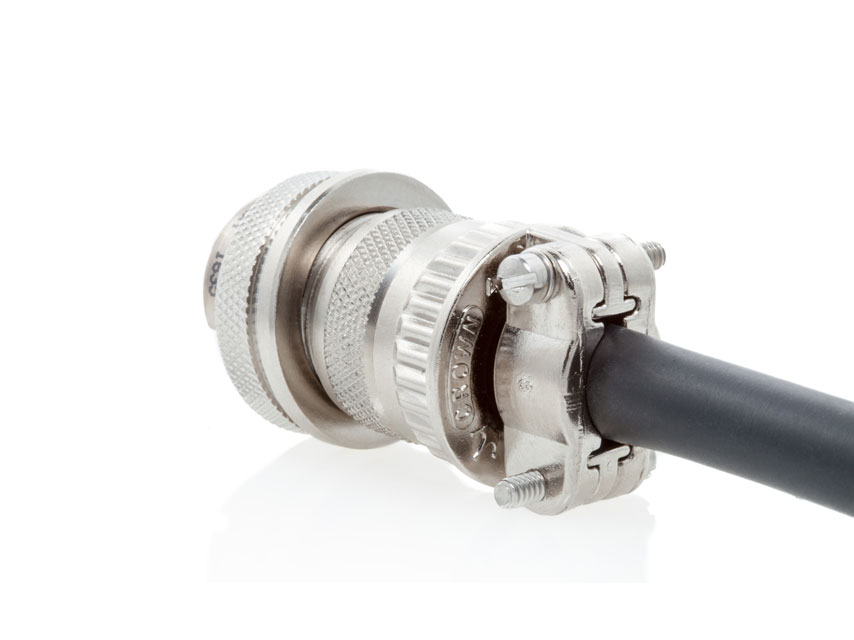

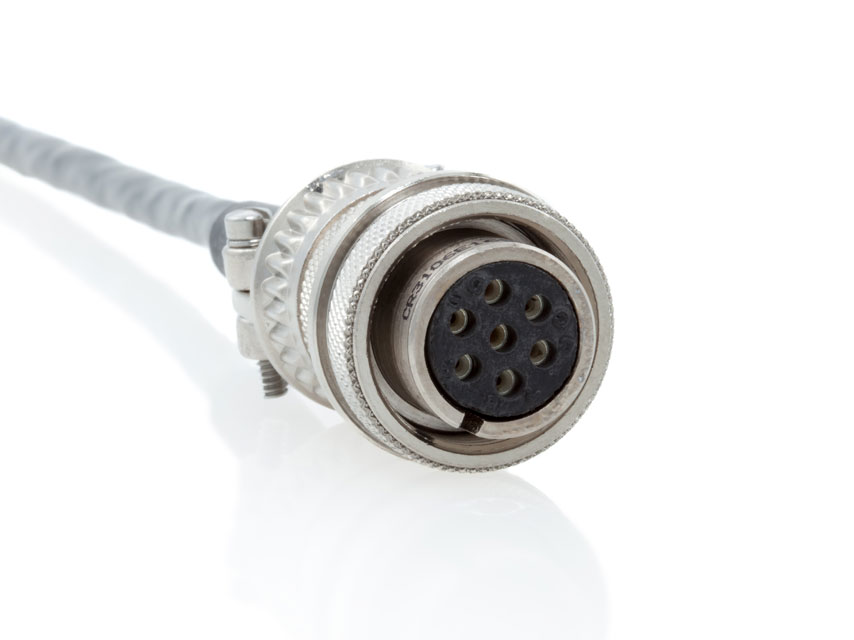

A 7-pin MIL-C-5015 female connector on one end of a 7-conductor shielded round 24 AWG cable. This low-temperature cable (-20C to +80C) is used with US Digital's HD25 Industrial Rugged Metal Optical Encoder.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN HD25DESCRIPTION COLOR
A A Channel White / Blue stripe
B B Channel White / Brown stripe
C* I Channel White / Orange stripe
D +VDC Orange / White stripe
E Case Ground Brown / White stripe
F Common Blue / White stripe
G - Green / White stripe

* Only available when Index channel is specified.
