CA-FC10P-SH-NC 10-Pin Latching Connector / Unterminated, Shielded Cable (QSB-D QSB-M Pin-Out)

CA-FC10P-SH-NC Product Description

Restriction of Hazardous Substances

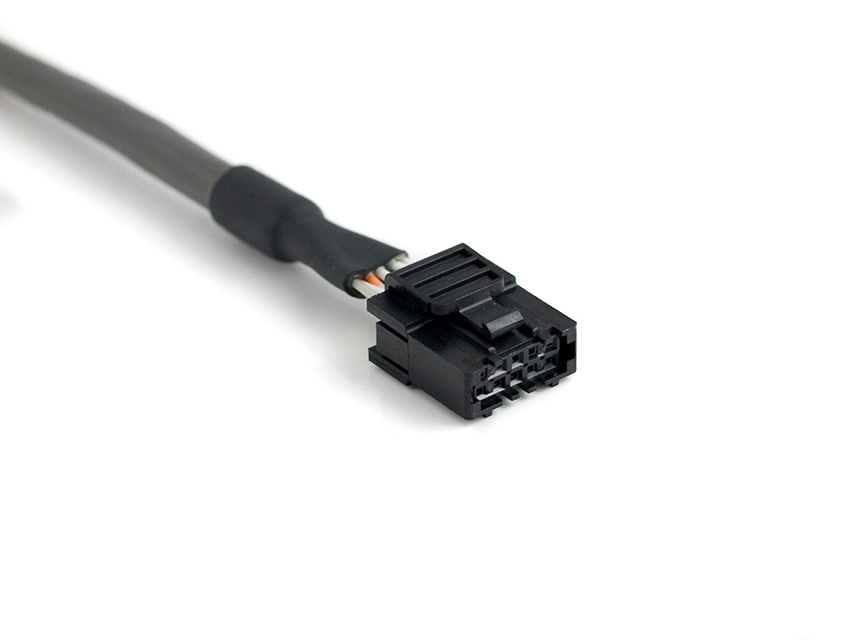

A 10-pin female polarized latching connector on one end of a 10-conductor round shielded twisted pair 24 AWG cable.

Please note: This cable is intended for use with the digital I/O port on US Digital's QSB-D/QSB-M Quadrature to USB Adapter only.


WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN DESCRIPTION
(QSB-D)
DESCRIPTION
(QSB-M)
COLOR
1 Digital I/O Channel 0 Digital I/O Channel 0 Orange / White Stripe
2 Ground Ground Green / White Stripe
3 Index- Digital I/O Channel 1 or
Motor Step
White / Orange Stripe
4 Index+ Index Red / White Stripe
5 A-/PWM0- Digital I/O Channel 2 or
Motor Direction
Blue / White Stripe
6 A+ or EAN0 or PWM0+ A Channel or EAN0 or PWM0 White / Red Stripe
7 +5 Volts +5 Volts White / Green Stripe
8 No connection +5 Volts Brown / White Stripe
9 B- Digital I/O Channel 3  White / Blue Stripe
10 B+ B Channel White / Brown Stripe

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
