CA-C10-SH-NC Product Description

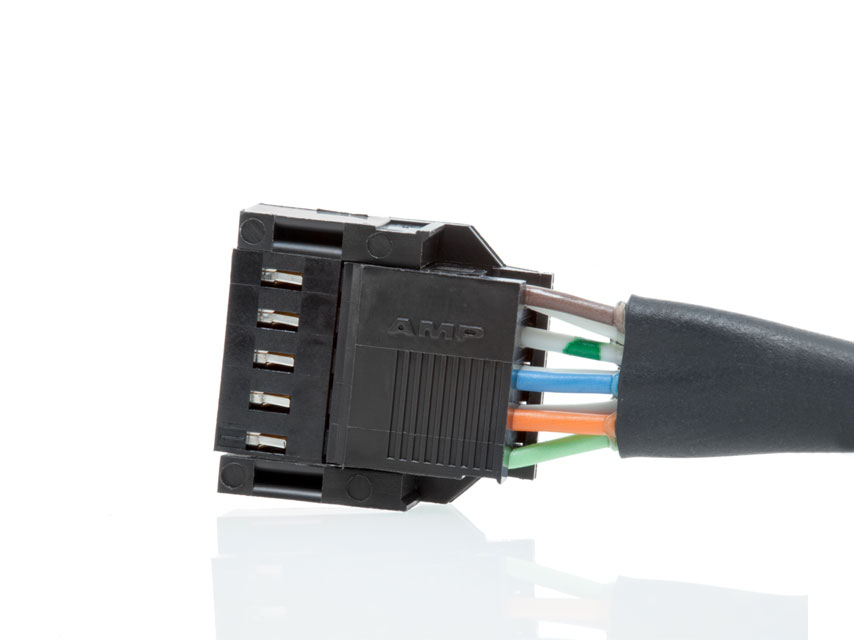

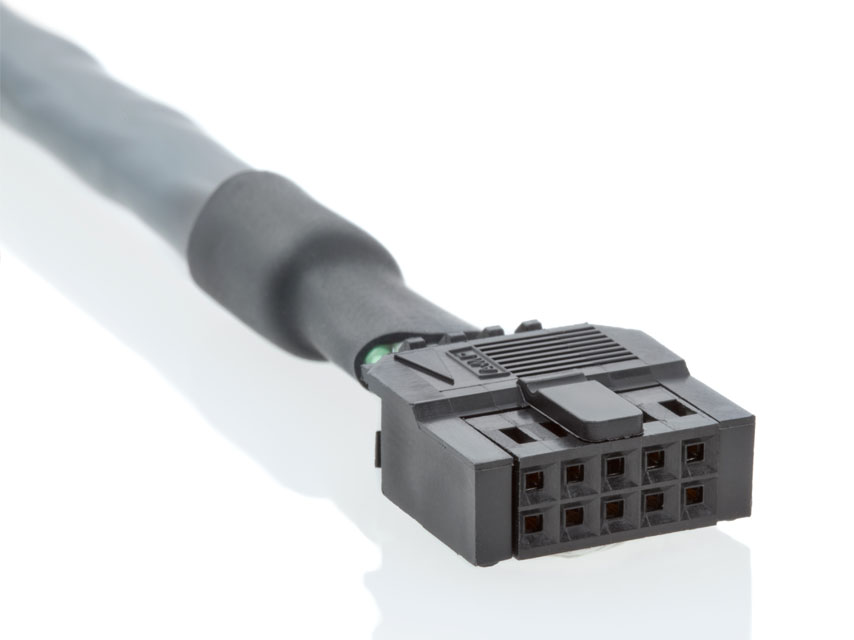

The CA-C10-SH-NC cable has a 10-pin female standard (non-latching) connector on one end of an 8-conductor round shielded twisted pair 24 AWG cable; the other end is unterminated. The unterminated end may be wired to a customer-supplied connector or terminal strip.
Please note: This cable is normally used with our PC4 differential cable driver since the PC4 does not support the latching connector feature built into encoders like our E5 and E6 .
WARNING: This product can cause exposure to substances, such as phthalate plasticizers , known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65 .
Product Specifications
PIN-OUT
PIN
DESCRIPTION
COLOR
1
-
-
2
Ground
Green / White Stripe
3
I- channel
White / Orange Stripe
4
I+ channel
Orange / White Stripe
5
A- channel
White / Blue Stripe
6
A+ channel
Blue / White Stripe
7
Power
White / Green Stripe
8
-
-
9
B- channel
White / Brown Stripe
10
B+ channel
Brown / White Stripe
