USB4 Software

Driver software for the US Digital USB4 Encoder Data Acquisition USB Device. All software and documentation needed to use the USB4 are available here.

USB4 Software

The functionality of the USB4 can quickly be demonstrated using the software provided in this download. This download contains a setup application that installs a USB4 driver and includes the option to select Drivers, C...

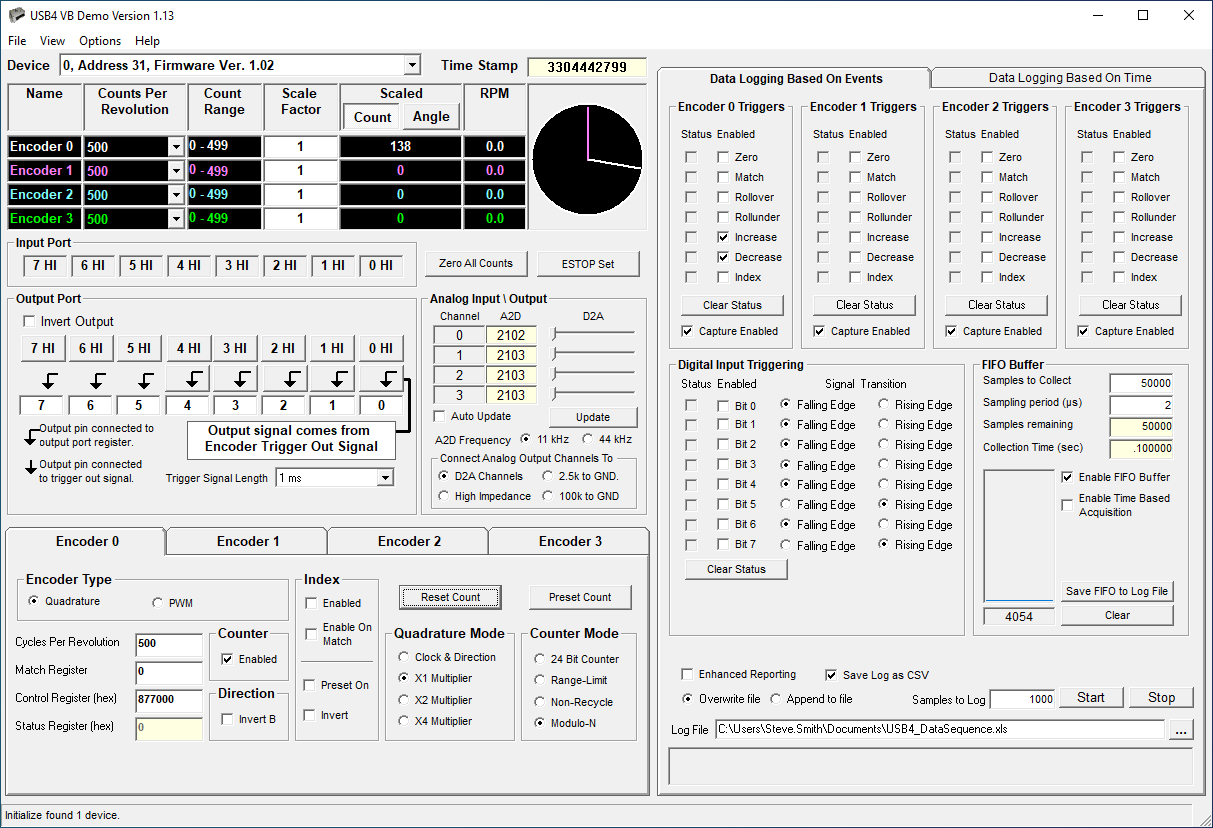

READ MORE (Read me file)  |  VIEW SCREENSHOT
DOWNLOAD usb4setup_1-13.zip  (Version: 1.13 1/25/2022)

USB4 Software zip (READ ME file)

The functionality of the USB4 can quickly be demonstrated using the software provided in this download. This download contains a setup application that installs a USB4 driver and includes the option to select Drivers, C Demos, and/or Visual Basic Demos. Source code for the Demos are included in the installation.

Note: Please uninstall previous versions prior to installing this setup.

For the latest USB4 documentation, please refer to the USB4 Manual.doc.

Version:
This download contains an updated version of the USB4.dll which now has a FIFO buffer to PC transfer rate that is three times faster than the previous version.

The following software components are all found in USB4Setup_1.13.zip(version 1.13):

USB4.dll 1.13 (32-bit)
USB4.dll 1.13 (64-bit)
USB4Wrapper.dll 2.0.0.5
USDFourAxisDialControl.ocx 4.3.0.0
cyusb3.sys 1.2.3.10 (32-bit and 64-bit)

The following demos and source code are included:
C++:
ConsoleFIFOPolling.exe 1.0.0.4
ConsoleSpeedTest.exe 1.0.0.4
ConsoleTimeBasedDataLogging.exe 1.0.0.2
FIFOPollingDisplayRPM.exe 1.0.0.3
CHelloWorld.exe 1.0.0.1

DotNet:
USB4A2DAverage.exe 1.0.0.4
USB4CSharpCodeExamples.exe 1.0.0.3
USB4FIFOExample.exe 1.0.0.3
USB4_FIFOSpeedTest.exe 1.2
USB4HelloWorldC++.exe 1.0.0.2
USB4HelloWorldDemoVB.exe 2.2
USB4IODemo.exe 1.0.0.3
USB4MultipleDevices.exe 1.0.0.2
USB4Quad2Analog.exe 1.0.0.4
USB4TraceCounts.exe 1.0.0.3
USB4SignalGenerator.exe 1.0.0.1

Python:
USB4_HelloWorld.py

VB6:
USB4_VBDemo.exe 1.11
VBHelloWorld.exe 1.00
MaxHeightRecorder.exe 1.00.0002
SimpleVBTest.exe 1.00.0001

Note: Both x86 and x64 builds of the USB4.dll have been included in this installation.



/media/zb4npg4i/usb4_image.png



download USB4 Software zip

File Name: usb4setup_1-13.zip
File Size: 41.45 Mb
OS Support: WINDOWS 10 | 32 BIT | 64 BIT
Version: 1.13 (1/25/2022)

By clicking "Download", you agree to US Digital's Terms & Conditions and Privacy Policy .

Cancel   Download

USB4 Linux Drivers

This download includes USB4 drivers for Ubuntu 12.04.5 LTS or later. The drivers, delivered as Debian packages, include a shared library 100% compatible with the Windows API, documentation, and all the files required to...

READ MORE (Read me file)
DOWNLOAD libusdusb4-1-3.zip  (Version: 1.3 7/13/2020)

USB4 Linux Drivers zip (READ ME file)

This download includes USB4 drivers for Ubuntu 12.04.5 LTS or later. The drivers, delivered as Debian packages, include a shared library 100% compatible with the Windows API, documentation, and all the files required to configure and run the USB4. Several demos show how to use different features of the hardware. See the README file in the package for more information.





download USB4 Linux Drivers zip

File Name: libusdusb4-1-3.zip
File Size: 1.59 Mb
OS Support: WINDOWS 10
Version: 1.3 (7/13/2020)

By clicking "Download", you agree to US Digital's Terms & Conditions and Privacy Policy .

Cancel   Download

USB4 LabView 2010 Library

The USB4 LabView 2010 Library provides a set of VI's that wrap each of the USB4 dll functions and a simple HelloWorld.VI that initializes communication with a USB4 device and displays a specified encoder count value.

READ MORE (Read me file)
DOWNLOAD labview-2010_1-9.zip  (Version: 1.9 11/24/2021)

USB4 LabView 2010 Library zip (READ ME file)

The USB4 LabView 2010 Library provides a set of VI's that wrap each of the USB4 dll functions and a simple HelloWorld.VI that initializes communication with a USB4 device and displays a specified encoder count value.





download USB4 LabView 2010 Library zip

File Name: labview-2010_1-9.zip
File Size: 1.22 Mb
OS Support: WINDOWS 10 | 32 BIT | 64 BIT
Version: 1.9 (11/24/2021)

By clicking "Download", you agree to US Digital's Terms & Conditions and Privacy Policy .

Cancel   Download

USB4 Drivers and Libraries

This download includes USB4 drivers and libraries for Windows OS. The following software components are all found in:USB4DriversAndLibrarySetup.zip (version 1.12):USB4.dll 32-bit and 64-bit (version 1.12)cyusb3.sys 1.2.3.10...

READ MORE (Read me file)
DOWNLOAD usb4driversandlibrarysetup_1-13.zip  (Version: 1.13 1/25/2022)

USB4 Drivers and Libraries zip (READ ME file)

This download includes USB4 drivers and libraries for Windows OS.

The following software components are all found in:
USB4DriversAndLibrarySetup.zip (version 1.12):
USB4.dll 32-bit and 64-bit (version 1.12)
cyusb3.sys 1.2.3.10 (contained in USB4DriversSetup_x64_1.9.msi or
USB4DriversSetup_x86_1.9.msi depending on the OS version)





download USB4 Drivers and Libraries zip

File Name: usb4driversandlibrarysetup_1-13.zip
File Size: 590 Kb
OS Support: WINDOWS 10 | 32 BIT | 64 BIT
Version: 1.13 (1/25/2022)

By clicking "Download", you agree to US Digital's Terms & Conditions and Privacy Policy .

Cancel   Download

USB4 FIFO Speed Test

The USB4_FIFOSpeedTest demo is used to test how fast the software can read 500,000 samples from the USB4 FIFO buffer.  Note: Since USB4.dll version 1.11, the FIFO buffer read rate is 3 times faster than prior releases.

READ MORE (Read me file)
DOWNLOAD usb4_fifospeedtest_1-2.zip  (Version: 1.12 1/25/2022)

USB4 FIFO Speed Test zip (READ ME file)

The USB4_FIFOSpeedTest demo is used to test how fast the software can read 500,000 samples from the USB4 FIFO buffer.

Note: Since USB4.dll version 1.11, the FIFO buffer read rate is 3 times faster than prior releases.





download USB4 FIFO Speed Test zip

File Name: usb4_fifospeedtest_1-2.zip
File Size: 2.97 Mb
OS Support: WINDOWS 10 | 64 BIT | 32 BIT
Version: 1.12 (1/25/2022)
