DISK-1 1 in. Transmissive Rotary Encoder Disk

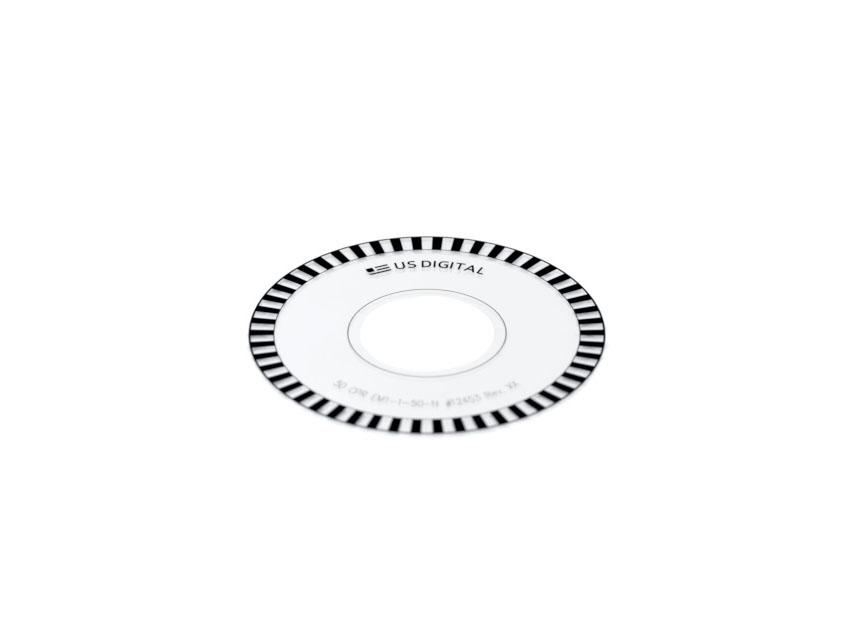

Disk1 Webproduct 01 Product Photo

DISK-1 Features

  • 1 in. outside diameter
  • Mylar film construction
  • 32 to 5,000 CPR
  • Index track option
  • Compatible with US Digital's EM1 and EM2 encoder modules

See more info below

Configure the DISK-1

DISK-1 Product Description

Restriction of Hazardous Substances

US Digital offers a wide variety of standard rotary encoder disks. They may be ordered as a stand-alone disk or as a hub disk. These rotary encoder disks are made from Mylar polyester film. This material allows for a wide temperature range.

The 32 CPR is available only in the No Index, EM1 Compatible option (NE). Other resolutions are available with or without an index track.

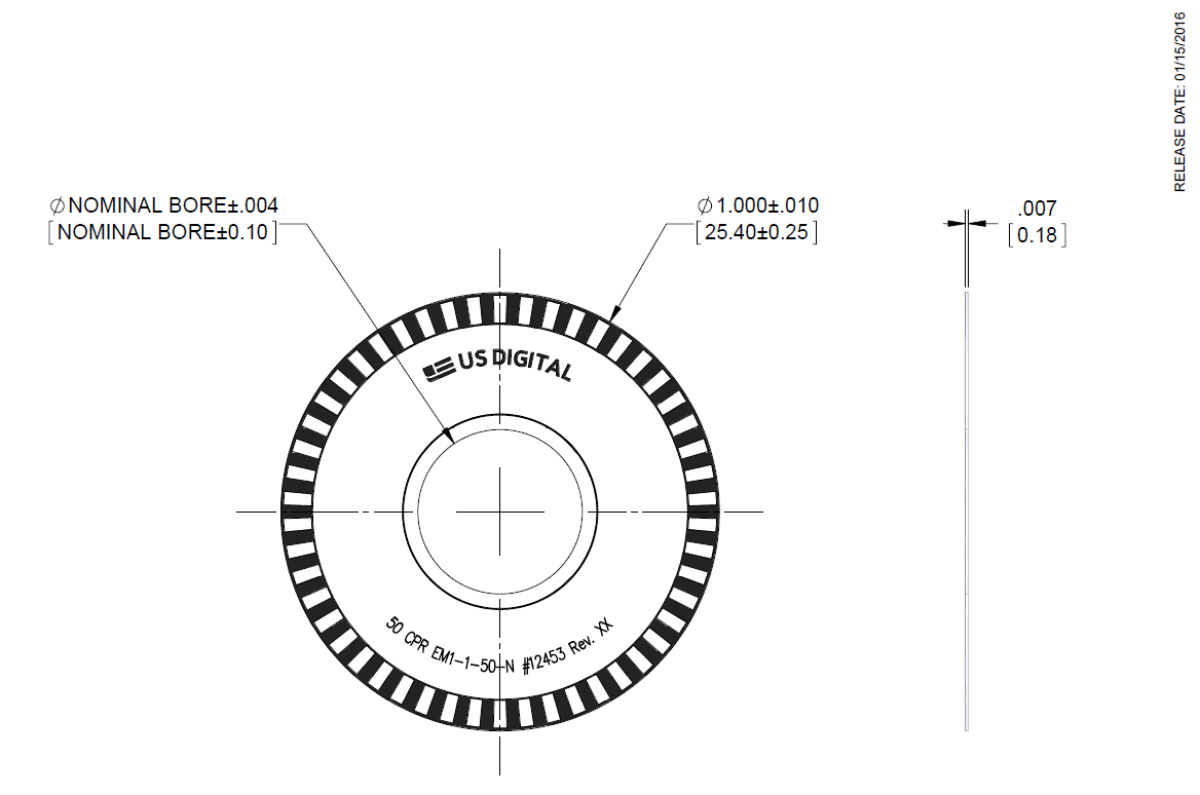

Mechanical alignment drawings for optical encoder rotary disks and optical encoder modules are available (see the EM1 and EM2 pages).

Product Specifications

SPECIFICATIONS

Inside Diameter (ID) tolerance ±0.004"
Outside Diameter (OD) 1" ± 0.010 in.
Thickness 0.007"
Temperature Range -40C to 100C

PRODUCT CHANGE NOTIFICATIONS

Title Date Description Download
Update to 1" and 2" Disks - PCN 6232 5/24/2018 This notice is to inform our customers of a minor disk design modification that is being implemented for standard 1" and 2" disks. This is a continuation of a change that was implemented for our index disks in 2015.

We are revising the text on the disk, adding the US Digital logo and a line that is used internally by our manufacturing group.

The change does not affect the quadrature or index tracks; therefore, it has no impact on form, fit, or function.		 Download

COMPATIBLE ENCODER MODULES

CPR 1" DISK
Non-Index		 MODULE
Non-Index		 1" DISK
Index		 MODULE
Index
32 DISK-1-32-*-NE EM1-1-32-N
50 DISK-1-50-*-NE EM1-1-50-N DISK-1-50-*-IE EM1-1-50-I
96 DISK-1-96-*-NE EM1-1-100-N DISK-1-96-*-IE EM1-1-100-I
100 DISK-1-100-*-NE EM1-1-100-N DISK-1-100-*-IE EM1-1-100-I
120 DISK-1-120-*-NE EM1-1-100-N
200 DISK-1-200-*-NE EM1-1-200-N DISK-1-200-*-IE EM1-1-200-I
192 DISK-1-192-*-NE EM1-1-200-N DISK-1-192-*-IE EM1-1-200-I
250 DISK-1-250-*-NE EM1-1-250-N DISK-1-250-*-IE EM1-1-250-I
256 DISK-1-256-*-NE EM1-1-250-N DISK-1-256-*-IE EM1-1-250-I
360 DISK-1-360-*-NE EM1-1-360-N DISK-1-360-*-IE EM1-1-360-I
400 DISK-1-400-*-NE EM1-1-400-N DISK-1-400-*-IE EM1-1-400-I
500 DISK-1-500-*-NE EM1-1-500-N DISK-1-500-*-IE EM1-1-500-I
512 DISK-1-512-*-NE EM1-1-512-N DISK-1-512-*-IE EM1-1-512-I
540 DISK-1-540-*-NE EM1-1-540-N DISK-1-540-*-IE EM1-1-540-I
720 DISK-1-720-*-NE EM1-1-720-N DISK-1-720-*-IE EM1-1-720-I
800 DISK-1-800-*-NE EM1-1-800-N DISK-1-800-*-IE EM1-1-800-I
900 DISK-1-900-*-NE EM1-1-900-N DISK-1-900-*-IE EM1-1-900-I
1000 DISK-1-1000-*-NE EM1-1-1000-N DISK-1-1000-*-IE EM1-1-1000-I
1024 DISK-1-1024-*-NE EM1-1-1024-N DISK-1-1024-*-IE EM1-1-1024-I
1250 DISK-1-1250-*-NE EM1-1-1250-N DISK-1-1250-*-IE EM1-1-1250-I
2000 DISK-1-2000-*-IE EM2-1-2000-I
2048 DISK-1-2048-*-IE EM2-1-2048-I
2500 DISK-1-2500-*-IE EM2-1-2500-I
4000 DISK-1-4000-*-IE EM2-1-4000-I
4096 DISK-1-4096-*-IE EM2-1-4096-I
5000 DISK-1-5000-*-IE EM2-1-5000-I

*Represents the bore size
