PS-12 Regulated Switching 12 V (1.5 A) Power Supply

CE Marking: Starting July 22nd, 2014, some US Digital products will contain the CE Marking. The PS-12 will not contain a CE Marking and will not be available for shipping to CE Mark required countries (for example, all countries within the European Union (EU)) after July 10th, 2014. See the Product Change Notification PCN 4464 for more information, or contact a US Digital representative at sales@usdigital.com.

Material Compliance Statement: This product does NOT contain banned levels of substances as defined in European Directive 2011/65/EU specifically, Lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent Chromium (CR+6), Poly Brominated Biphenyls (PBB), and Poly Brominated Diphenyl Ethers (PBDE) are not found above the threshold level given in the 2011/65/EU Directive.

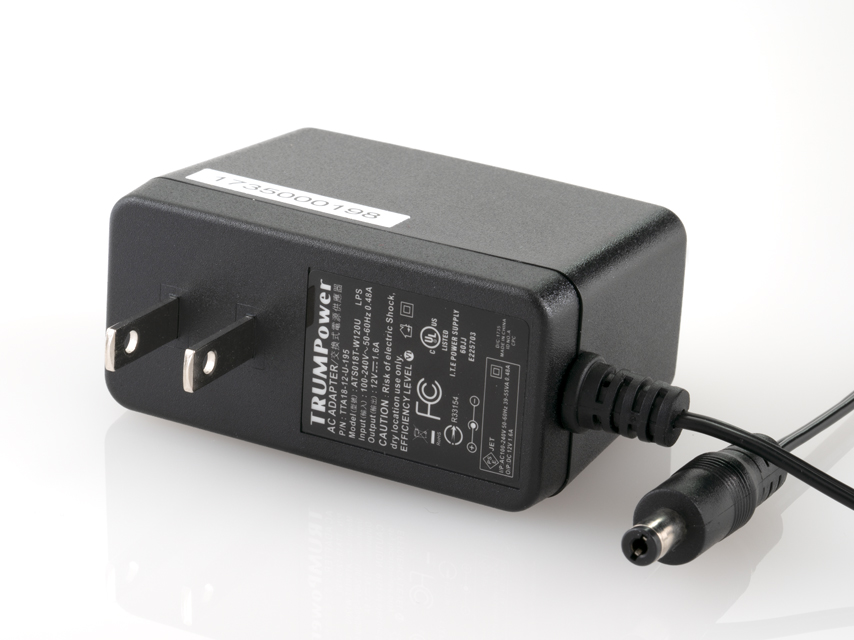

PS-12 Product Description

The PS-12 is an 18 W regulated switching power supply that outputs 12 VDC @ 1.5 A. The power supply covers voltage inputs ranging from 90 VAC to 264 VAC. Typical efficiency is 70% and the output is short circuit protected.

The output connector is a 2.1 mm circular plug attached to a 48 inch long cable. The power supply plugs directly into a standard 120 VAC receptacle.

Product Specifications

View here or download the specifications

Specifications

Input Voltage 90 VAC to 264 VAC
Output Voltage 12 VDC ± 5%
Input Frequency 47 Hz to 63 Hz
Ripple & Noise ± 120 mV maximum
Operating Temperature 0 C to 40 C
Storage Temperature -20 C to 80 C
Protections Over voltage, over current and short circuit
Certification UL/IEC/EN 60950-1, 2nd. ed.
EMI FCC, EN55022, CISPR 22 Class B
Efficiency DOE 2013 Level VI
Size (inches) 2.83 x 2.05 x 1.34 inches

Product Change Notifications

Title Date Description Download
PCN 4464 - CE - RoHS 6/30/2014

US Digital is aware of the increasing attention to world-wide environmental regulations, specifically with regard to the need for hazardous substance restrictions in electronic components and systems. As of July 10th, 2014 US Digital will now be CE Marking certain products inline with compliance under RoHS Directive (2011/65/EU). In order to achieve RoHS Compliance, the products will not contain more than the acceptable levels of the listed restricted substances within the RoHS 2011/65/EU directive.

Part Numbers Affected:

  • ED3
  • USB4
  • QSB
  • SEI-USB
  • MD2S
  • PS-5, PS-12, PS-24, PS-48 (Power Supplies)
  • PE

For the part numbers listed above, US Digital cannot confirm that they meet Low-Voltage and EMC Directives and for that reason US Digital cannot support shipping those products / product families into the CE required countries (For Example countries in the EU). Those products can still be shipped to Non-CE required countries with a Statement of Material Conformance to the RoHS Directive 2011/65/EU, in place of a RoHS Compliance Declaration.

Download

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.

Downloads Available

DATASHEETS

3D Model Downloads

Please configure your product first to download a 3D model.
(Note: The formats below will become links if there are 3D models available.)

    • SolidWorks format
    • IGES format
    • Parasolid format

    Product Configurator

    For pricing, this product requires configuration.

    Begin by completing either Option 1 or 2 below. Questions? Contact our support team.

    Option 1: Configure the Product

    Use the configuration tool to provide information regarding your product needs. Not sure what to do or need additional assistance? Our support team is here to help.

    We recommend enabling Javascript when using the product configurator.

    Option 2: Enter the Product Part Number Directly

    If you know your product part number, enter it in the following field. The part number format looks something like this: E5-5000-394-IE-S-D-D-3...


    PS-12 Pricing

    Quantity Unit Price
    1 $19.50
    10 $15.84
    50 $14.53
    100 $13.65
    Over 100 Call for Quote
    Quantity Unit Price Subtotal
    $19.50 $19.50

    For purchasing or volume discounts, please configure the part above, then use the completed part number and contact us!
