CA-MD6-SH-RC10 6-Pin Modular Connector / 10-Pin MIL-C-5015 Connector, Shielded Cable

CA MD6 SH RC10 Webproduct 01 Product Photo

CA-MD6-SH-RC10 Features

See more info below

Configure the CA-MD6-SH-RC10

CA-MD6-SH-RC10 Product Description

Restriction of Hazardous Substances

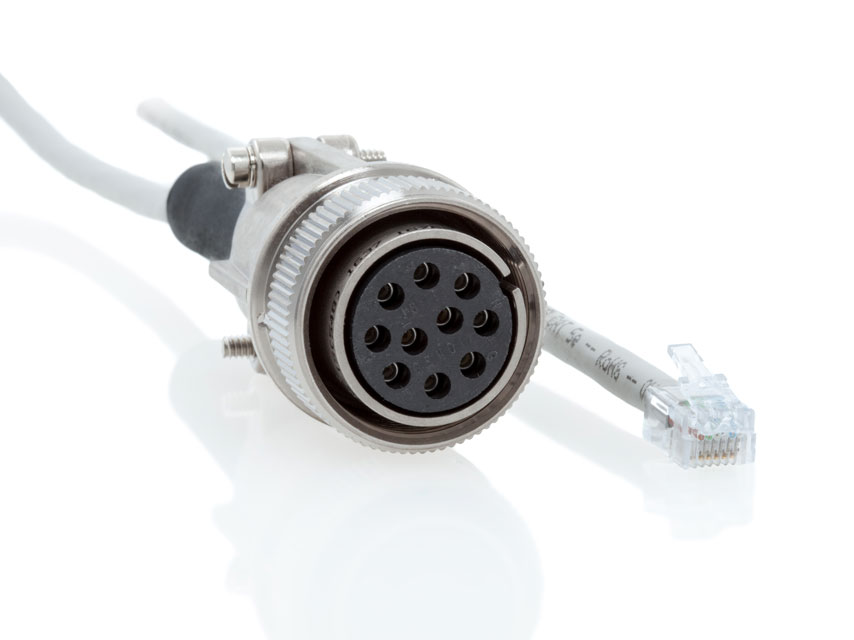

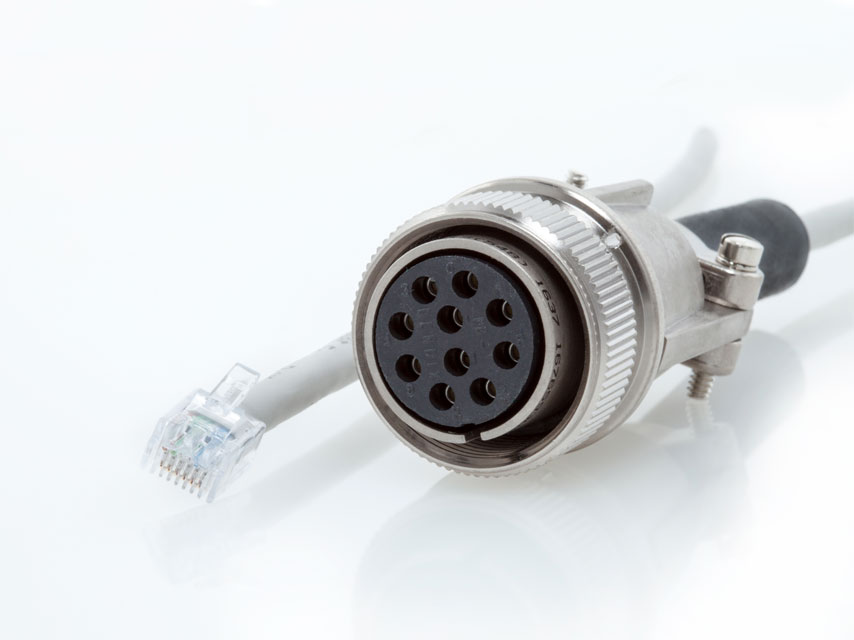

A 10-pin MIL-C-5015 female connector connected to a 6-pin modular connector via an 8 conductor shielded round twisted pair 26 AWG cable.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

NAME COLOR MIL-C-5015 END MODULAR END
Ground Brown F 1
Busy+ Green B 2
Busy- White / Green Stripe I 3
Power White / Brown Stripe D 4
DataL Blue H 5
DataH White / Blue Stripe A 6
Analog+ Orange C NC*
Analog- White / Orange Stripe J NC*

* Not connected but available in cable.
