CA-CFR-PS-DB9P Product Description

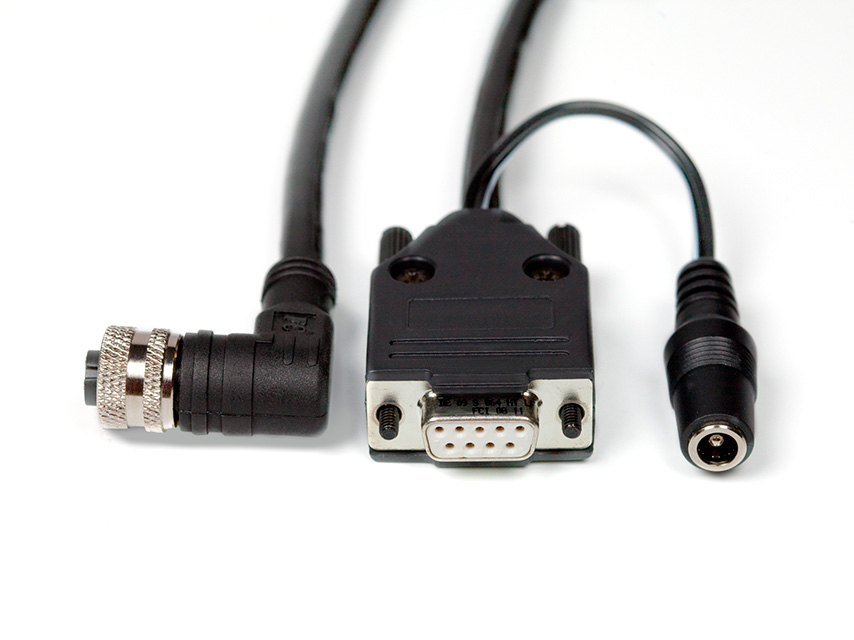

This cable connects the 5-pin J1 connector of a T7 Networked Absolute Inclinometer (RS232 interface) to a standard PC's DB9 RS-232 serial COM port. The power connector is used to supply 5.5V to 30V power to the T7. This allows the host computer to read the position and set parameters of the T7-232 via the COM port.
WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.
Product Specifications
PIN-OUT
| T7 (J1 CONNECTOR) |
DB9 |
POWER JACK |
| Pin 1 (Shield) |
- |
- |
| Pin 2 (VIN) |
- |
Center terminal |
| Pin 3 (GND) |
Pin 5 (GND) |
Outer sheath |
| Pin 4 (TXD) |
Pin 2 (RX) |
- |
| Pin 5 (RXD) |
Pin 3 (TX) |
- |
