CA-PCL6-SH-NC Product Description

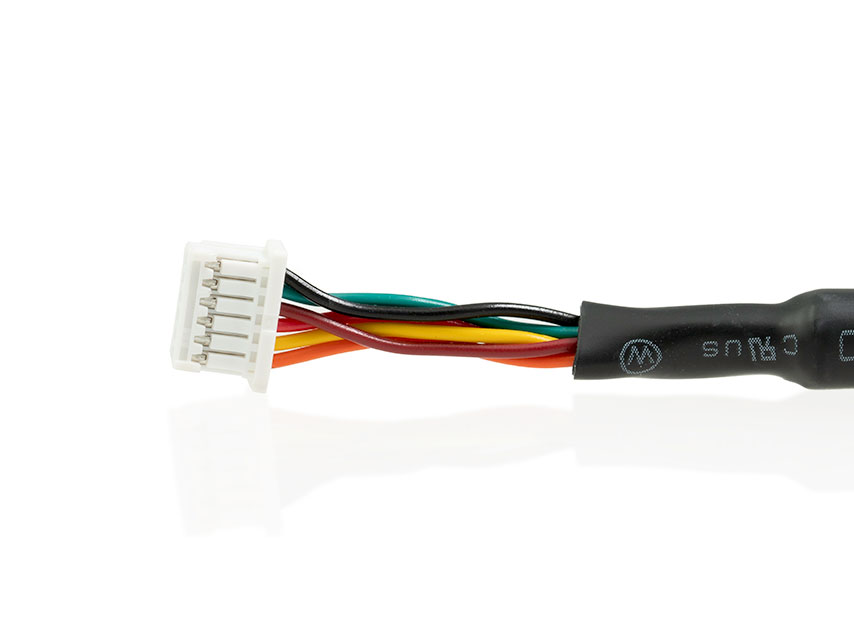

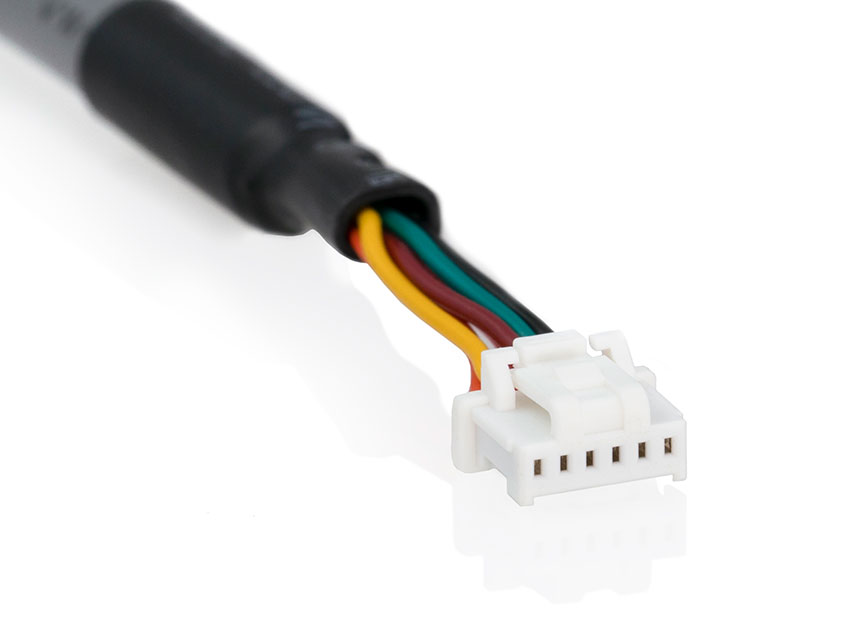

A 6-pin Molex Pico-Clasp (# 5013300600) series, 1.0mm pitch plug connector on one end of a 6-conductor round shielded 28 AWG cable. This cable has a temperature range of -40C to 105C.
WARNING: This product can cause exposure to substances, such as phthalate plasticizers , known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65 .
Product Specifications
PIN-OUT
PIN
DESCRIPTION
COLOR
1
Ground
Black
2
Index
Green
3
B channel
Brown
4
Vdd
Red
5
A channel
Yellow
6
PWM
Orange
