CA-MCL3-W3-NC Cable, three Discrete Wires, 3-Pin Latching Connector to Flying Leads

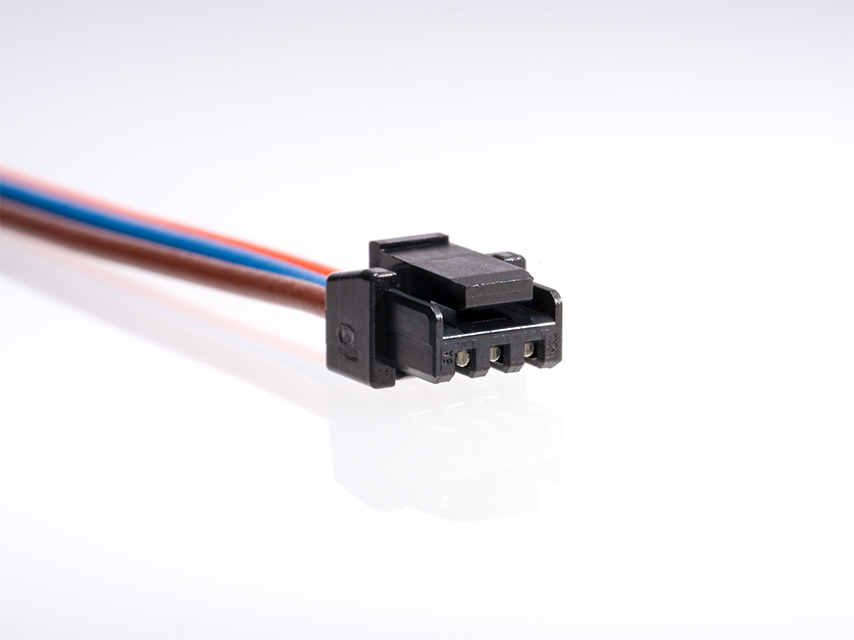

CA MCL3 W3 NC Webproduct 01 Product Photo

CA-MCL3-W3-NC Features

See more info below

Configure the CA-MCL3-W3-NC

CA-MCL3-W3-NC Product Description

Restriction of Hazardous Substances

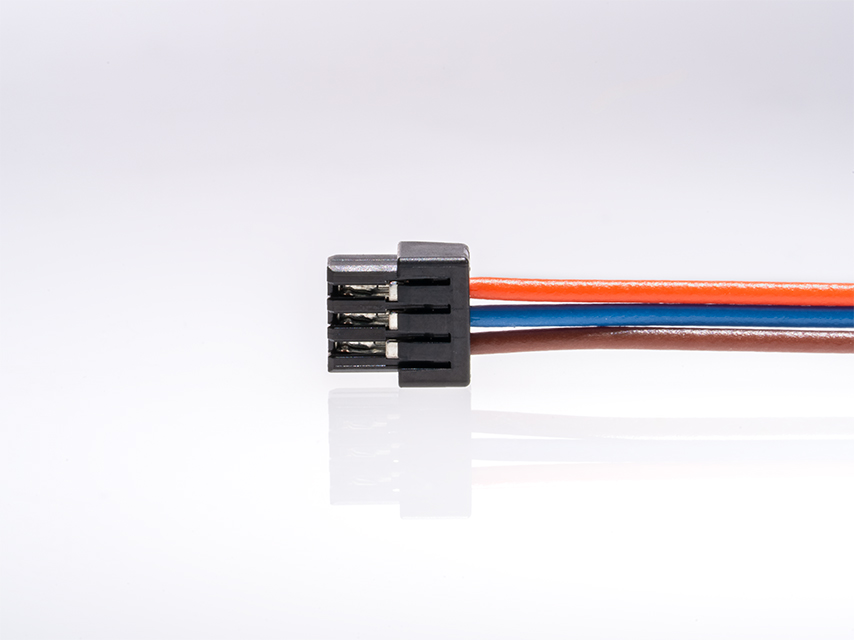

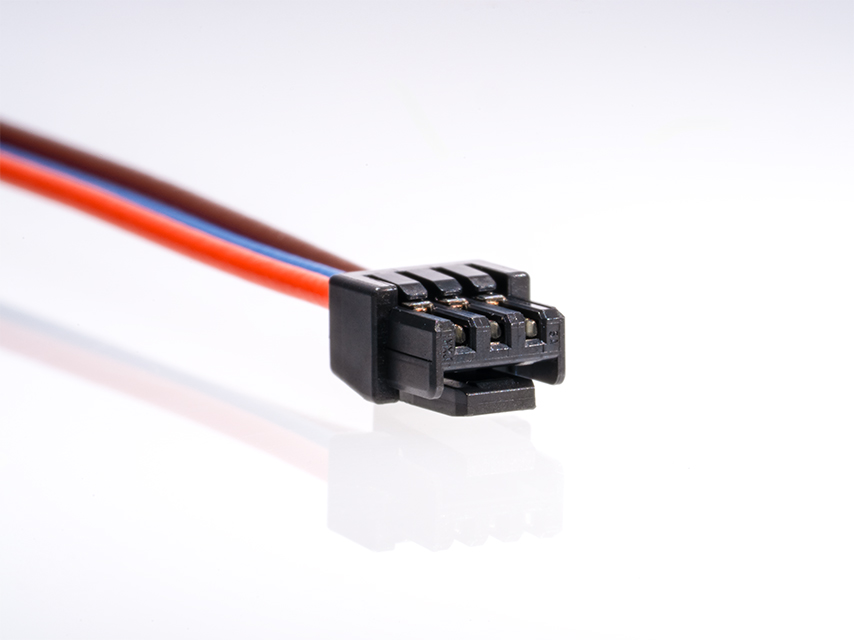

This cable has three discrete 26 AWG conductors, with a 3-pin female latching connector on one end and flying leads on the other. The Micro-Lock Plus housing is Molex part number 5055650301 and three individual crimp-on pins are Molex part number 5054311000. Cable compatible with US Digital MA4 and MAE4 encoders.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN DESCRIPTION COLOR
1 +5VDC power Orange
2 Analog / PWM Blue
3 Ground Brown

Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
