CA-MCL3-SH-NC 3-Pin Micro-Lock Plus Connector / Unterminated, Shielded Cable

CA MCL3 SH NC Webproduct 01 Product Photo

CA-MCL3-SH-NC Features

See more info below

Configure the CA-MCL3-SH-NC

CA-MCL3-SH-NC Product Description

Restriction of Hazardous Substances

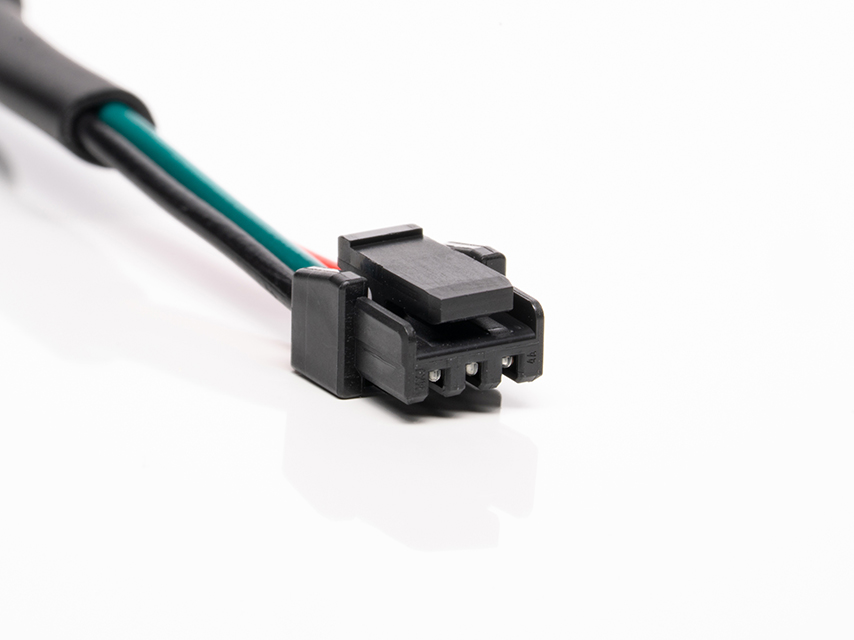

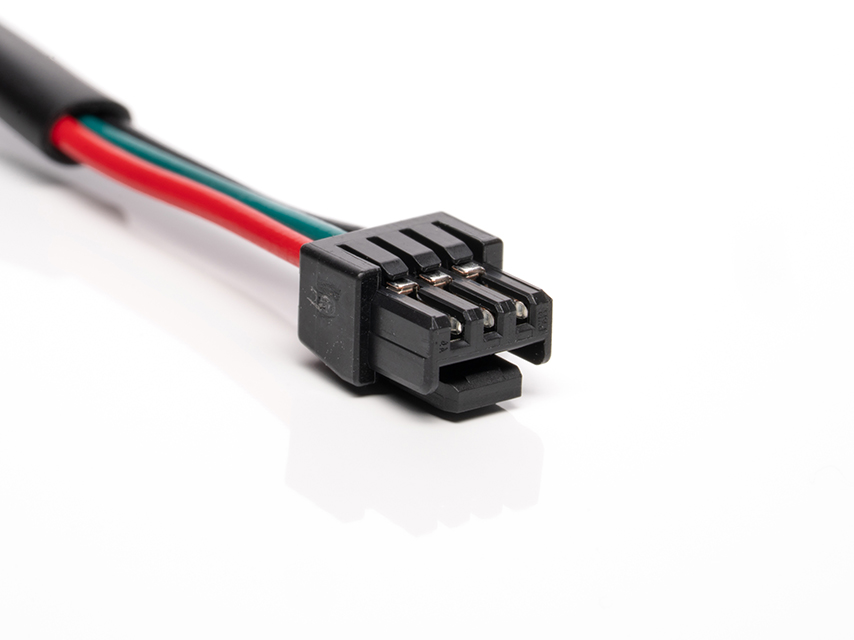

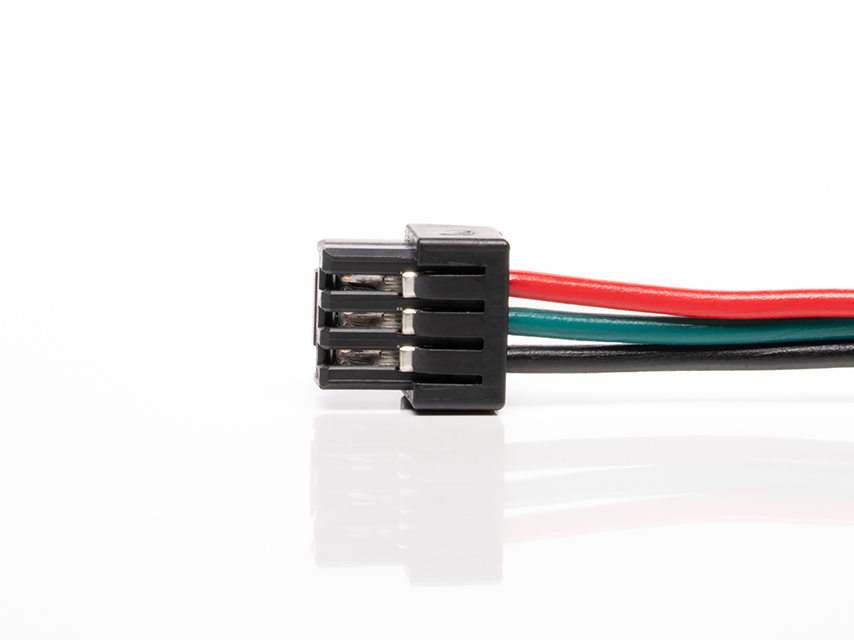

A shielded 26 AWG round cable with a 3-pin Molex Micro-Lock Plus connector on one end.

  • Connector housing: Molex# 5055650301
  • Connector individual crimp-on pins: Molex# 5054311000

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN DESCRIPTION COLOR
1 +5VDC power Red
2 Analog / PWM Green
3 Ground Black
