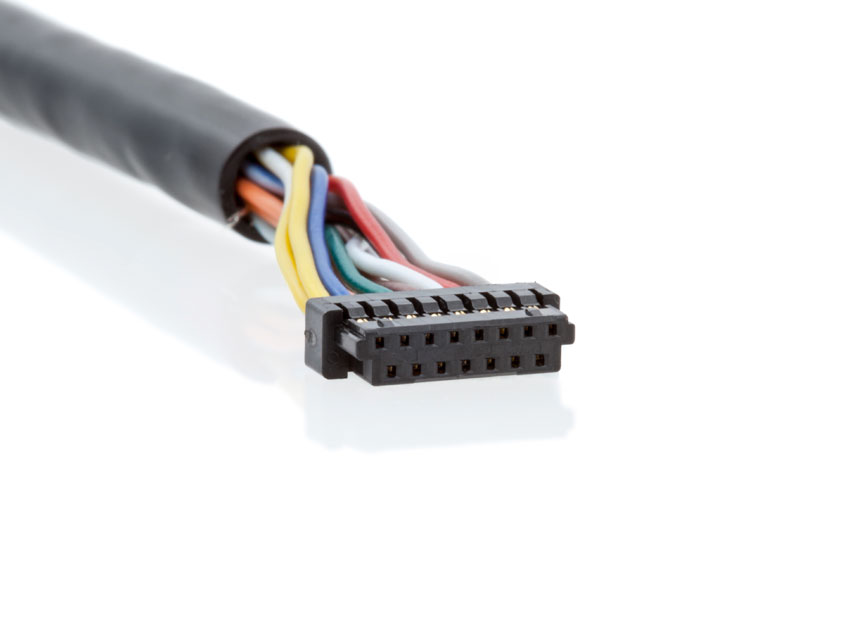

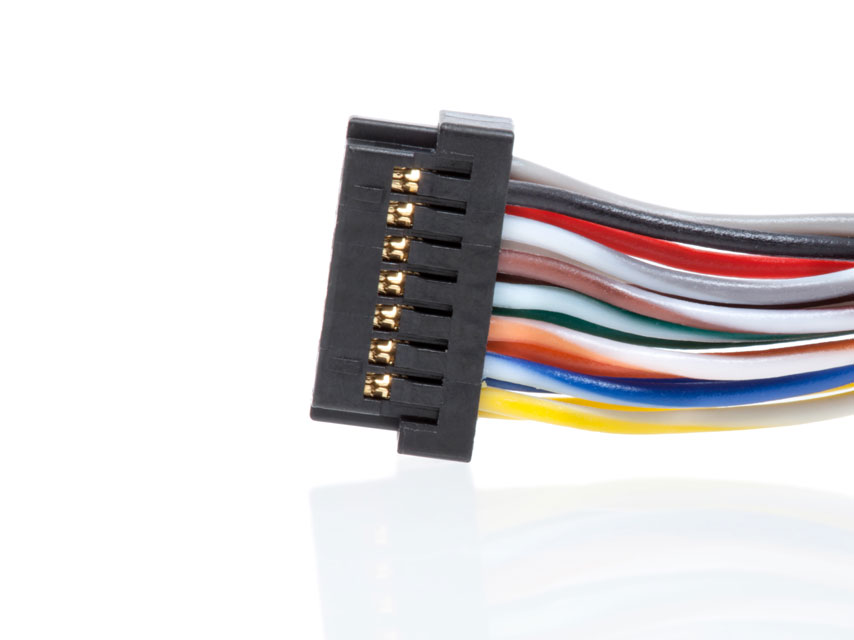

CA-E15-SH-NC Product Description A 15-pin standard cable, 28 AWG.
WARNING: This product can cause exposure to substances, such as phthalate plasticizers , known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65 .
Product Specifications
PIN-OUTS
PIN
DESCRIPTION
COLOR
1
A+ Channel
Yellow
2
A- Channel
Yellow / White
3
B+ Channel
Blue
4
B- Channel
Blue / White
5
Z+ Channel
Orange
6
Z- Channel
Orange / White
7
U+ Channel
Green
8
U- Channel
Green / White
9
V+ Channel
Brown
10
V- Channel
Brown / White
11
W+ Channel
White
12
W- Channel
White / Grey
13
Power
Red
14
Ground
Black
15
No Connection
Gray
