CA-FC10L-SH-FC10L 10-Pin Latching Connector / 10-Pin Latching Connector, Shielded Cable (Avago Pin-Out)

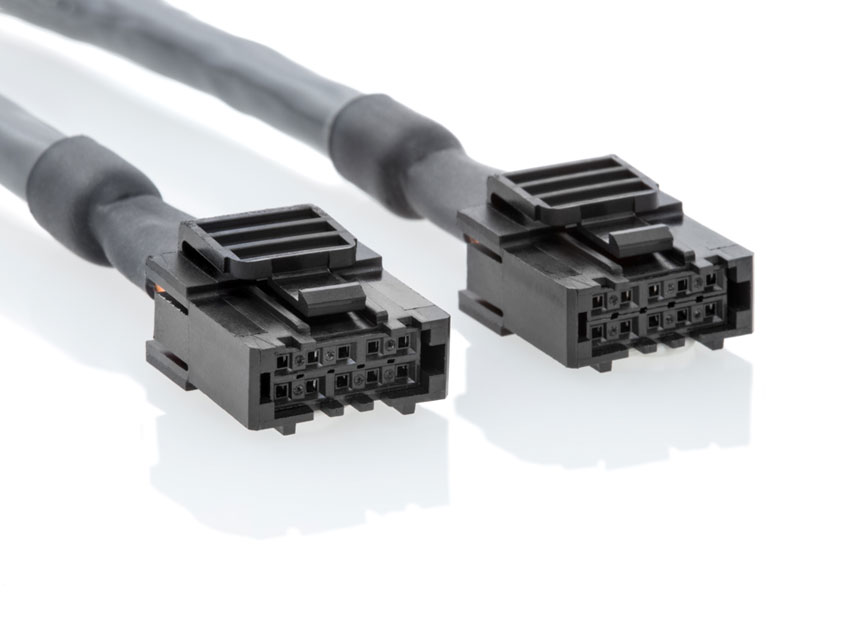

CA FC10L SH FC10L Webproduct 01 Product Photo

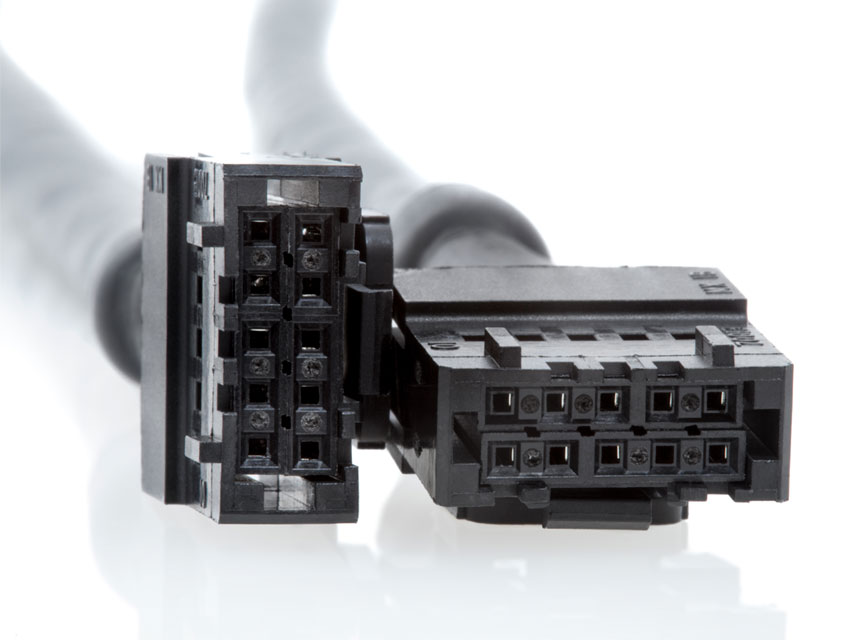

CA-FC10L-SH-FC10L Features

See more info below

Configure the CA-FC10L-SH-FC10L

CA-FC10L-SH-FC10L Product Description

Restriction of Hazardous Substances

10-pin female polarized latching connectors on both ends with an 8-conductor round shielded twisted pair 24 AWG cable. This cable is primarily used with Avago/Agilent direct replacements.

WARNING: This product can cause exposure to substances, such as phthalate plasticizers, known to the State of California to cause cancer and reproductive harm. For more information, go to oehha.ca.gov/proposition-65.

Product Specifications

PIN-OUT

PIN DESCRIPTION COLOR
1 - -
2 Power Orange / White Stripe
3 Ground White / Orange Stripe(drain connected on one end)
4 - -
5 A- channel White / Blue Stripe
6 A+ channel Blue / White Stripe
7 B- channel White / Green Stripe
8 B+ channel Green / White Stripe
9 I- channel White / Brown Stripe
10 I+ channel Brown / White Stripe
