LIN Transmissive Linear Encoder Strip

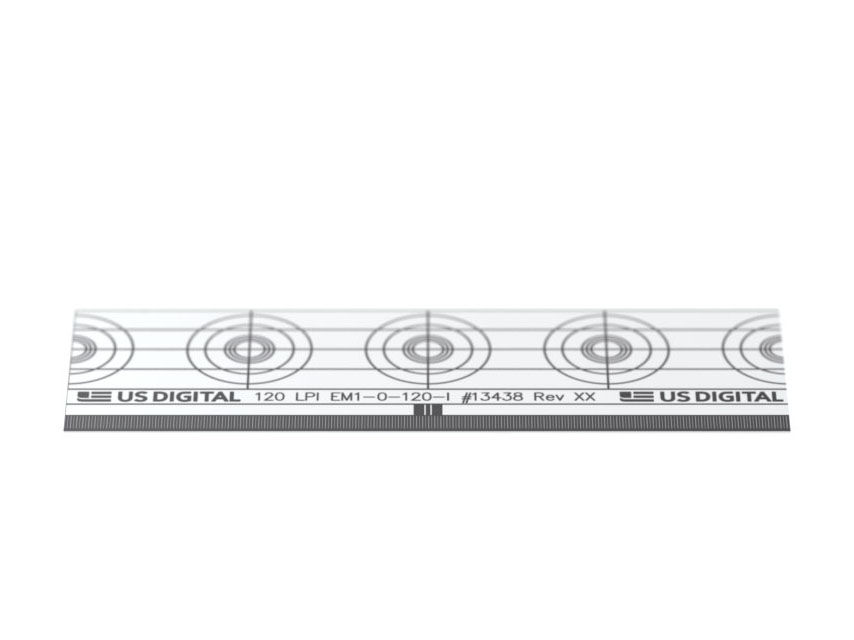

Lin Webproduct 01 Product Photo

LIN Features

  • Up to 35.5 in. long
  • Up to 2000 LPI (when paired with the EM2)
  • Index track option

See more info below

Configure the LIN

LIN Product Description

Restriction of Hazardous Substances

US Digital offers a wide variety of standard linear encoder strips. These products are available in many different resolutions and lengths. The material used is Mylar™ polyester film. This material is very rugged, with a wide temperature range of -40C to 100C.

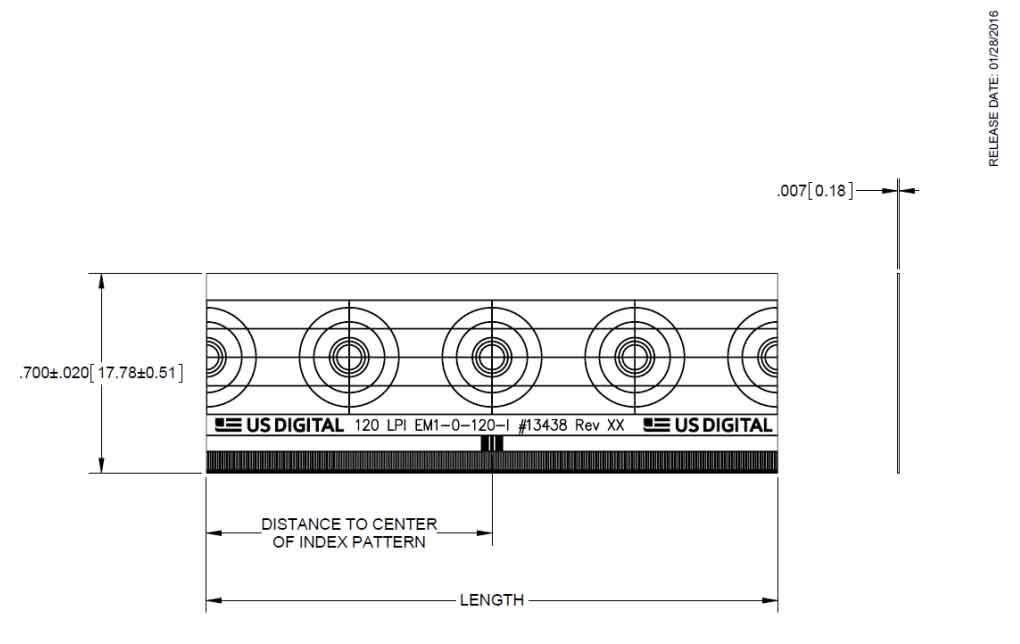

The Mylar linear strips have a thickness of .007 in. and are cut to a width of 0.700 in. The index parameter in the part number configurator refers to the distance between the index mark and the left edge of the strip when the text is right-reading.

See the EM1 and EM2 pages for more information on compatible optical encoder modules.

Product Specifications

INDEX OPTION

NUMBER OF INCHES FROM LEFT SIDE OF LINEAR STRIP.

COMPATIBLE OPTICAL ENCODER MODULES

LINES PER INCH (LPI) WITH INDEX NON-INDEX
120 EM1-0-120-I EM1-0-120-N
125 EM1-0-127-I* EM1-0-127-N*
127 EM1-0-127-I EM1-0-127-N
200 EM1-0-200-I EM1-0-200-N
250 EM1-0-250-I EM1-0-250-N
300 EM1-0-300-I EM1-0-300-N
500 EM1-0-500-I EM1-0-500-N
1000 EM2-0-1000-I EM2-0-1000-N
2000 EM2-0-2000-I EM2-0-2000-N



Other resolutions may be available upon request.
