HUBDISK-2 2 in. Transmissive Rotary Disk

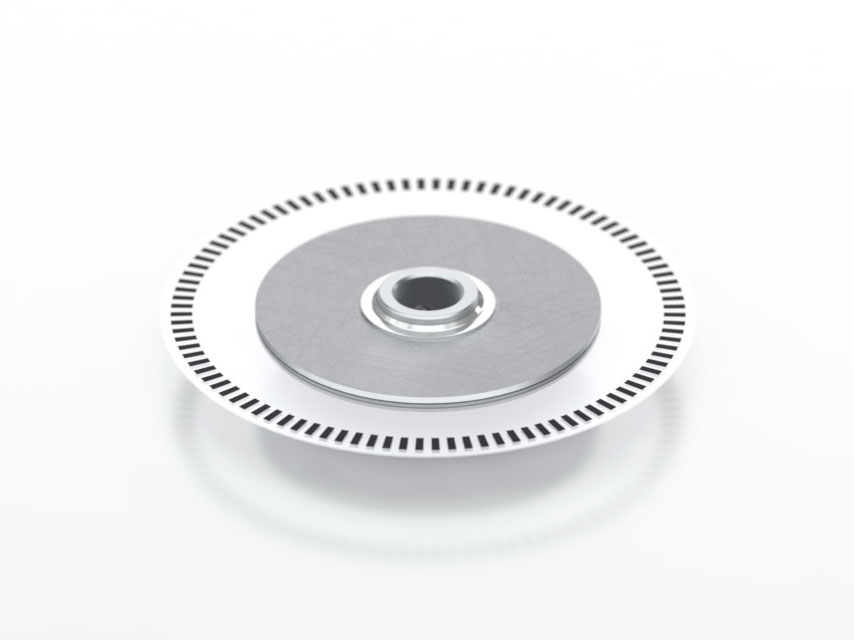

Hubdisk2 Webproduct 01 Product Photo

HUBDISK-2 Features

  • 2 in. outside diameter
  • 64 to 10,000 CPR (256 to 40,000 PPR)

See more info below

Configure the HUBDISK-2

HUBDISK-2 Product Description

Restriction of Hazardous Substances

US Digital offers a wide variety of standard HubDisk assemblies (optical encoder disk attached to an aluminum hub) to aid mounting onto a shaft. Encoder disks may also be ordered as stand-alone items. The rotary encoder disks are made from 0.007 in. thick Mylar polyester film, and the material allows for a -40C to 100C temperature range. The disk on the HubDisk assembly comes attached with the emulsion side up when the disk text is right-reading.

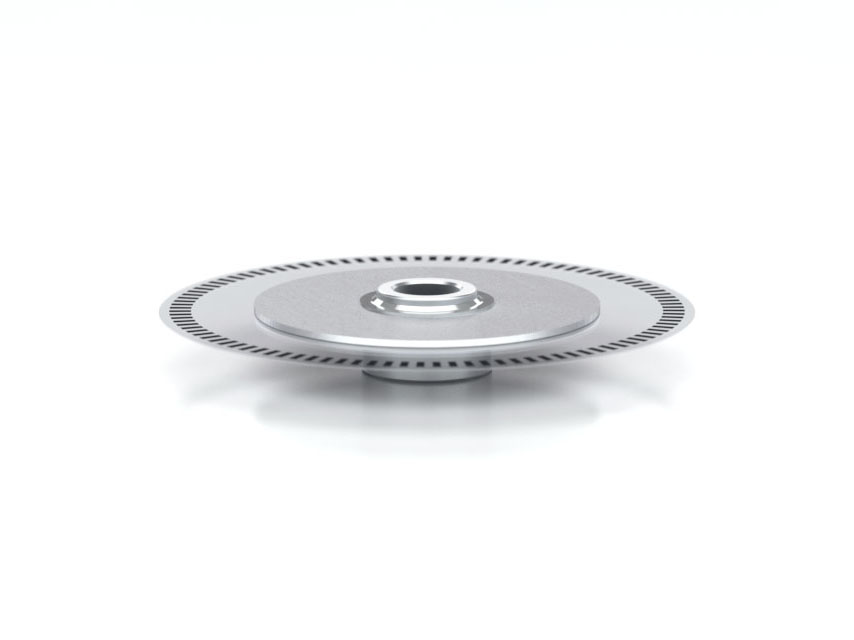

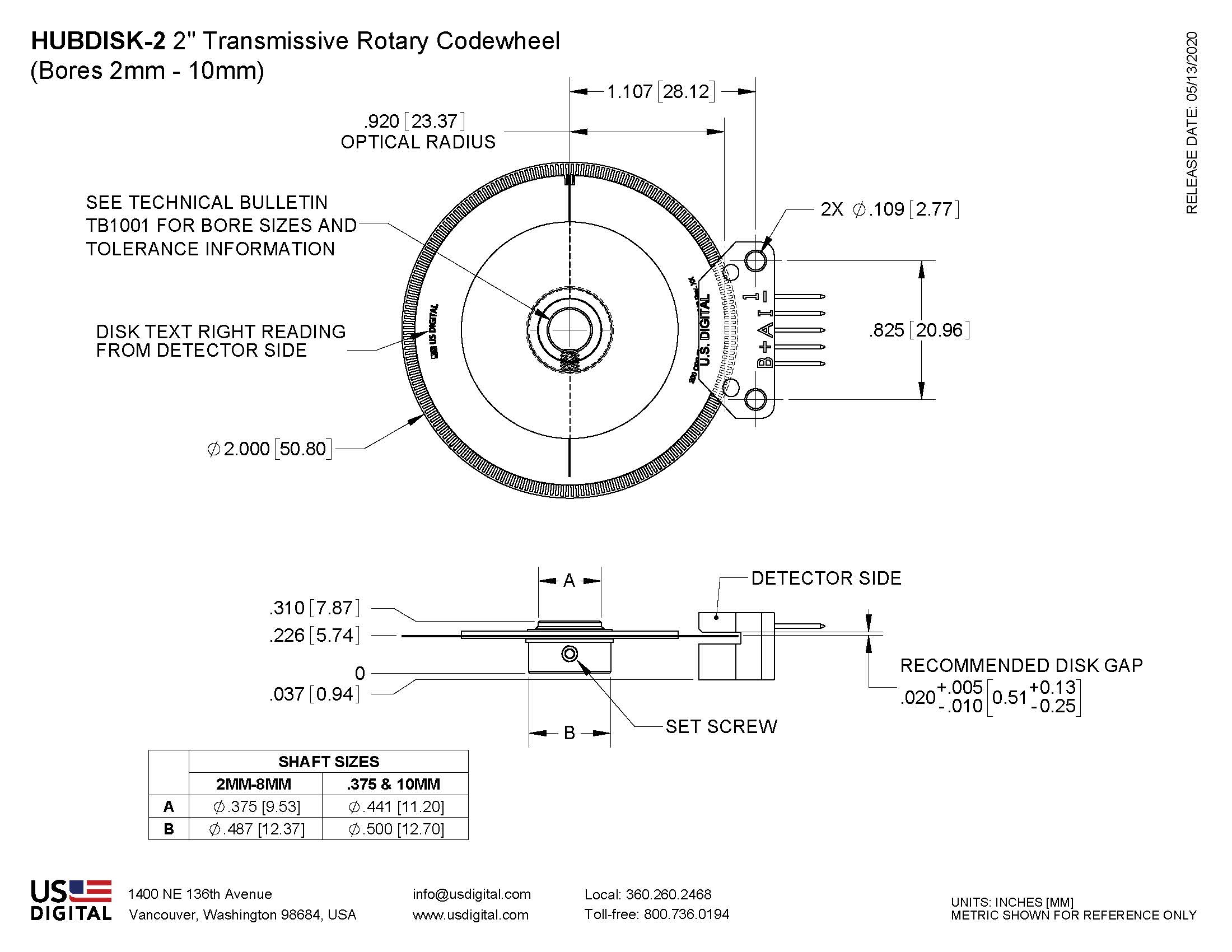

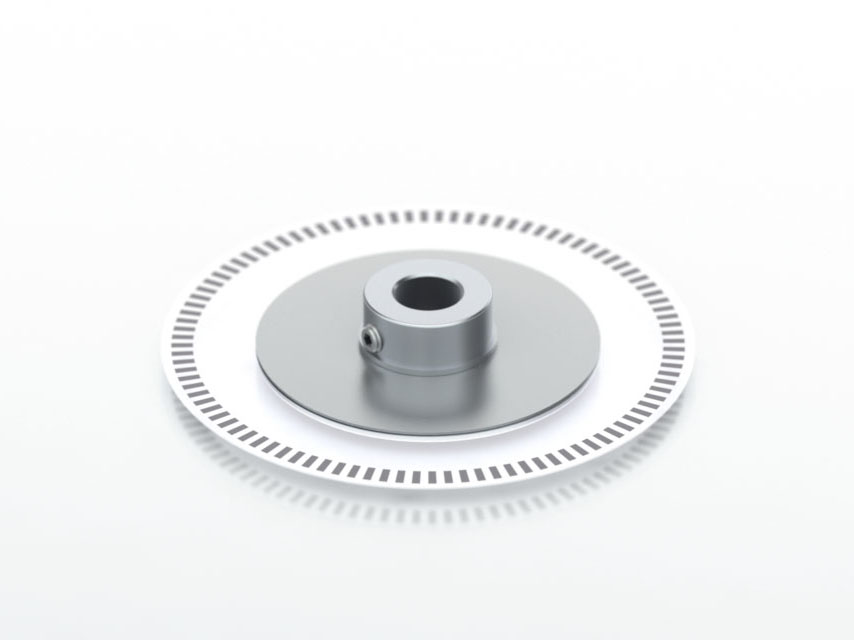

HUBDISK-2 consists of a precision machined aluminum hub fastened to a 2 in. diameter optical encoder disk (DISK-2). One or two .050 in. flat-to-flat set screws (depending on the hub's bore size) are used to fasten the hub to a shaft. The HubDisk assembly is available with bore sizes ranging from 2mm to 1 in. All HubDisk assembly bores are held to a very tight tolerance defined by US Digital Technical Bulletin Shaft and Bore Tolerances TB1001.

Product Specifications

SPECIFICATIONS

Temperature Range -40C to 100C
Hub Set Screw Torque 2-3 in-lbs
Outside Disk Diameter (OD) 2" ± 0.010 in.
Bore Diameter Tolerance See Technical Bulletin TB1001
Disk Thickness 0.007"

TECHNICAL BULLETINS

TITLE DOWNLOAD
Technical Bulletin TB1001 - Shaft and Bore Tolerances Download

PRODUCT CHANGE NOTIFICATIONS

Title Date Description Download
2" Hub/Disk Assembly Packaging - PCN 7115 2/15/2021 As part of our ongoing continuous improvement efforts, US Digital is implementing a change to the packaging of our 2 in. Hubdisk assemblies.

We are replacing the current plastic tube packaging with a 10-count plastic tray. The tray is a two-piece design with snap-on lid and anti-static coated for ESD-sensitive environments. This change is designed to enhance the ease of handling for our customers, provide easy removal of the individual hubdisks, and protect against potential damage due to the long-term storage of hubdisk assemblies.

This change does not affect the form, fit, or function of the final product.		 Download
2" Hub/Disk Assembly Screw Change - PCN 6644 9/27/2018 As part of our ongoing continuous improvement efforts, the screws used in the assembly of the 2" hub/disk assembly, that is with a bore of 12mm and larger, will be changed from a black oxide to a zinc plated screw.

The zinc plating improves corrosion resistance as well as alleviates any potential for oil residue.

The plating change has no effect on the form, fit, or function of our hubdisk assembly.		 Download
Hub Set Screw Production Change - PCN 5367 7/20/2015 As part of our ongoing continuous improvement efforts, US Digital is implementing a change related to the production of our 5/16" (.313), 8mm (.315), 3/8" (.375), and 10mm (.394) HUBDISK assemblies. We are adding a low strength threadlocker to the set screw during our assembly process to assist in securing the set screw in the hub during transportation. This will aid in the set screw retention of these specific hub sizes; ensuring the retention is sufficient and avoid the potential of them backing out of the hub assembly during transit. This change does not affect form, fit, or function. Download

COMPATIBLE ENCODER MODULES

CPR 2" HUBDISK
Non-Index		 MODULE
Non-Index		 2" HUBDISK
Index		 MODULE
Index
64 HUBDISK-2-64-*-NE EM1-1-32-N
100 HUBDISK-2-100-*-NE EM1-1-50-N HUBDISK-2-100-*-IE EM1-1-50-I
200 HUBDISK-2-200-*-NE EM1-1-100-N HUBDISK-2-200-*-IE EM1-1-100-I
400 HUBDISK-2-400-*-NE EM1-1-200-N HUBDISK-2-400-*-IE EM1-1-200-I
800 HUBDISK-2-800-*-NE EM1-1-400-N HUBDISK-2-800-*-IE EM1-1-400-I
500 HUBDISK-2-500-*-NE EM1-2-500-N HUBDISK-2-500-*-IE EM1-2-500-I
512 HUBDISK-2-512-*-NE EM1-2-500-N HUBDISK-2-512-*-IE EM1-2-500-I
1000 HUBDISK-2-1000-*-NE EM1-2-1000-N HUBDISK-2-1000-*-IE EM1-2-1000-I
1024 HUBDISK-2-1024-*-NE EM1-2-1024-N HUBDISK-2-1024-*-IE EM1-2-1024-I
1800 HUBDISK-2-1800-*-NE EM1-2-1800-N HUBDISK-2-1800-*-IE EM1-2-1800-I
2000 HUBDISK-2-2000-*-NE EM1-2-2000-N HUBDISK-2-2000-*-IE EM1-2-2000-I
2048 HUBDISK-2-2048-*-NE EM1-2-2048-N HUBDISK-2-2048-*-IE EM1-2-2048-I
2500 HUBDISK-2-2500-*-NE EM1-2-2500-N HUBDISK-2-2500-*-IE EM1-2-2500-I
3600     HUBDISK-2-3600-*-IE EM2-2-3600-I
4000     HUBDISK-2-4000-*-IE EM2-2-4000-I
4096     HUBDISK-2-4096-*-IE EM2-2-4096-I
5000     HUBDISK-2-5000-*-IE EM2-2-5000-I
7200     HUBDISK-2-7200-*-IE EM2-2-7200-I
8000     HUBDISK-2-8000-*-IE EM2-2-8000-I
8192     HUBDISK-2-8192-*-IE EM2-2-8192-I
10000     HUBDISK-2-10000-*-IE EM2-2-10000-I



*Represents the bore size
