The PS-48 is no longer available for purchase.

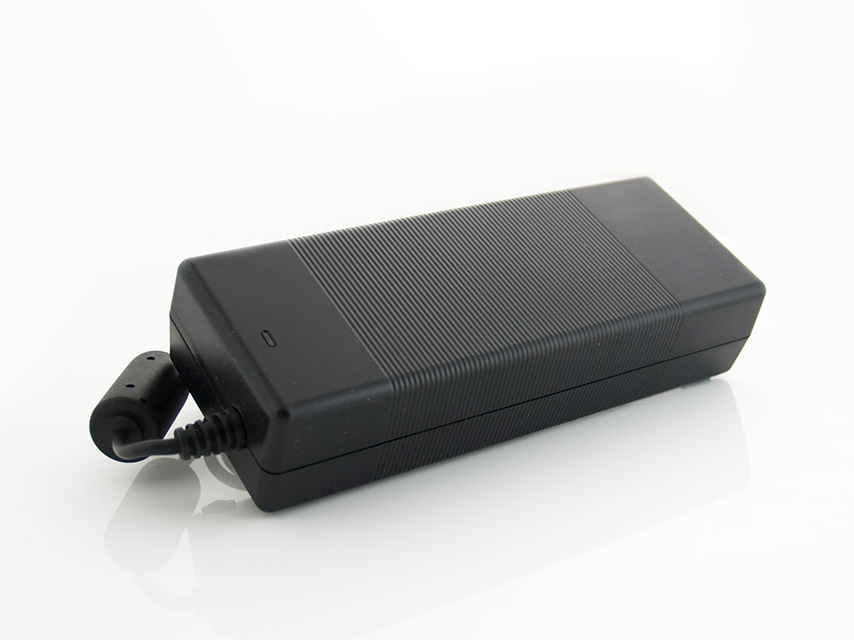

PS-48 Product Description

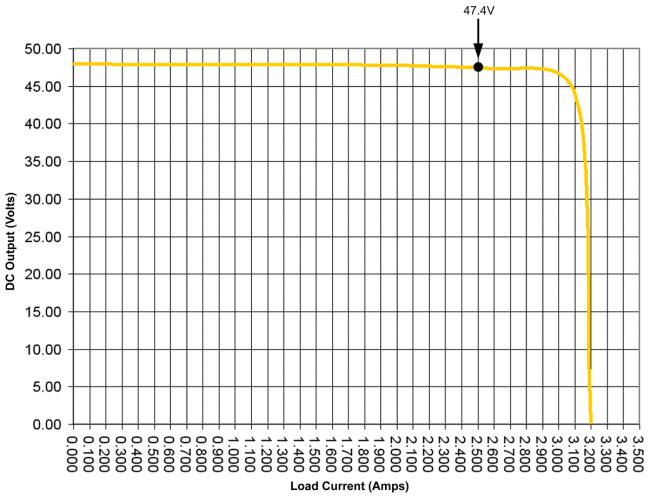

The PS-48 is a 120 W regulated switching power supply that outputs 48 VDC @ 2.5 A. The power supply covers voltage inputs ranging from 100 VAC to 240 VAC. Typical efficiency is 86%, and the output is short circuit protected. When an output short is present, the power supply will try and switch on every 10 seconds. A power-on LED is provided.

The output connector is a 2.1 mm circular plug attached to a 24-inch-long cable. A 6-foot-long 120VAC power cord comes standard with the PS-48.

Product Specifications

View here or download the specifications


Input Voltage 85 VAC to 240 VAC
Output Voltage 48 VDC ± 5%
Input Frequency 47 Hz to 63 Hz
Ripple & Noise ± 400mV maximum
Operating Temperature 0 C to 40 C
Storage Temperature -20 C to 60 C
Protections Over voltage, current and short circuit
EMI EN55022 & EN55024

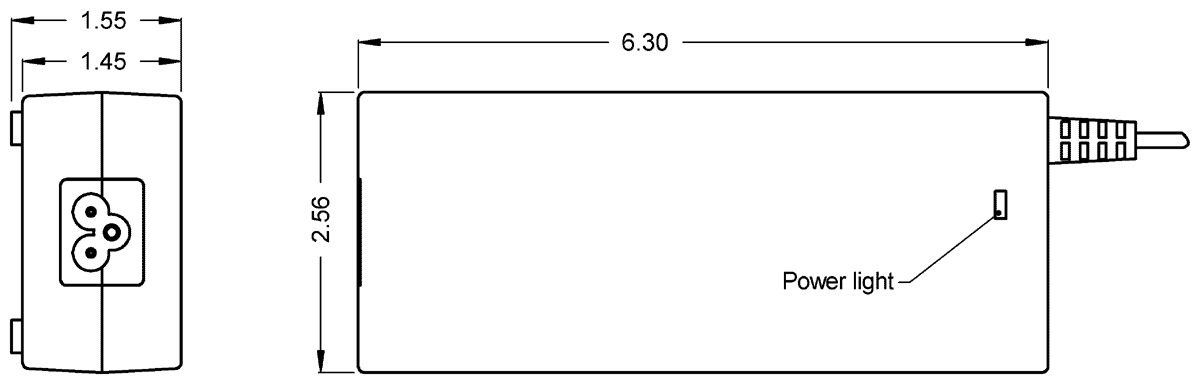

Size (inches) 1.46 x 2.56 x 6.58 (HWL)


Title Date Description Download
PCN 4464 - CE - RoHS 6/30/2014

US Digital is aware of the increasing attention to world-wide environmental regulations, specifically with regard to the need for hazardous substance restrictions in electronic components and systems. As of July 10th, 2014 US Digital will now be CE Marking certain products inline with compliance under RoHS Directive (2011/65/EU). In order to achieve RoHS Compliance, the products will not contain more than the acceptable levels of the listed restricted substances within the RoHS 2011/65/EU directive.

Part Numbers Affected:

  • ED3
  • USB4
  • QSB
  • MD2S
  • PS-5, PS-12, PS-24, PS-48 (Power Supplies)
  • PE

For the part numbers listed above, US Digital cannot confirm that they meet Low-Voltage and EMC Directives and for that reason US Digital cannot support shipping those products / product families into the CE required countries (For Example countries in the EU). Those products can still be shipped to Non-CE required countries with a Statement of Material Conformance to the RoHS Directive 2011/65/EU, in place of a RoHS Compliance Declaration.


Additional Information

Product Notes

  • Cables and connectors are not included and must be ordered separately.
  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.




US Digital's mission is a commitment to quality and constant improvement. If you find an error to a product on this page, please let us know!
