A2K Absolute Optical Encoder: Kit Version

1 / 4
  • A2K
  • A2K
  • A2K
  • A2K

Overview

  • Installs onto shafts up to 10mm dia.
  • 12-bit resolution, and resolution field programmable from 2 to 4,096 codes per revolution (3,600 factory default)
  • Full 360 degrees range, 7 msec update time
  • Low power drain of 18.5 mA max., and 1.5 mA in sleep mode
  • Field programmable parameters such as setting zero position point (free demo software provided)
  • EEPROM stores downloadable parameters
  • 9,600 baud default data rate adjustable up to 115K baud
  • 12-bit analog voltage output option (0 to +3.599 volts factory default setting. Field programmable up to 0 to +4.095 volts)
  • Multi-turn mode (note: power must be maintained to prevent reset to zero)
  • -25 to 70 degrees C. operating temperature

Product Specifications

ParameterValueUnits
Operating Temperature -25 to 70 C
Humidity, Non-condensing 0 to 95 %
Vibration (5Hz to 2kHz) 20 G
Electrostatic Discharge, IEC 61000-4-2  ± 4 kV

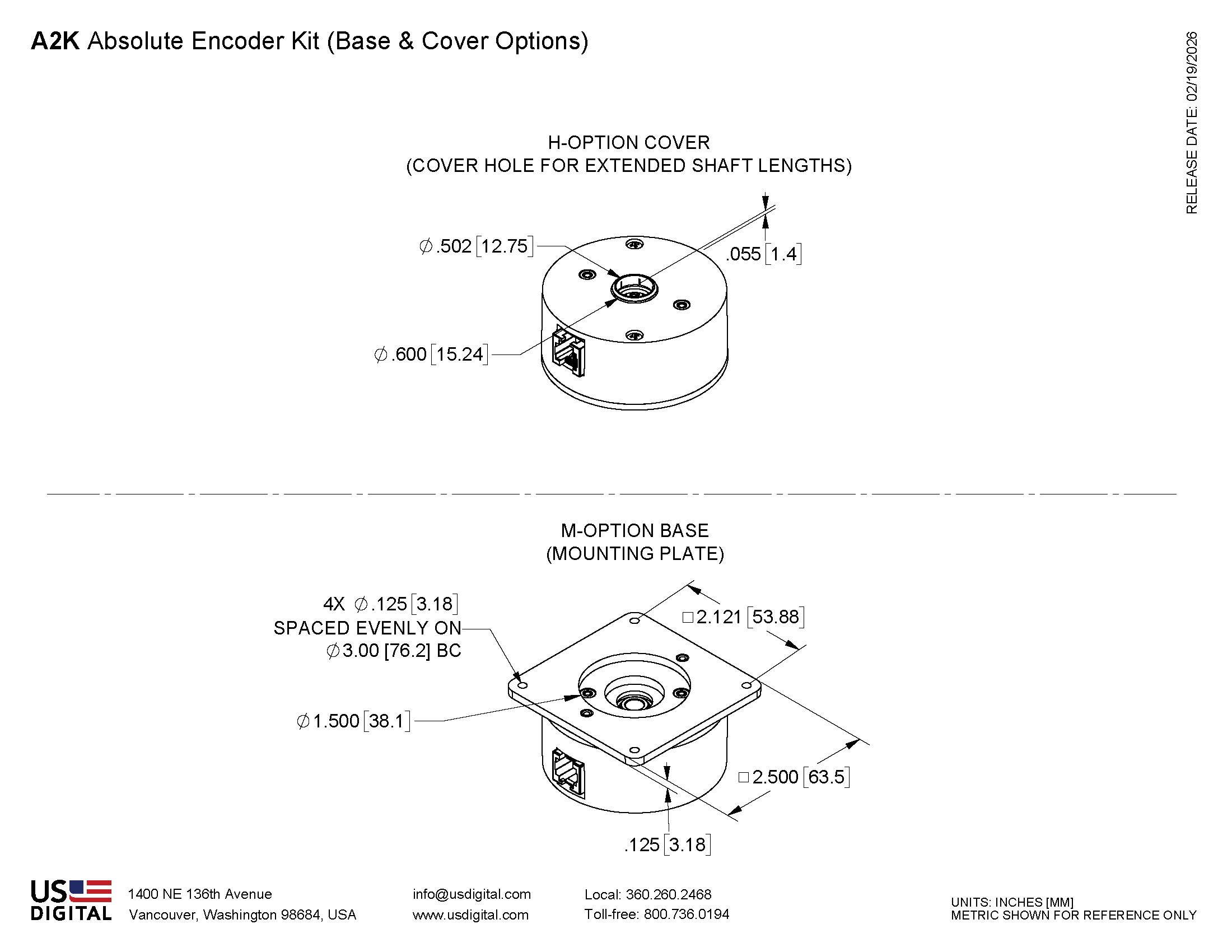

ParameterValue
Max. Shaft Axial Play ±0.010 in.
Max. Shaft Eccentricity Plus Radial Play (1) 0.010 in.
Max. Acceleration 100000 rad/sec²
Weight 2.5 oz.
Moment of Inertia 0.0001 oz-in-s²
Max. Shaft Length 0.60  to .80 in. from mounting surface
Technical Bulletin TB1001 - Shaft and Bore Tolerances Download

(1)  Any non-zero shaft radial play will result in angular errors beyond the specified limits.

  • Specifications apply over entire operating temperature range.
  • Typical values are specified at Vcc = 12V and 25C.
ParameterMin.Typ.Max.Units
Supply Voltage 7.5 12 16 V
Supply Current @ 12V supply
  Active
  Sleep


14
2.5

18.5

mA
Analog Output Impedance   51   Ohms
Zero Scale Analog Voltage 0 2 12 mV
Full Scale Analog Voltage 4.066 4.095 4.124 V
Output Noise (Analog version)   10   mVrms
Differential Nonlinearity (Analog version) -1.0   1.0 LSB
Integral Nonlinearity (Analog version) -1.0   1.0 LSB
Absolute Accuracy (SEI interface version)   0.18 0.25 Degrees
Angle tracking speed
  Single-turn mode
  Multi-turn mode

3600
1800

rpm
 Position Update Rate (1)      7 msec.

(1) The internal microcontroller takes a snapshot of the disk every 7 msec. and stores the position in memory. It responds immediately to a "report position request" by sending this value which is always the most current position.

 Parameter Default value
 Volatile?
 SEI address
 2  Non-volatile
 Resolution  3600  Non-volatile
 Origin offset  0  Non-volatile
 Baud rate  9600  Volatile
 Mode  0 (1)

(1) Mode is always restored from non-volatile EEPROM on power-up. However, there are separate SEI commands for setting the RAM copy only, or both the RAM copy and the non-volatile EEPROM copy.


The analog version of the A2K has a 12-bit DAC on the output which feeds to 2 lines that are otherwise used for the BUSY handshaking pair. This DAC has a full range of 0 to 4.095 volts which is 1 millivolt per bit. The value which the internal microcontroller sends to that DAC is the same as the digital value that it sends to the host. Since the resolution (which represents the number of codes per revolution) is field programmable, the range of the DAC will also follow that setup. The default resolution is 3600 codes per revolution which yields 1 count per tenth of a degree. This makes the DAC output equal to 1 millivolt per tenth of a degree or 0 to 3.599 volts. When the DAC needs to have the full range to 4.095 volts, the single turn resolution should be set to 4096. This is easily done with the available software which runs on a PC.  Cable CA-MD6A-SS-MD6-6FT and either the SEI-USB or the AD2B adapter are needed to interface the A2K analog version to a USB port or RS-232 serial COM port.

Please Note: The BUSY handshaking lines are replaced by the analog output option. This means that only one device will be able to be connected to the SEI bus when using the analog output option.

PinDescription
1 Ground
2 Busy+
Analog+
3 Busy-
Analog-
4 Power
5 DataL
6 DataH

Each A2K is shipped with all encoder components, centering tool, hex wrench, and two #4-40 x 1" cover screws. The following part numbers are provided if spares are needed.

1. Centering Tool

Part #: CTOOL - (Shaft Diameter)
Description: This reusable tool provides a simple method for accurately centering the A2K base onto the shaft.

Instructions: When mounting encoder base, slide centering tool down shaft until it slips into centering hole of encoder base. Tighten mounting screws, then remove centering tool.

2. Hex Tool

Part #: HEXD-050
Description: Hex driver, 0.050" flat-to-flat for #3-48 or #4-48 set screws.

Part #: HEXW-050
Description:  Hex wrench, .050" flat-to-flat for #3-48 or #4-48 set screws.

3. Spacer Tool

Part #: SPACER-A2

Assembly instructions for the A2K were affected by Product Change Notification PCN-4537-A2-HD25A, released on 8/18/2014. Please select the appropriate assembly instructions from the options below. For more information, download PCN-4537-A2-HD25A.

A2K Assembly Instructions (affected by PCN-4537-A2-HD25A)

Download the A2K Assembly Instructions



A2K Assembly Instructions (not affected by PCN-4537-A2-HD25A)

1. Base Mounting

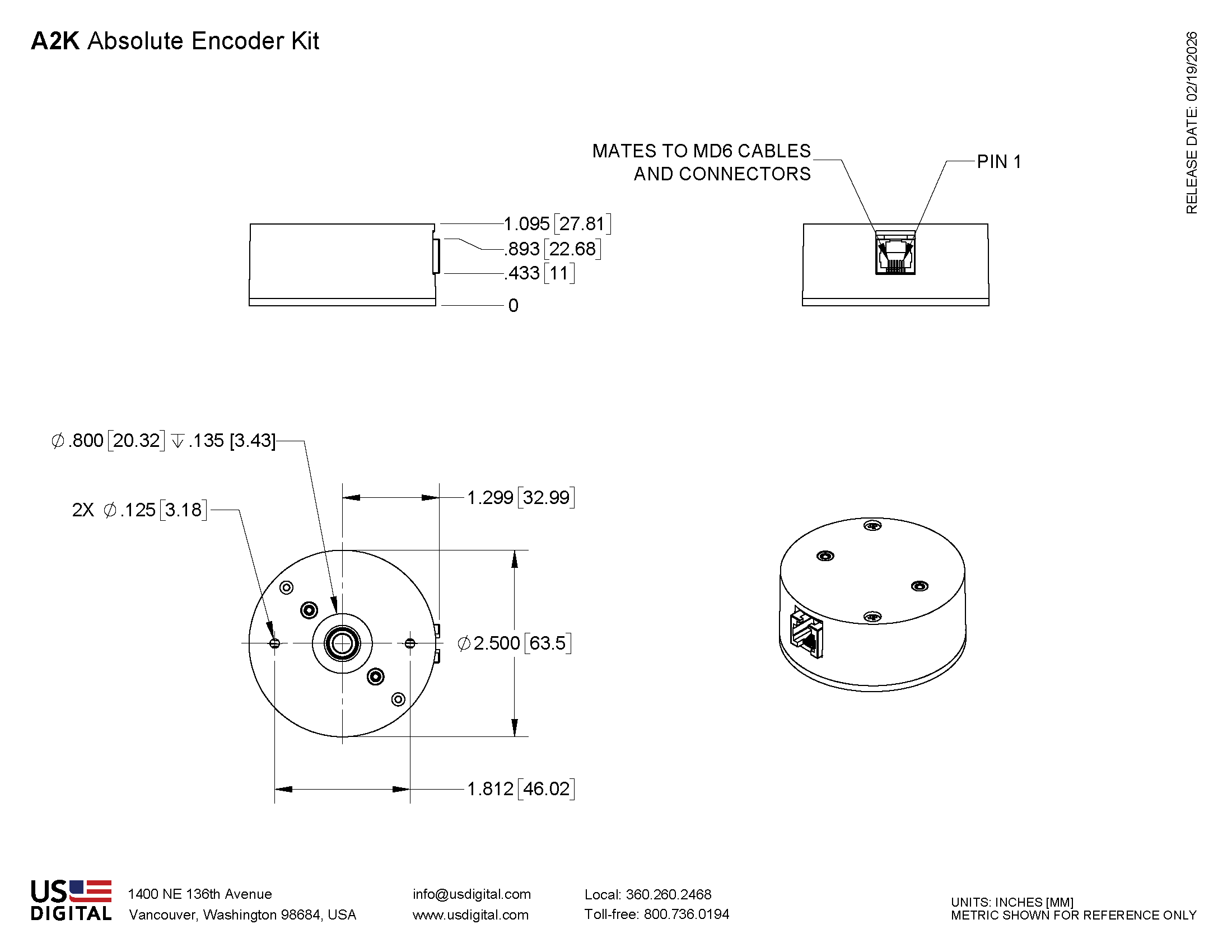

Secure base by inserting screws through holes on the 1.812" bolt circle. Holes in base are designed for #4 screws. Use the centering tool to align base with existing shaft.

2. Spacer Installation

Place spacer tool on circuit board as shown. Position hub/disk assembly above shaft as shown. Slip over shaft and press down until hub and spacer tool bottom out against base.

3. Tightening Set Screw

Press the hub disk against the spacer tool and tighten the set screw with the hex wrench provided. The set screw should be snug, but do not overtighten. Remove the spacer tool.

4. Cover Installation

Important: Cover must be oriented as shown. Because cover plugs into the base, use caution during installation. The posts on the base are two different lengths. Match the cover to mate with the proper post. Connector pins can be damaged if not lined up properly. Secure with two 4-40 X 1" pan head screws provided.

Title Date Description Download
Hub Set Screw Production Change - PCN 5367 7/20/2015 As part of our ongoing continuous improvement efforts, US Digital is implementing a change related to the production of our 5/16" (.313), 8mm (.315), 3/8" (.375), and 10mm (.394) HUBDISK assemblies. We are adding a low strength threadlocker to the set screw during our assembly process to assist in securing the set screw in the hub during transportation. This will aid in the set screw retention of these specific hub sizes; ensuring the retention is sufficient and avoid the potential of them backing out of the hub assembly during transit. This change does not affect form, fit or function. Download
A2/HD25A Product Lines Detector Upgrade 8/18/2014 As part of our ongoing continuous improvement efforts, US Digital is updating our A2 and HD25A product lines design by utilizing surface mount devices for the detector and LED. Previously these were through hole devices. This change is transparent with the exception of minor cosmetic differences for the A2 kit style encoder, and Spacer Tool used in kit assembly process. Download

Product Description

Restriction of Hazardous Substances

The A2K optical encoder is a 12 bit absolute rotary position sensor kit style encoder which reports a shaft angle within a single 360 degree rotation of a shaft. The kit style A2K allows the encoder to be easily assembled onto an existing shaft and bearing assembly. Unlike incremental, sometimes called relative, style encoders the A2K provides true (absolute) shaft position eliminating the need for a home or zero cycle after a supply voltage power cycle. The A2K communicates over a RS 485 style serial bus utilizing US Digital's SEI (Serial Encoder Interface) which allows for simple, quick and convenient networking of multiple SEI devices on a single network. PLCs, motion controllers and computers can also reside on the SEI bus as well by use of US Digital's SEI to USB interface device. For complete information about the SEI bus please refer to the SEI Communications Protocol webpage.

The A2K is also available with an optional analog output. The analog output option provides a maximum voltage range of 0 to 4.095 volts with 12 bit resolution. The output voltage may be easily scaled by simple SEI commands to provide other maximum voltage levels as well. From the factory the analog output voltage is set to 0 to 3.599 VDC range. Please note that with the A2K analog output option only one device may reside on a SEI bus.

Product Notes
  • Cables and connectors are not included and must be ordered separately.
  • US Digital warrants its products against defects in materials and workmanship for two years. See complete warranty for details.

Cable/connector assembly not included and must be ordered separately.
