H6 Ball Bearing Optical Shaft Encoder

H6 Webproduct 04 Product Photo

H6 Features

  • Ball-bearing option tracks to 10,000 RPM
  • 2-channel quadrature with optional index
  • Multiple Output Drive Options
  • 64 to 10,000 cycles per revolution (CPR)
  • 256 to 40,000 pulses per revolution (PPR)
  • Wide operating temperature

See more info below

Configure the H6

H6 Product Description

Restriction of Hazardous Substances

The H6 series ball-bearing optical shaft encoder has a molded plastic, glass-filled enclosure, which utilizes either a 5-pin or 10-pin latching connector. This non-contacting rotary to digital converter is designed to provide digital feedback information.

The H6 is fully assembled with a brass shaft, two 1/4 in. ID by 1/2 in. OD ball bearings and a mounting plate. The mounting plate comes with 4 mounting holes for #2 - #4 size screws.

A secure connection to the H5 Series encoder is made through a 5-pin (single-ended versions) or 10-pin (differential or high-voltage versions) latching connector. The mating connectors are available from US Digital with several cable options and lengths.

The internal differential line driver (26C31) can source and sink 20mA at TTL levels for differential versions. The recommended receiver is the industry-standard 26C32. Maximum noise immunity is achieved when the differential receiver is terminated with a 150 Ω resistor in series with a .0047 μF capacitor placed across each differential pair. The capacitor conserves power; otherwise, power consumption would increase by approximately 20mA per pair or 60mA for 3 pairs.

Product Specifications

ENVIRONMENTAL

Parameter Value Units
Operating Temperature, CPR < 2000 -40 to 100 C
Operating Temperature, CPR ≥ 2000 -25 to 100 C
Electrostatic Discharge
Single-ended (S option), IEC 61000-4-2
Differential (D, L option), Human Body Model
High-Voltage, Open-collector (H, C option), IEC 61000-4-2
± 4
± 2
± 4		 kV
Vibration (10Hz to 2kHz, sinusoidal) 20 G
Shock (6 milliseconds, half-sine) 75 G

MECHANICAL

PARAMETER DIMENSION / UNITS
Max. Acceleration 100000 rad/sec²
Max. Shaft Speed (mechanical) 10000 rpm (1)
Max. Shaft Torque 0.05 in-oz
Max. Shaft Loading 2 lbs.
Bearing Life life in millions of revs. = (90/P)³
where P = radial load in pounds.
Weight:
  Single-ended
  Differential
  High-Voltage, Open-Collector (H, C option)
3.02 oz.
3.15 oz.
3.15 oz.
Max. Shaft Runout 0.006 in. T.I.R.
Mounting Plate Screw Torque (#2-56) 2-3
Moment of Inertia 0.001 oz-in-s²
Technical Bulletin TB1001 - Shaft and Bore Tolerances Download

(1) The maximum speed due to electrical considerations is dependent on the CPR. See the EM1 and EM2 product pages.

PHASE RELATIONSHIP

B leads A for clockwise shaft rotation, and A leads B for counterclockwise rotation when viewed from the shaft side of the encoder.

SINGLE-ENDED OPTION

  • S option provides 5V TTL compatible outputs
  • Specifications apply over the entire operating temperature range
  • Typical values are specified at Vcc = 5.0Vdc and 25°C
  • For complete details, see the EM1 and EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 4.5  5.0 5.5 V
Supply Current   27 33 mA CPR < 1000, no load
  54 62 mA CPR ≥ 1000 and < 3600, no load
  72 85 mA CPR ≥ 3600, no load
Low-level Output     0.5 V IOL = 8mA max., CPR < 3600
    0.5 mA IOL = 5mA max., CPR ≥ 3600
  0.05   mA no load, CPR < 3600
  0.25   mA no load, CPR ≥ 3600
High-level Output 2.0     V IOH = -8mA max., CPR < 3600
2.0     V IOH = -5mA max., CPR ≥ 3600
  4.8   V no load, CPR < 3600
  3.5   V no load, CPR ≥ 3600
Output Current Per Channel -8   8 mA CPR < 3600
-5   5 mA CPR ≥ 3600
Output Rise Time   110   nS CPR < 3600
  50   nS CPR ≥ 3600
Output Fall Time   35   nS CPR < 3600
  50   nS CPR ≥ 3600

DIFFERENTIAL OPTION

  • D Option provides differential line driver outputs
  • Specifications apply over the entire operating temperature range
  • Typical values are specified at Vcc = 5.0Vdc and 25°C
  • For complete details, see the EM1 and EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 4.5 5.0 5.5 V
Supply Current   29 36 mA CPR < 1000, no load
  56 65 mA CPR ≥ 1000 and < 3600, no load
  74 88 mA CPR ≥ 3600, no load
Low-level Output   0.2 0.4 V IOL = 20mA max.
High-level Output 2.4 3.4   V IOH = -20mA max.
Differential Output Rise/Fall Time     15  nS

HIGH-VOLTAGE OPTION

  • H option uses a higher supply voltage and provides both single-ended and open-collector outputs
  • Single-ended outputs are 5V TTL compatible (same as S option). See Pin-out.
  • Specifications apply over the entire operating temperature range
  • For complete details, see the EM1 or EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 7.5   30.0 V
Supply Current, 24V power   8 10 mA CPR < 500, no load
  16 19 mA CPR ≥ 500 and < 2000, no load
  22 25 mA CPR ≥ 2000, no load
Open Collector "On" Resistance   2   ohms
Open Collector Sink Current     200 mA
Output Low Voltage     0.4 V 200 mA sink current
Open Collector Pullup Voltage     50 V

PIN-OUT

5-PIN SINGLE-ENDED 10-PIN DIFFERENTIAL
Pin Description Pin Description
1 Ground 1 Ground
2 Index 2 Ground
3 A channel 3 Index-
4 +5VDC power 4 Index+
5 B channel 5 A- channel
    6 A+ channel
    7 +5VDC power
    8 +5VDC power
    9 B- channel
    10 B+ channel



10-PIN HIGH-VOLTAGE
H OPTION (2)
Pin Description
1 Ground
2 Ground
3 Index- (open collector)
4 Index+ (single-ended)
5 A- channel (open collector)
6 A+ channel (single-ended)
7 7.5-30V power
8 7.5-30V power
9 B- channel (open collector)
10 B+ channel (single-ended)



(1) 5-pin single-ended mating connector is CON-FC5.
(2) 10-pin differential mating connector is CON-FC10.

PRODUCT CHANGE NOTIFICATIONS

Title Date Description Download
Marketing/Insert - PCN 7058 11/04/2020 As part of our ongoing continuous improvement efforts, improvements are being incorporated into the E6, S6 and H6 series of Optical Encoders, including both single-end and differential output versions. Download
Laser Marking - PCN 5253 6/17/2015 As part of our ongoing continuous improvement efforts, US Digital is changing the labeling/marking method for our E3, E6, H3, H6, S1, S2 and S6 products. Download
EM1 LED Die - PCN 1016 2/7/2013 As part of US Digital's continual assurance of supply strategy, we have qualified additional sources for our LED die used in our EM1 encoder module, which in turn impacts all of the following products:

EM1, E2, E3, E5, E6, H1, H15, H3, H5, H6, HB5M, HB6M, HD25, PE, S1, S2, S5, S6, T5 and T6

The device specification will remain the same, i.e. there will be no change to form, fit or function of the product(s) as specified by US Digital. The appropriate quality and reliability testing has been performed on representative products to ensure normal parametric distribution, consistent with US Digital's quality and reliability standards.		 Download

Additional Information

Product Notes

  • Cables and connectors are not included and must be ordered separately.
  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.

Datasheets

Related

3D Model Downloads

Please configure your product first to download a 3D model.
(Note: The formats below will become links if there are 3D models available.)

    • SolidWorks Format
    • IGES Format
    • Parasolid Format
    • STEP Format

    Product Configurator

    TO VIEW PRICING CHOOSE EITHER OPTION 1 OR 2 BELOW.

    Questions? Contact our support team.

    Option 1: Enter the Product Part Number

    Already have your part number (e.g., E5-5000-394-IE-S-D-D-3)? Enter it in the following field.

    Option 2: Build your Product

    Customize your product step-by-step. Need help? Our support team is here to help.

    We recommend enabling Javascript when using the product configurator.

    Saved Configurations ( ):

    + Add this configuration to your list
    Configurations currently in your list (0)
    GO TO LIST

    Feedback

    US Digital's mission is a commitment to quality and constant improvement. If you find an error to a product on this page, please let us know!

    Save Your Configuration

    Easily keep track of your custom part numbers

    What is this feature?

    While configuring your encoder, you can save your custom part number at any stage. This helps you keep track of multiple configurations without needing to start over or write anything down.

    How does it work?
    • Click “Add This Configuration to Your List” after selecting your options.
    • Your saved part number will appear in a mini list below the configurator.
    • The list is stored locally in your browser and persists across product pages.
    • Enter a quantity to view default pricing.
    What can you do with saved configurations?

    When you're ready, visit the Saved Configurations List page to:

    • Review all saved part numbers
    • Fill out a form to send your selections to US Digital Customer Service
    • Receive follow-up to complete your order or get support
    Why use it?
    • Save time by avoiding repeated configurations
    • Compare multiple part numbers side-by-side
    • Simplify communication with our support team

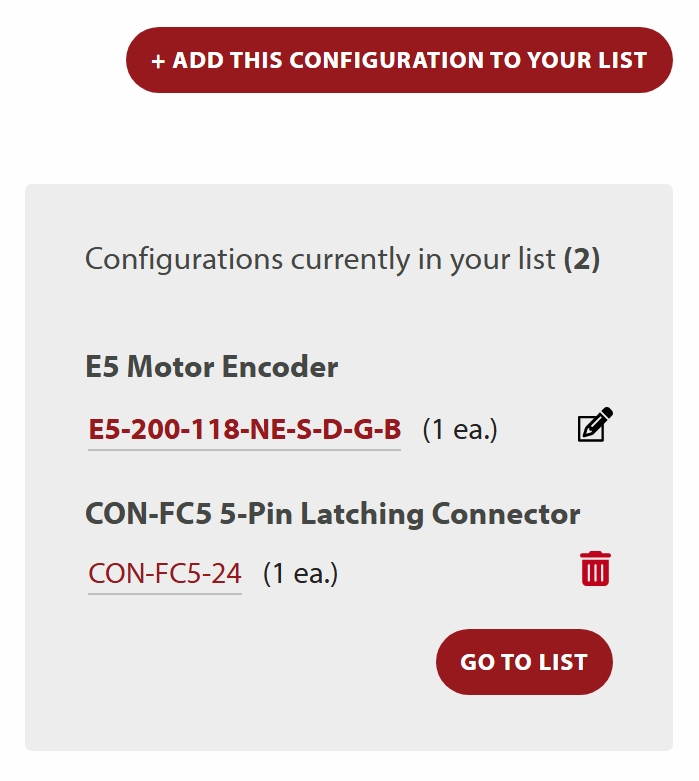

    Saved Configurations Example Saved configuration part numbers screenshot
