H1 Ball Bearing Optical Shaft Encoder

1 / 4
  • h1_webproduct_01_2.jpg
  • h1_webproduct_02_2.jpg
  • h1_webproduct_03_2.jpg
  • h1_webproduct_04_2.jpg


  • Ball bearing option tracks to 10,000 RPM
  • 2-channel quadrature, TTL squarewave outputs
  • 3rd channel index option available on some resolutions
  • 32 to 5,000 cycles per revolution (CPR)
  • 128 to 20,000 pulses per revolution (PPR)
  • Wide operating temperature
  • Single +5VDC supply

The H1 series ball bearing optical shaft encoder has a molded plastic, glass-filled enclosure, which utilizes a 5-pin standard connector. This non-contacting rotary to digital converter is designed to provide digital...

Read more

Product Specifications

Operating Temperature, CPR < 2000 -40 to 100 C
Operating Temperature, CPR ≥ 2000 -25 to 100 C
Vibration (5Hz to 2kHz) 20 G
Electrostatic Discharge, IEC 61000-4-2
± 4
Max. Acceleration 100000 rad/sec²
Max. Shaft Speed 10000 RPM max. continuous
Max. Shaft Torque 0.05 in-oz
Max. Shaft Loading 2 lbs.
Bearing Life life in millions of revs = (90/P)³
where P = radial load in pounds
Weight 1.49 oz.
Max. Shaft Total Indicated Runout 0.006 T.I.R. max.
Moment of Inertia 0.001 oz-in-s²
Technical Bulletin TB1001 - Shaft and Bore Tolerances Download

 B leads A for clockwise shaft rotation, and A leads B for counterclockwise rotation viewed from the shaft side of the encoder (see the EM1 page).

  • Specifications apply over entire operating temperature range.
  • Typical values are specified at Vcc = 5.0Vdc and 25°C.
  • For complete details, see the EM1 or EM2 product pages.
Supply Voltage 4.5  5.0 5.5 V
Supply Current   27 33 mA CPR < 500, no load
  54 62 mA CPR ≥ 500 and < 2000, no load
  72 85 mA CPR ≥ 2000, no load
Low-level Output     0.5 V IOL = 8mA max., CPR < 2000
    0.5 V IOL = 5mA max., CPR ≥ 2000
  0.25   V no load, CPR ≥ 2000
High-level Output 2.0     V IOH = -8mA max. and CPR < 2000
2.0     V IOH = -5mA max. and CPR ≥ 2000
  4.8   V no load and CPR < 2000
  3.5   V no load and CPR ≥ 2000
Output Current Per Channel -8   8 mA CPR < 2000
-5   5 mA CPR ≥ 2000
Output Rise Time   110   nS CPR < 2000
  50   nS CPR ≥ 2000, ± 5mA load
Output Fall Time   100   nS CPR < 2000
  50   nS CPR ≥ 2000, ± 5mA load
1 Ground
2 Index
3 A channel
4 +5VDC power
5 B channel
Title Date Description Download
H1 Mold Update - PCN 5259 4/21/2015 As part of our ongoing continuous improvement efforts, and in order to enhance both function and appearance of the H1 product line, multiple improvements are being incorporated into a plastic component redesign. Download
EM1 & EM2 Update - PCN 4199 1/14/2014 Based on our continuous process improvement program, US Digital is changing the current marking method for our EM1 and EM2 encoder modules to a serialization method. This change will allow for each module to have a unique code; the current marking method is based on a date code system that includes all encoder modules produced within a specific week / year. The serialization system will be based on a hexadecimal system. Download
EOL Sealed Housing Option - PCN 1021 4/11/2013 This PCN is a formal notification that US Digital is discontinuing the Sealed Housing option for the following products:
  • A2 Absolute Optical Encoder
  • A2T Absolute Optical Inclinometer
  • H1 Ball Bearing Optical Shaft Encoder
  • H3 Ball Bearing Optical Shaft Encoder
  • S1 Optical Shaft Encoder
  • S2 Optical Kit Encoder
The Sealed Housing option provides the encoder with low level capability of surviving in moisture environments, however the encoder is NOT water proof or intended to be used in applications where this is required.
EM1 LED Die - PCN 1016 2/7/2013 As part of US Digital's continual assurance of supply strategy, we have qualified additional sources for our LED die used in our EM1 encoder module, which in turn impacts all of the following products:

EM1, E2, E3, E5, E6, H1, H15, H3, H5, H6, HB5M, HB6M, HD25, PE, S1, S2, S5, S6, T5 and T6

The device specification will remain the same, i.e. there will be no change to form, fit or function of the product(s) as specified by US Digital. The appropriate quality and reliability testing has been performed on representative products to ensure normal parametric distribution, consistent with US Digital's quality and reliability standards.

Product Description

Restriction of Hazardous Substances

The H1 series ball bearing optical shaft encoder has a molded plastic, glass-filled enclosure, which utilizes a 5-pin standard connector. This non-contacting rotary to digital converter is designed to provide digital feedback information.

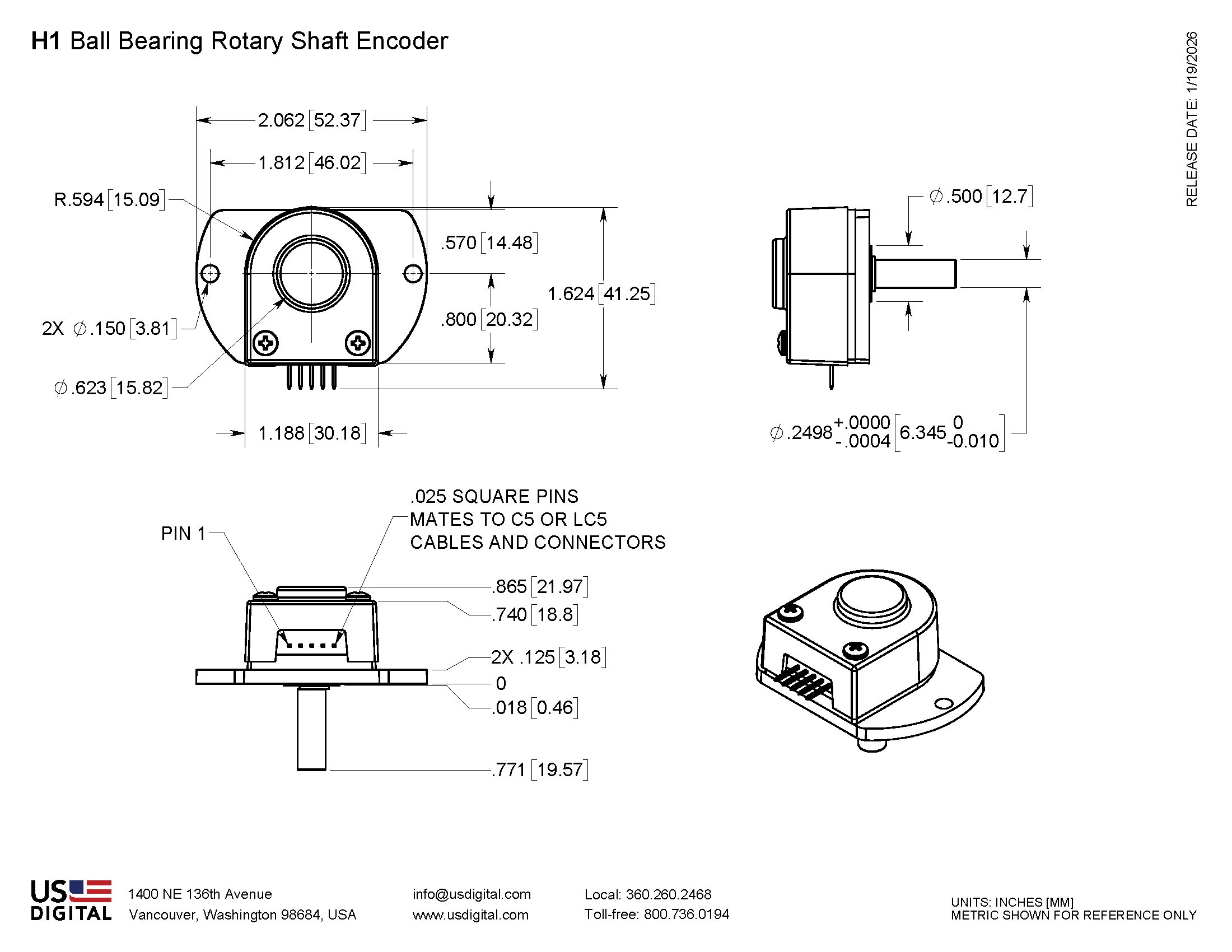

The H1 is fully assembled with a brass shaft, two 1/4" ID by 1/2" OD ball bearings and a mounting plate. The mounting plate comes with two mounting holes for screws #4 or smaller.

The H1 is normally designed for applications of 10 feet or less. For longer cable lengths, adding a PC4 / PC5 differential line driver is recommended.

A connection to the H1 series encoder is made through a 5-pin standard connector (sold separately). The mating connectors are available from US Digital® with several cable options and lengths.

Product Notes
  • Cables and connectors are not included and must be ordered separately.
  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.

Cable/connector assembly not included and must be ordered separately.
